Description
Penetration-Free Standing Seam Metal Roof Attachment for Solar PV Systems

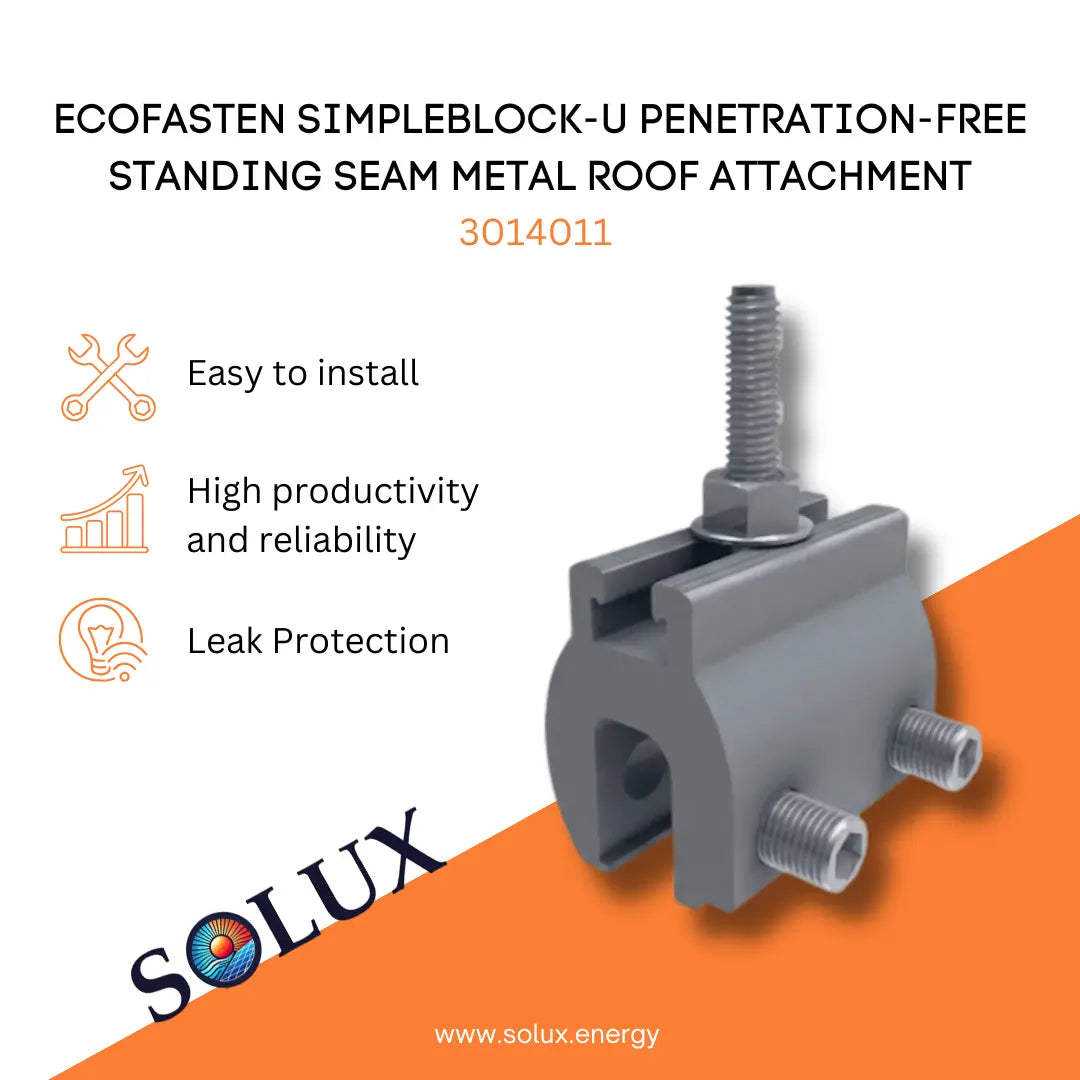

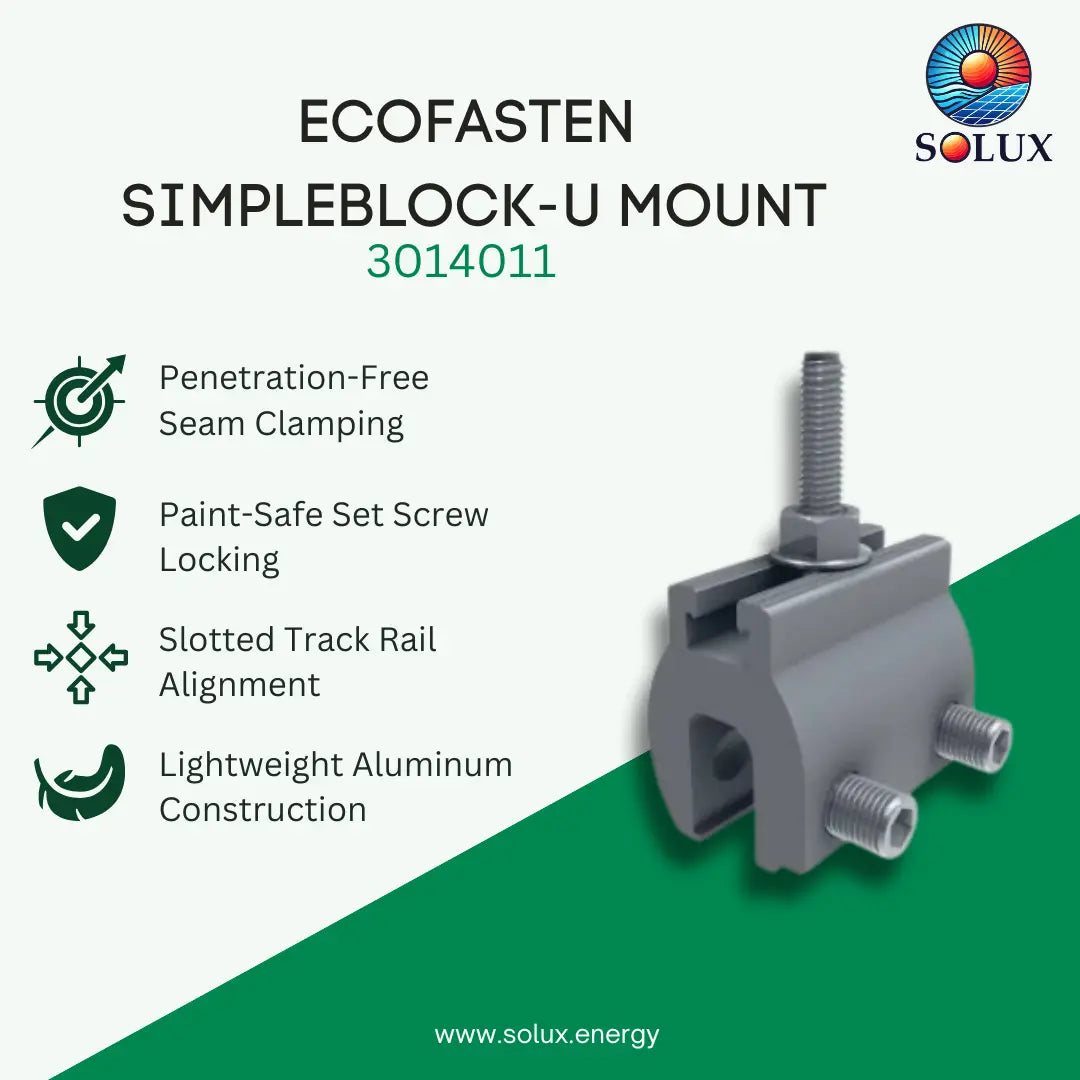

The EcoFasten SimpleBlock-U is a solid aluminum clamp that pinches onto vertical roof seams so you never have to drill holes. The stainless-steel set screws grip the metal tight without scratching the paint or damaging the roof’s seal. A slotted track on top lets you slide your rails back and forth to keep your rows perfectly straight, even if the seams are slightly crooked. These blocks are small and light, making it easy to carry a box of 50 in one hand while you work.
Technical Specifications:
- Product Name: SimpleBlock®-U
- Part Number: 3014011
- Material: Aluminum
- Roof Compatibility: Vertical double-lock standing seam metal roofs
- Attachment Type: Clamp-to-seam
- Adjustability: North–South slotting
- Standards: UL 2703 conforming system
- Weight: Approx. 0.37 lb (0.17 kg)
- Box Quantity: 50 units
- Application: Rail-based solar PV mounting systems
-
Resources

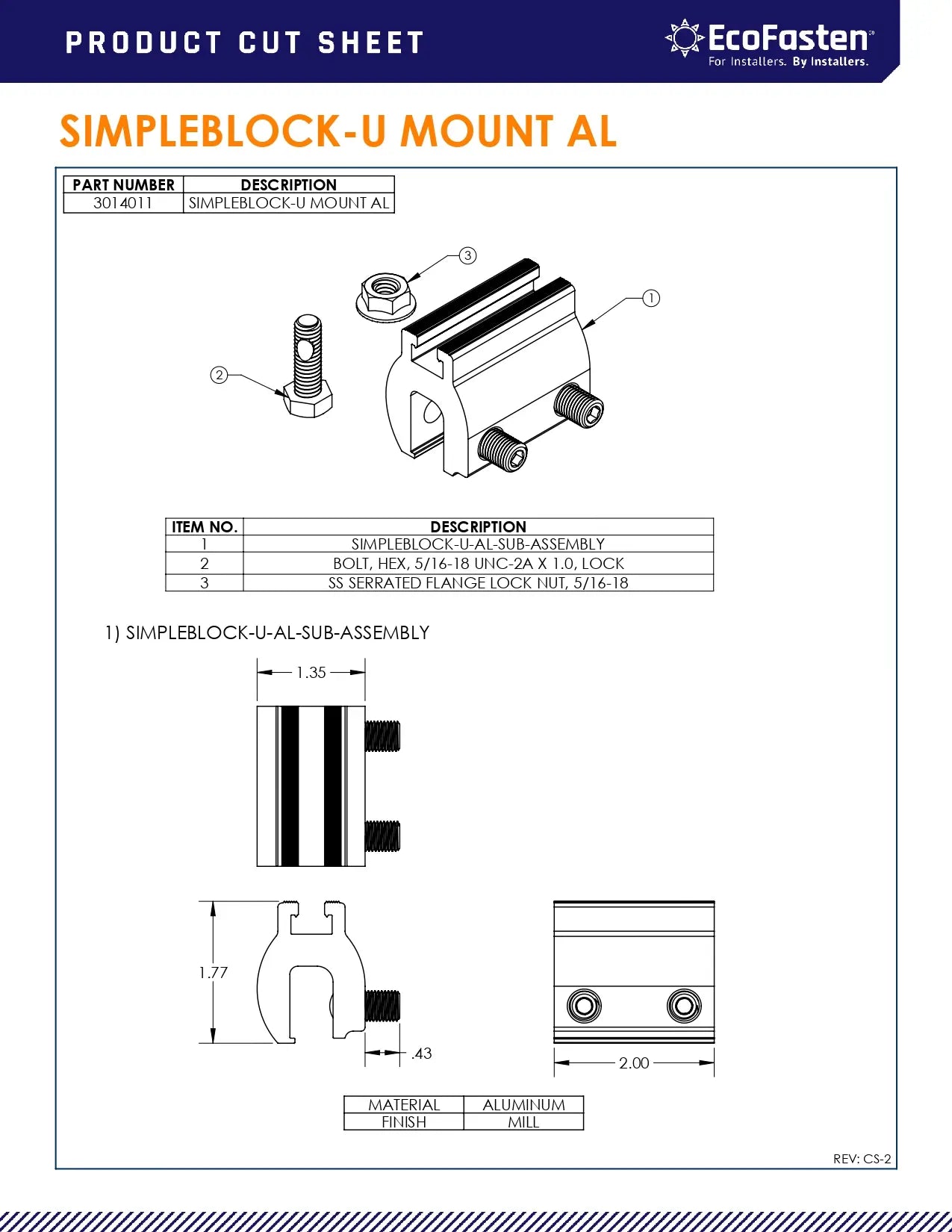

Datasheet
