EcoFasten 3014010 CorruSlide Solar Panel Mount for Corrugated Metal Roofs

EcoFasten 3014010 CorruSlide Solar Panel Mount for Corrugated Metal Roofs

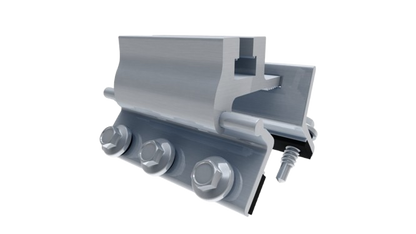

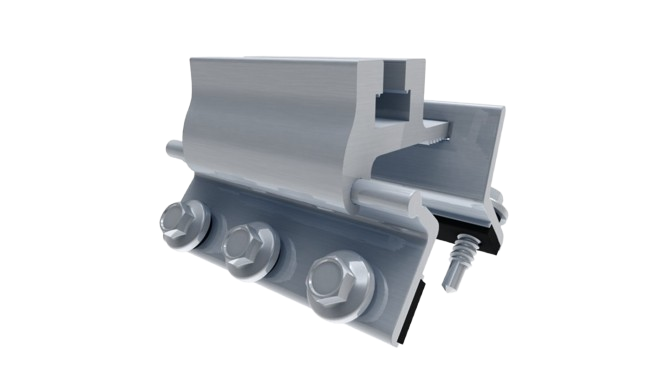

The EcoFasten CorruSlide is a hinged aluminum mount that adjusts to fit the specific wave of any corrugated metal roof. By attaching to the high ribs instead of the low valleys, it keeps your screw holes high and dry away from flowing rainwater. The self-tapping screws and thick rubber gaskets let you skip pre-drilling and create a tight seal that stops leaks. It is a simple, lightweight part that lets your crew work faster without needing extra sealants or drill bits.

Technical Specifications:

• Product Name: CorruSlide Hinged Mount
• Part Number: 3014010
• Material: Aluminum (Mill Finish)
• Roof Type: Corrugated metal roofs
• Adjustability: North–South & East–West
• Sealing: EPDM gasket tape + EPDM washer screws
• Weight: Approx. 0.487 lb (0.22 kg)
• Box Quantity: 50 units
• Application: Solar PV mounting and racking attachment systems
