SMA 3-172-1500-2-21 Sunny Highpower PEAK3 (172-US-21) 172KVA 660VAC String Inverter (Made to order, 4-6 month lead time)

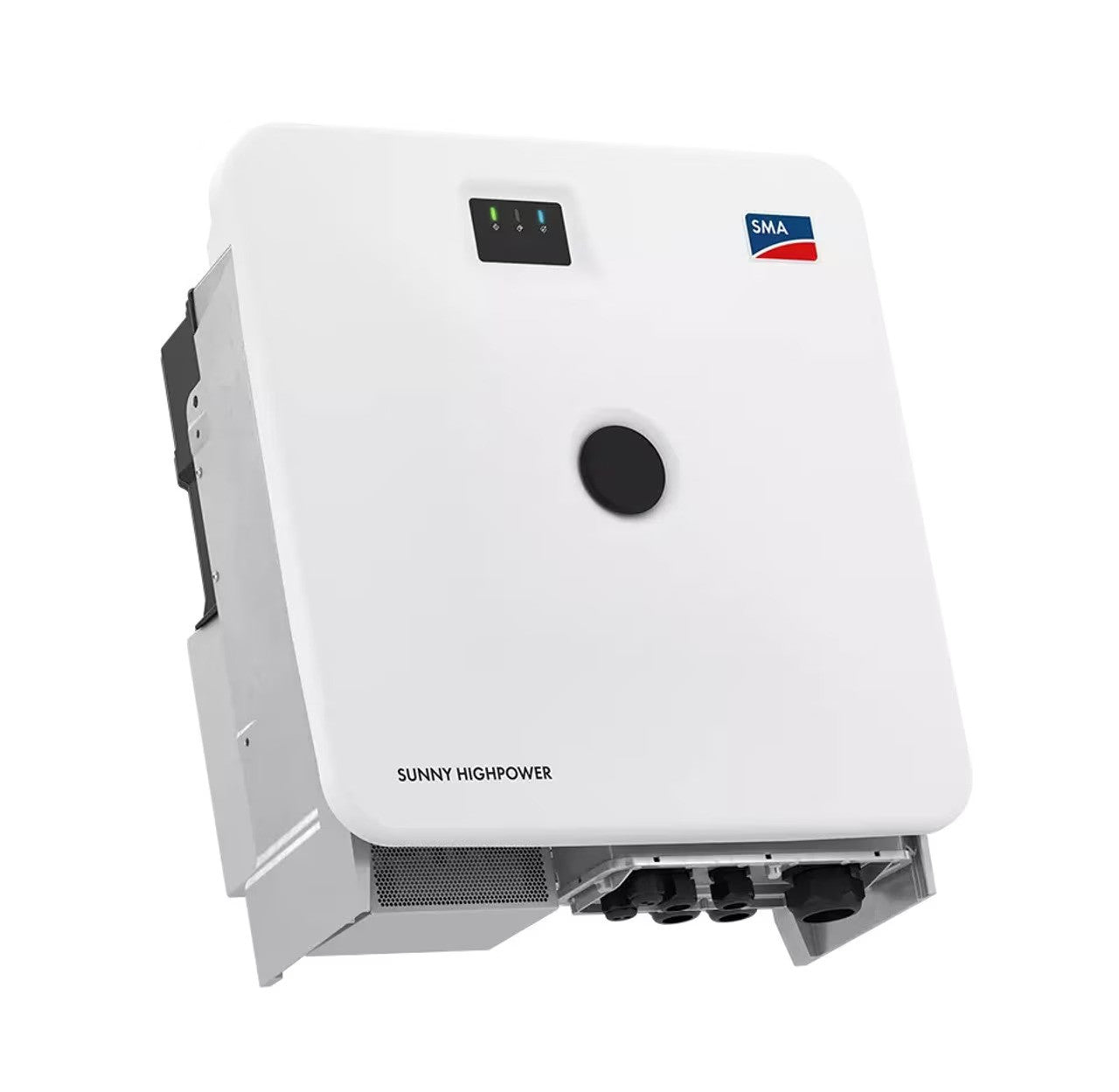

SMA Sunny Highpower PEAK3 172kW Solar Inverter (SHP 172-US-21)

The SMA Sunny Highpower PEAK3 (Model: SHP 172-US-21) is a commercial-grade solar inverter built to handle large 3-phase solar power systems. It converts up to 1,500 Volts of DC power from your solar panels into 660 Volts of usable AC electricity, using smart fan-cooling technology to deliver 99.1% efficiency even in harsh outdoor heat.

The SMA PEAK3 converts large amounts of solar power (172 kW) into three-phase electricity for commercial buildings and large ground-mount systems while running at an industry-leading 99.1% efficiency. Built for long-term durability with a 25-year design life, it uses smart internal cooling fans to keep the system running safely at full output even on hot summer days.

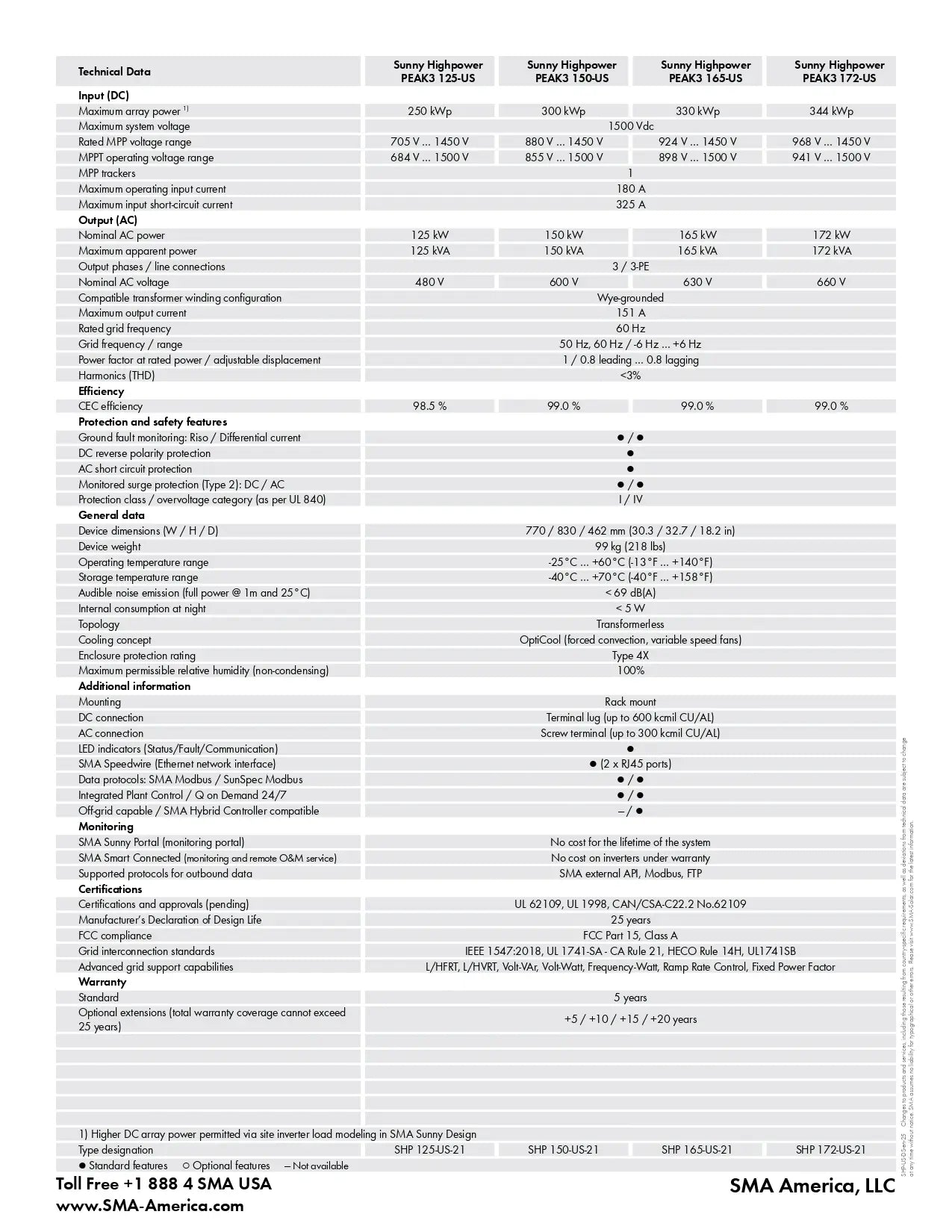

Specifications:

• Model: SHP 172-US-21
• Rated power: 172 kW
• AC voltage: 660 VAC
• Phase: 3-phase
• DC voltage: 1,500 VDC
• Type: Utility-scale / commercial string inverter
• Maximum efficiency: 99.1%
