S-5! ProteaBracket Aluminum for Metal Trapezoidal Ribs

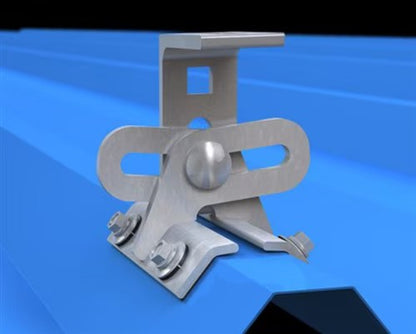

The S-5! ProteaBracket-AL (SKU: 260-0588) mounts solar racking systems directly onto trapezoidal metal roofs
Made from strong, rust-resistant aluminum, it is 34% lighter than steel options to cut down on shipping costs. Each bracket comes pre-assembled with an adjustable L-Flange, attachment bolt, and 4 stainless steel self-tapping screws. A built-in peel-and-stick adhesive bottom keeps the bracket from sliding during installation, making roof alignment simple and quick.
- SKU: 260-0588
- Manufacturer Part #: ProteaBracket-AL
- Item Weight: 0.395 lb
- Dimensions (LxWxH): 3 x 3 x 2.75 inches
Specifications:
- 34% lighter than similar stainless steel alternatives – saves on shipping
- Stronger L-Foot
- L-Foot allows for side-mount rails in its vertical orientation OR bottom-mount rails or PVKIT in its horizontal orientation
- Corrosion-resistant materials
- Adjustable – fits rib profiles up to 3″
- Peel-and-Stick prevents accidental shifting during installation
- Fully pre-assembled
- 4 self-piercing screws included
-
