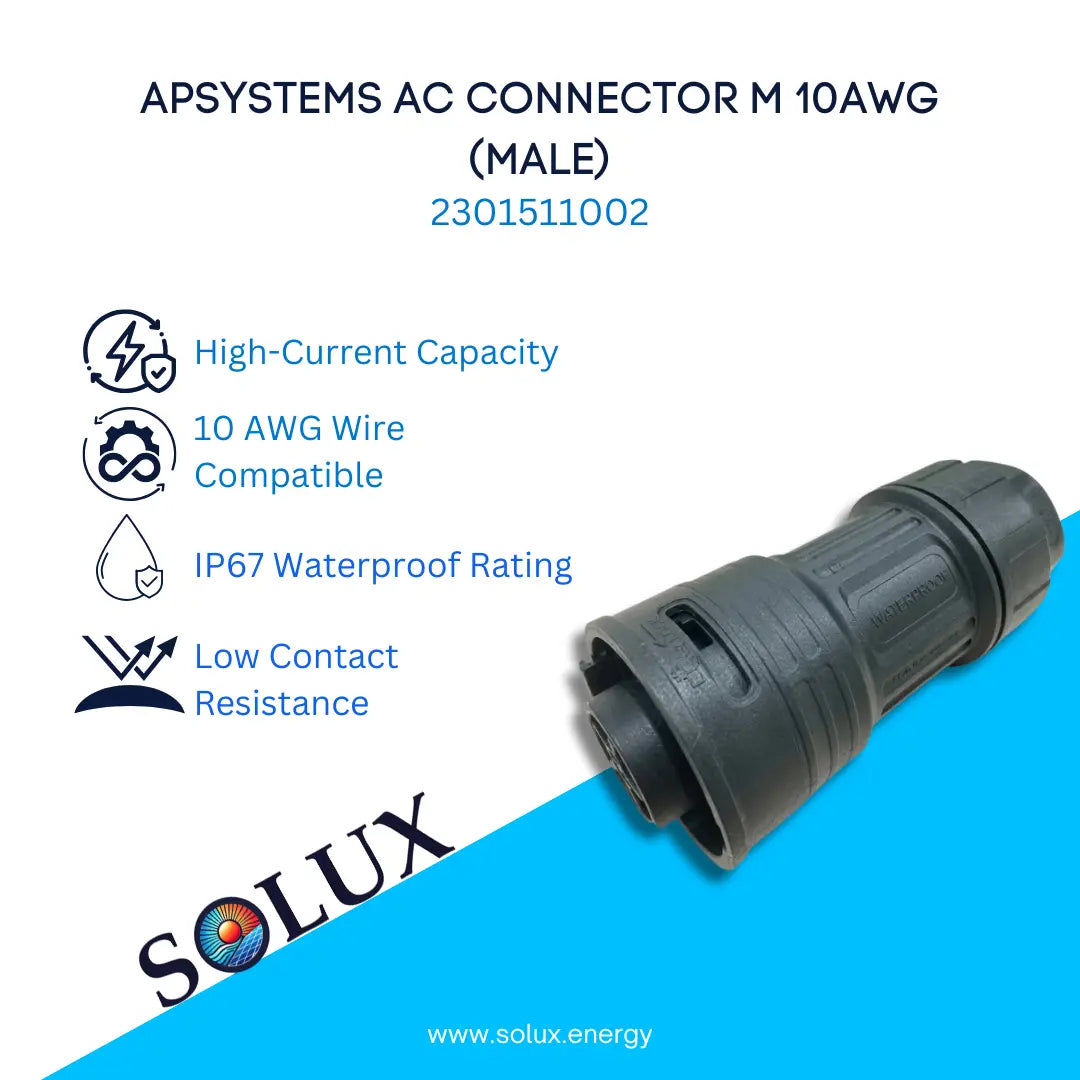

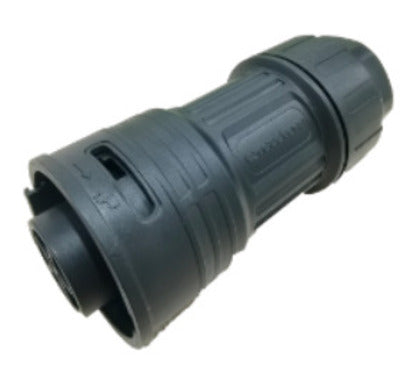

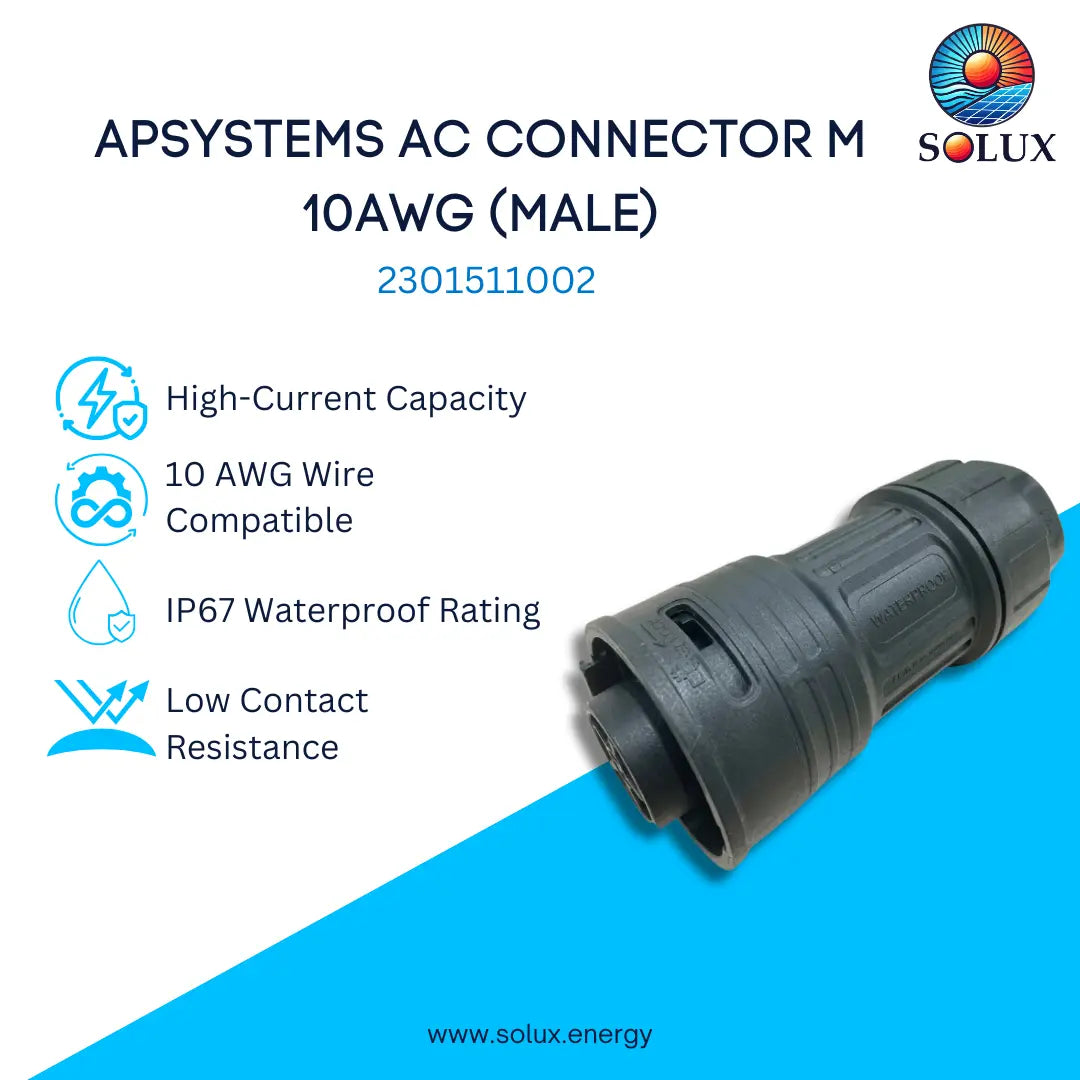

APSystems 2301511002 AC Cable Connector - Male - 40A rated for 10AWG

$13.22 USD
$13.22 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

✔️ Voltage: 120/240VAC
✔️ Features: AC trunk cable T-connector
✔️ Warranty: 10 years

It is the plug on the AC cable side that links your solar microinverter system into the home/grid wiring securely and safely.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.

Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

View Product Details

Apsmart

PRODUCT OVERVIEW

High-Current AC Connection. Field-Proven Durability.

Designed for secure and seamless AC power grid connections in residential and commercial microinverter installations. Enhance your solar system's electrical reliability with a high-grade AC power connector built for low contact resistance and easy field assembly.

The 2301511002 AC Power Connector provides dependable power transmission and robust mechanical locking for AC trunk and branch interconnections. Featuring extreme weather resilience, high IP ingress protection, and UV-stabilized housing, it ensures long-term operational integrity in demanding outdoor environments.

⚡ High Voltage & Current Rated
🔒 Secure Latching Lock
🛡️ IP67 Weatherproof
🔥 UL94-V0 Flame Retardant
☀️ UV & Ozone Resistant

ELECTRICAL & MECHANICAL SPECIFICATIONS

Connector Type AC Power Connector
Rated Voltage 250V AC / 600V AC
Rated Current 25A – 30A (Max)
Cable Conductor Range 12 AWG / 10 AWG (4.0 - 6.0 mm²)
Contact Resistance ≤ 1.0 mΩ
Contact Material Copper Alloy, Tin-Plated
Insulation Material PPO / PC (UV-Stabilized Thermoplastic)
Locking Mechanism Push-in / Snap-Locking
Flame Rating UL 94-V0

STANDARD COMPLIANCE

  • Safety & Performance: UL 6703, IEC 62852
  • Environmental: RoHS Compliant, REACH Compliant
  • Flame Rating: UL 94-V0

INSTALLATION SPECIFICATIONS

  • • Part Number: 2301511002
  • • Cable Outer Diameter Range: 8.0 mm – 12.0 mm
  • • Termination Type: Screw / Crimp Connection
  • • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
  • • Protection Rating: IP67 (Mated Waterproof)

Core Inverter Technologies

Includes standalone Microinverters and robust String Inverters tailored to match various system architectures and installation designs.

Hybrid Systems & Battery Storage

Features Hybrid Inverters (Battery-Based) and specialized Energy Storage equipment to provide reliable backup power and energy independence.

Performance Optimization

Utilizes advanced Power Optimizers to maximize individual panel output and effectively counteract shading or mismatch issues.

System Intelligence & Monitoring

Employs Inverter Communications and monitoring hardware to track your system's production and health in real time.

Precision Sensors

Incorporates specialized Sensors to deliver accurate data insights, ensuring optimal safety and grid compliance.

Hardware & Accessories

Complemented by dedicated Inverter Accessories and essential installation components to streamline and complete the entire setup.

Warranty & Certifications

Proven Endurance

warranty icon

Limited product warranty

Industry-leading coverage protecting your solar investment for the full life of the system.

UL Certified

UL listed & grid certified

Meets UL 1741 and IEEE 1547 standards for safe grid-tied operation in the US market.

Download Spec Sheet of Apsystems Ac Connector M 10Awg (Male)
