Rolls Surrette 8-HHG-21P 8VDC 230Ah Deep Cycle Battery

Rolls Surrette Battery 8 HHG 21P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards. This battery excels in both SLI (Starting, Lighting, and Ignition) and deep-cycle applications. With 21 plates per cell and a 230 Ah capacity at the 20-hour rate, it is built with dual-layer containers (polypropylene inner, high-density polyethylene outer) to withstand the most demanding environments.

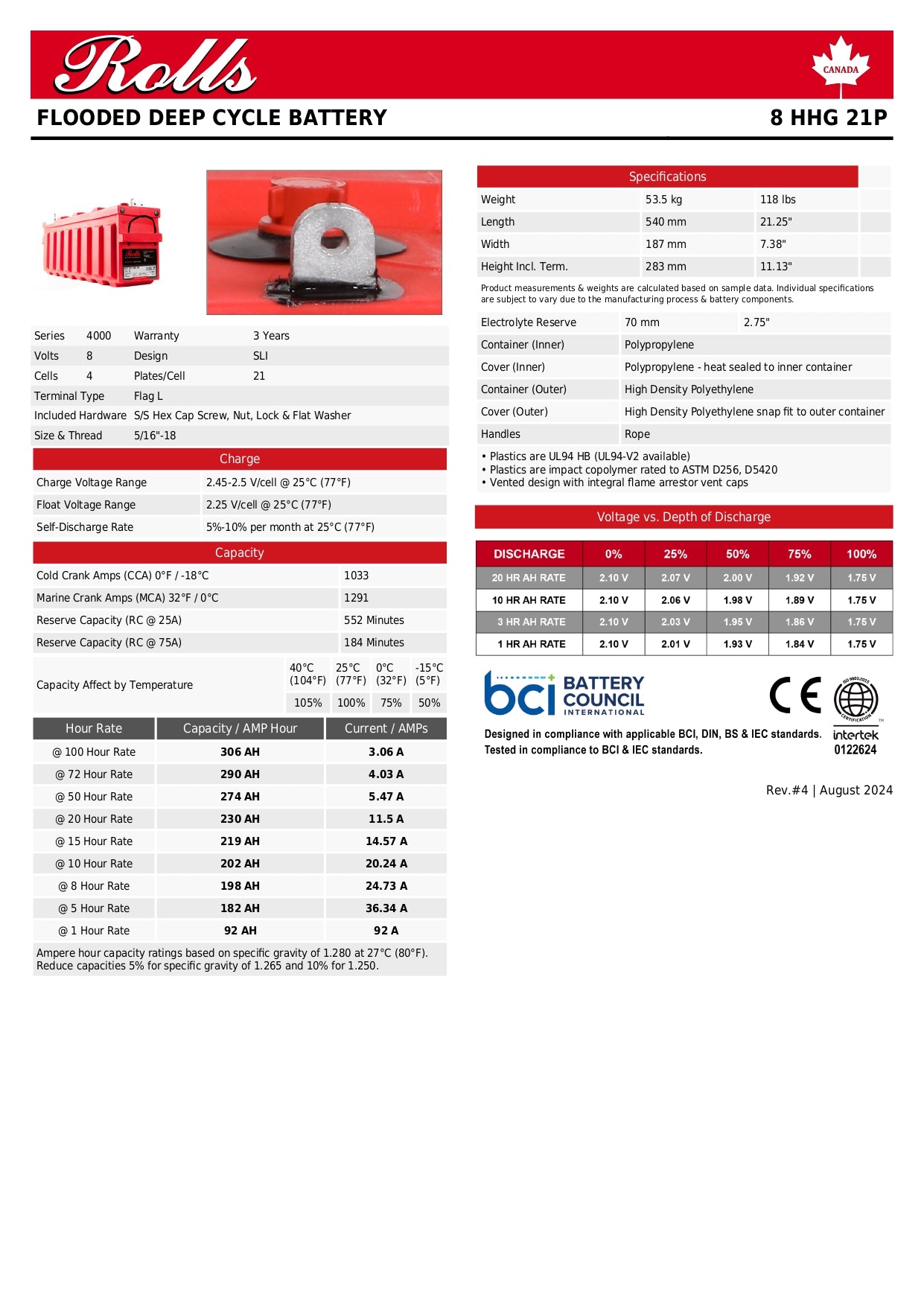

Technical Specifications:

• Weight: 53.5 kg / 118 lbs
• Length: 540 mm / 21.25"
• Width: 187 mm / 7.38"
• Height Incl. Term.: 283 mm / 11.13"
• Electrolyte Reserve: 70 mm / 2.75"
• Container (Inner): Polypropylene
• Cover (Inner): Polypropylene - heat sealed to inner container
• Container (Outer) High Density Polyethylene
• Cover (Outer): High Density Polyethylene snap fit to outer container
• Handles: Rope
• Series: 4000
• Volts: 8
• Design: SLI
• Cells: 4
• Plates/Cell : 21
• Terminal Type: Flag L
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
• Float Voltage Range 2.25 V/cell @ 25°C (77°F)
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 1033
• Marine Crank Amps (MCA) 32°F / 0°C: 1291
• Reserve Capacity (RC @ 25A): 552 Minutes
• Reserve Capacity (RC @ 75A): 184 Minutes
• Capacity AMP @ 20 Hour Rate: 230 Ah

Expand Your Bank

View our entire collection of premium batteries in the Rolls Surrette Battery Collection. Contact us for assistance.
