Rolls Surrette 8-HHG-21P 8VDC 230Ah Deep Cycle Battery

Rolls Surrette Battery 8 HHG 21P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

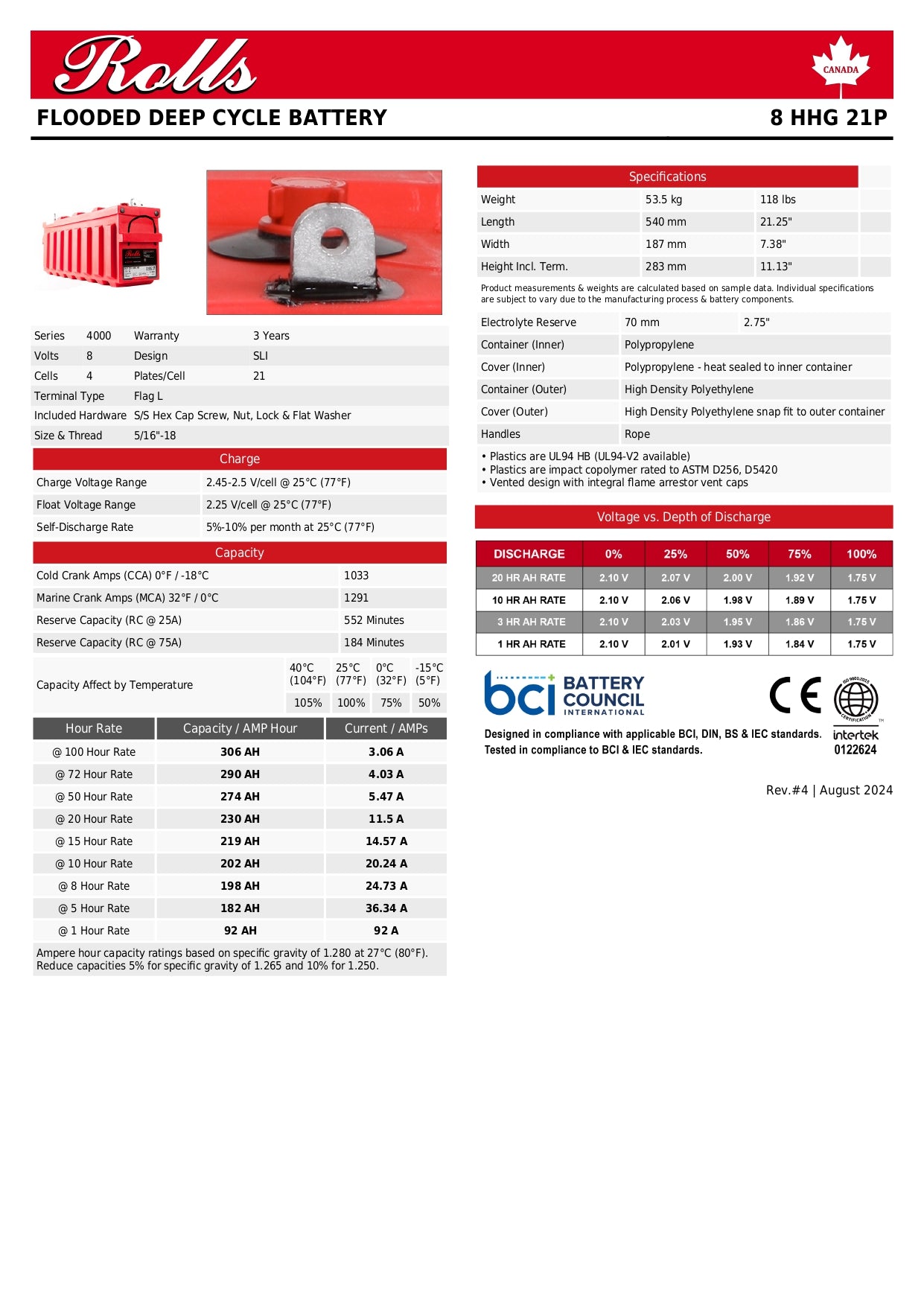

Technical Specifications:

• Weight: 53.5 kg / 118 lbs
• Length: 540 mm / 21.25"
• Width: 187 mm / 7.38"
• Height Incl. Term.: 283 mm / 11.13"
• Electrolyte Reserve: 70 mm / 2.75"
• Container (Inner): Polypropylene
• Cover (Inner): Polypropylene - heat sealed to inner container
• Container (Outer) High Density Polyethylene
• Cover (Outer): High Density Polyethylene snap fit to outer container
• Handles: Rope
• Series: 4000
• Volts: 8
• Design: SLI
• Cells: 4
• Plates/Cell : 21
• Terminal Type: Flag L
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
• Float Voltage Range 2.25 V/cell @ 25°C (77°F)
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 1033
• Marine Crank Amps (MCA) 32°F / 0°C: 1291
• Reserve Capacity (RC @ 25A): 552 Minutes
• Reserve Capacity (RC @ 75A): 184 Minutes
• Capacity AMP @ 20 Hour Rate: 230 Ah
