2:1 Optimizer, Commercial

2:1 Optimizer, Commercial

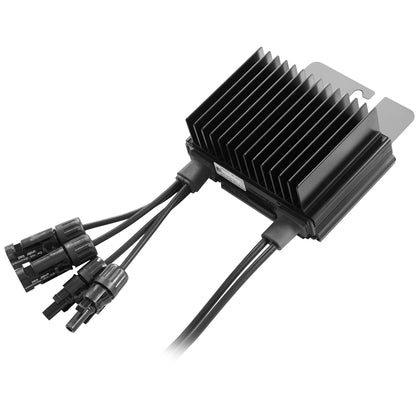

The SolarEdge P860-LONG is a commercial 2:1 DC power optimizer designed to optimize the output of two 72-cell solar modules. It performs module-level MPPT, helping maximize energy harvest and providing module-level monitoring and safety features. The “LONG” version has extended input/output cable lengths for installation flexibility.

Specifications:

• Manufacturer: SolarEdge
• Model: P860-LONG
• Type: 2:1 Commercial Power Optimizer
• Rated Power: 860 W
• Maximum Input Voltage: 60 VDC
• Maximum Short-Circuit Current: 22 A
• Efficiency: 99.5% maximum
• Dimensions: 129 × 168 × 59 mm
• Weight: 2.34 lbs / 1.064 kg
• Operating Temperature: −40°C to +85°C
• Application: 2 × 72-cell solar modules
• Compliance: IEC 62109-1, UL 1741; PVRSS compliant
