Quickscrews 17662 QB2 KIT, With 3“ Microflashing

Multi Roof Mount Kit, 5/16 X 4", 3" Microflashing, SS Low Profile L-Foot

Multi Roof Mount Kit, 5/16 X 4 Inch, with 3 Inch Microflashing and SS Low Profile L-Foot, for use with Asphalt Shingle, TPO and, EPDM Roofs, 25 per Kit
QuickBOLT has a wide range of innovative solar mounts for residential and commercial roofs. Starting with One Roof Hook, and growing to over 15 different Roof Hook profiles, QuickBOLT can provide excellent service throughout the continental United States

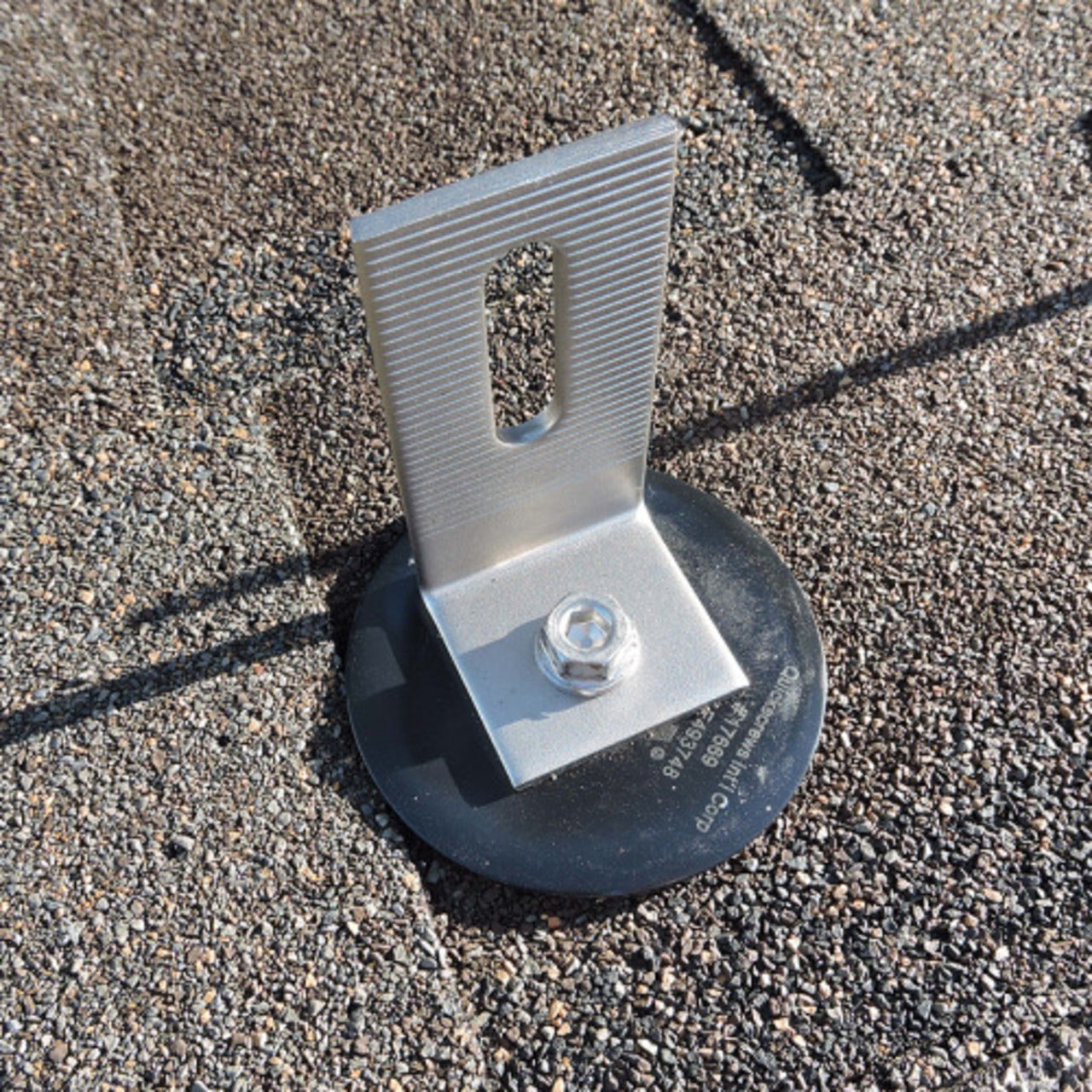

• Application: Designed for top-down mounting of solar racking systems directly to asphalt shingle roofs without lifting shingles or using traditional oversized sheet flashings.
• Patented Seal Technology: Features QuickBOLT's Microflashing technology and compressed EPDM collar to create a watertight seal at the penetration point.

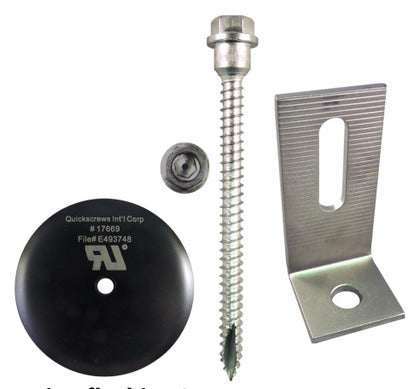

• Hardware Included: Comes with a 5/16" x 7" stainless steel hanger bolt, Microflashing washer, and L-Foot attachment mounting components.
• Installation Speed: Allows for quick, single-pass installation directly into roof rafters through the shingles.
• Material: 300-series stainless steel fastener and hardware paired with high-durability EPDM rubber washer.
