Description
F-TILE 90-H-38MM 5/16KIT 20H-40S/KTC
For side mount rails Fixed height of 38mm The 10mm x 38mm rail attachment slot accepts 5/16" or 3/8" bolts. Use our 1/4" or 5/16" Solar Mounting Screws in the 9mm mounting screw slots.

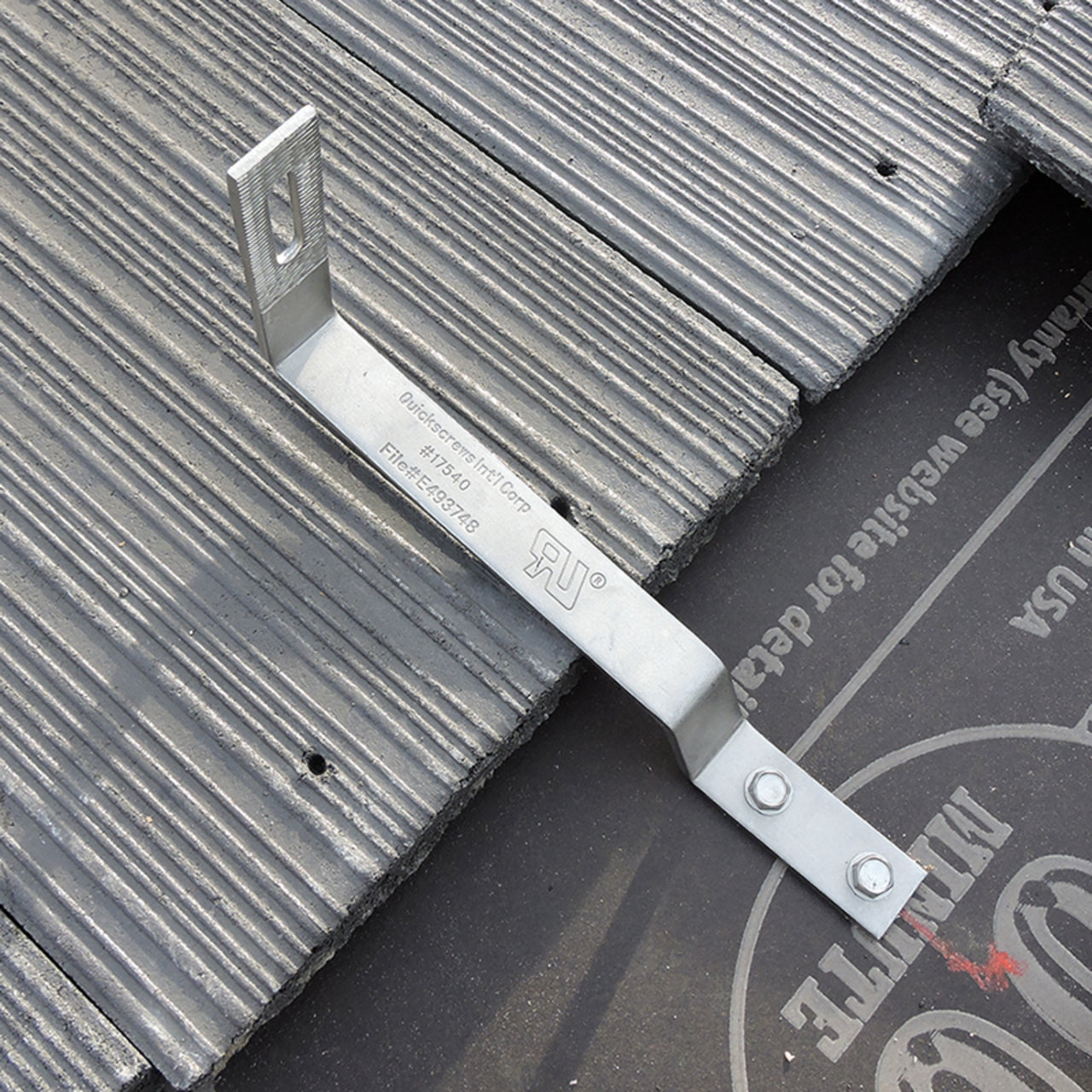

- Application: Designed to mount solar panel racking onto flat tile roofs using side-mount rails without cutting or modifying tiles.
- Fixed Height & Design: Features a 90° hook angle with a 38 mm fixed height and a 5 mm thick arm for heavy-duty structural support.
- Rail Attachment Slot: Includes a 10 mm x 38 mm rail attachment slot that accepts standard 5/16-inch or 3/8-inch mounting bolts.

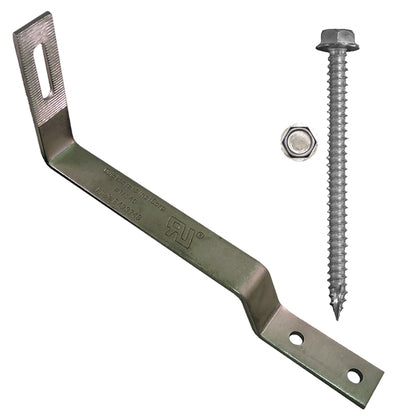

- Included Hardware: Comes with two 5/16" x 3" stainless steel mounting screws for securing directly into wooden roof rafters.
- Material: Heavy-gauge Type 304 stainless steel for max corrosion resistance and long-term outdoor durability.
-
Resources

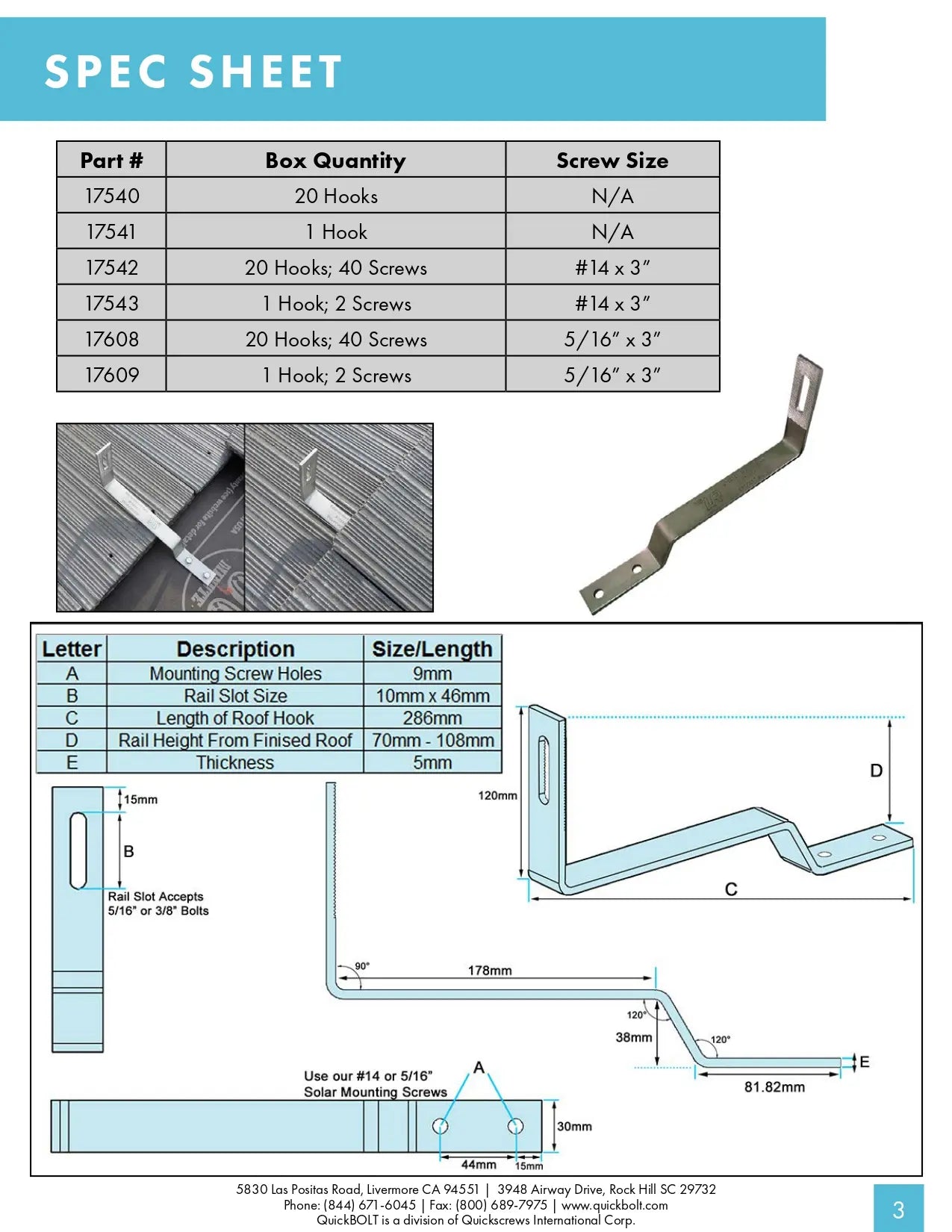

Datasheet
Quick Installation Guide
No installation file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
