Description
Unirac NXT UMount 168" Dark

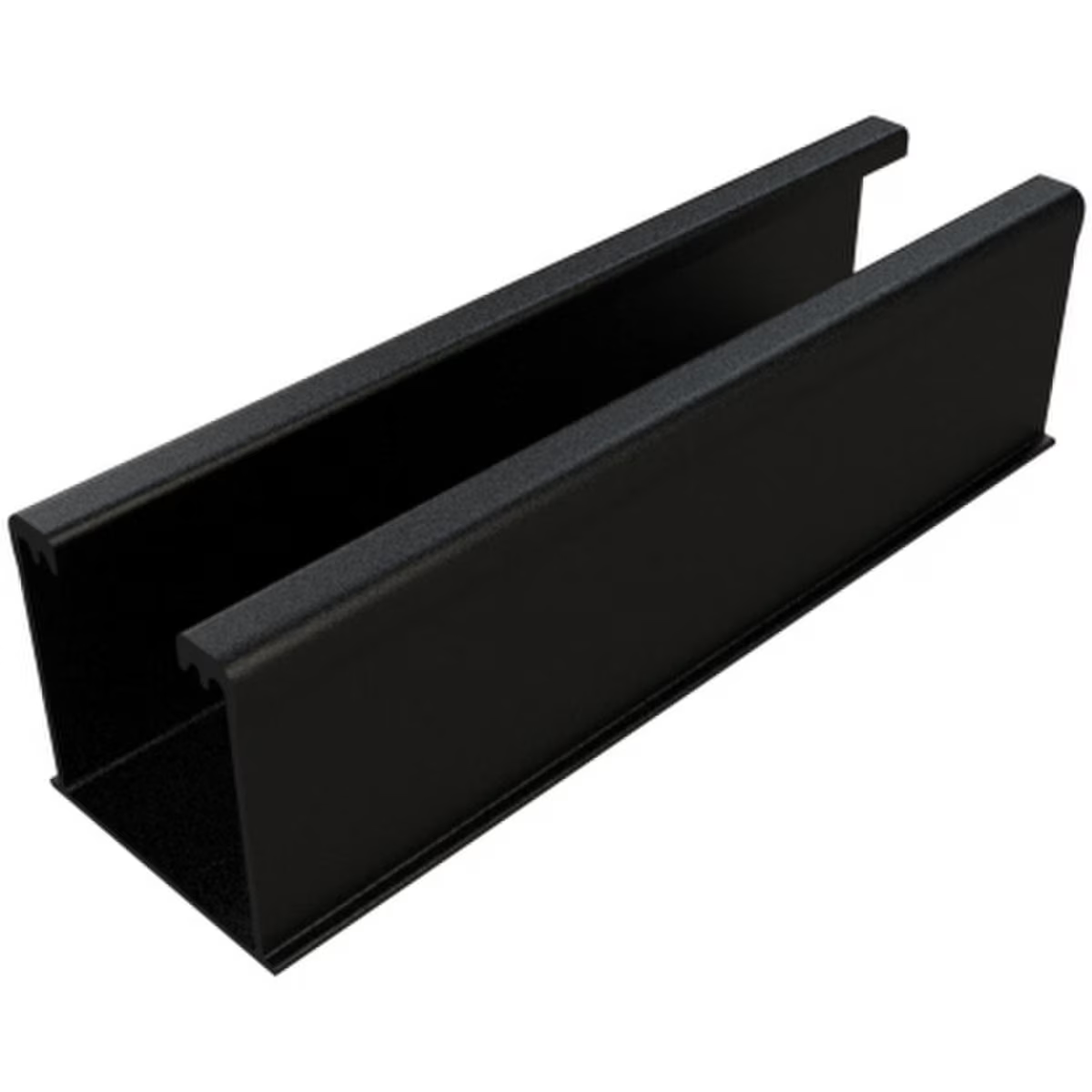

The next generation of integrated solar racking. The 168RLD1 is a 14-foot aluminum mounting rail with a dark anodized finish, designed for the NXT UMount system. This system represents a significant evolution in solar racking, focusing on a "unitized" design that reduces part counts and roof time.
Product Highlights:
- Open Channel Raceway: Integrated wire management within the rail allows for "invisible" cable runs without zip-ties.
- Structural Internal Splice: Interference-free splice maintains true structural integrity even when positioned in a cantilever.
- Click-In Technology: Enables rapid snap-in installation for rails and clamps anywhere along the run.
- Attachment Versatility: Rail clamp connections support various roof attachments, including flashing-free Stronghold options.
- Universal System: Combo Clamps serve as both mid and end clamps to minimize SKUs and maximize component value.
- Safety Certified: UL 3741 certified for PV Hazard Control and UL 2703 listed for grounding and bonding.
Logistics & Ordering Info
- Manufacturer Part Number: 168RLD1
- Manufacturer Warranty: 25 Years
- Shipping Weight: 6.25 lb
- Shipping Dimensions: 168 x 23 x 12 in
- Case Qty: 168
- Pallet Qty: 168
-
Resources

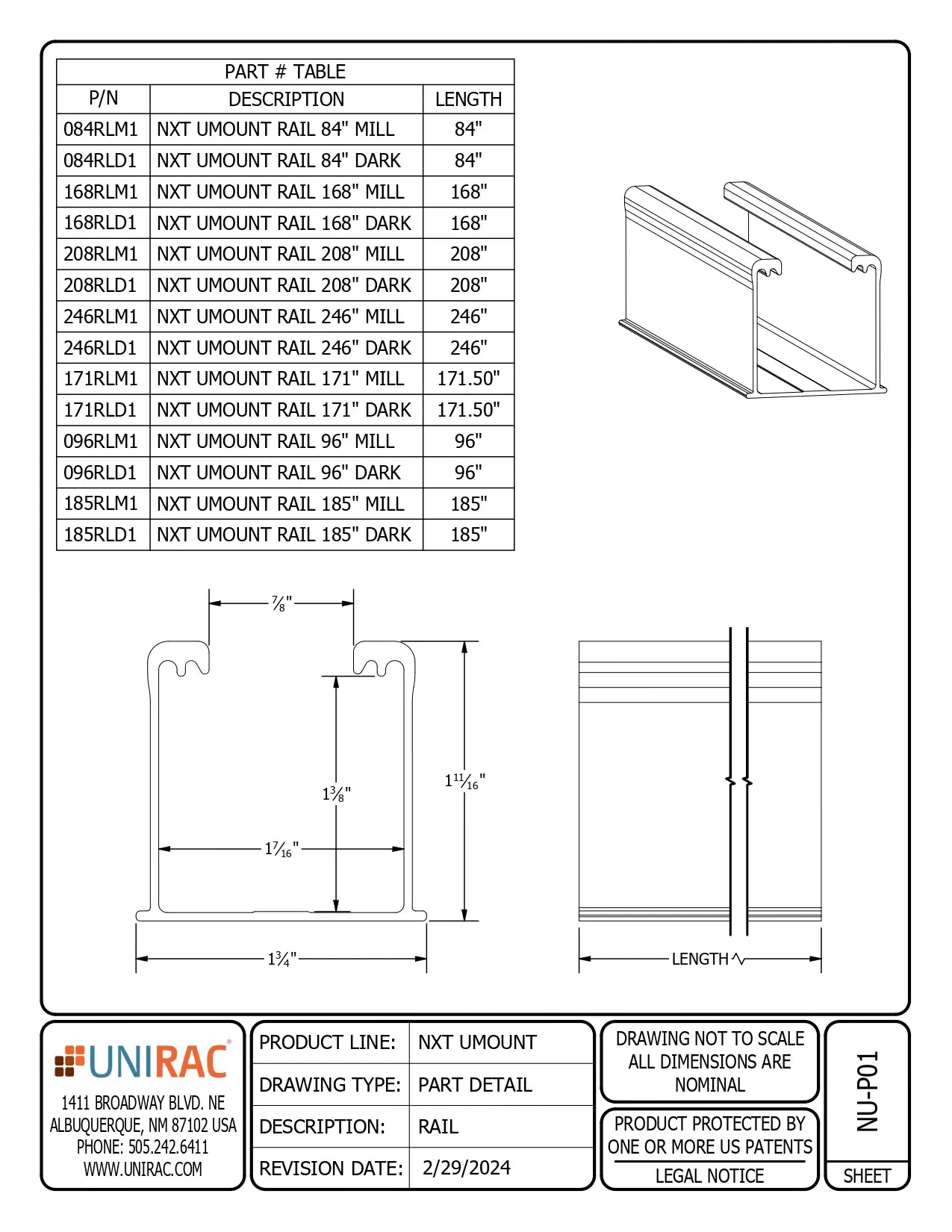

Datasheet
No datasheet available. Email support@solux.energy for file request.
Quick Installation Guide
No quick installation guide available. Email support@solux.energy for file request.
Warranty
No warranty available. Email support@solux.energy for file request.
