  • This is an image of Unirac SM Bonded T-Bolt & Nut, 3/8" X 3/4", SS
  • 009020S bonding bolt
1 3

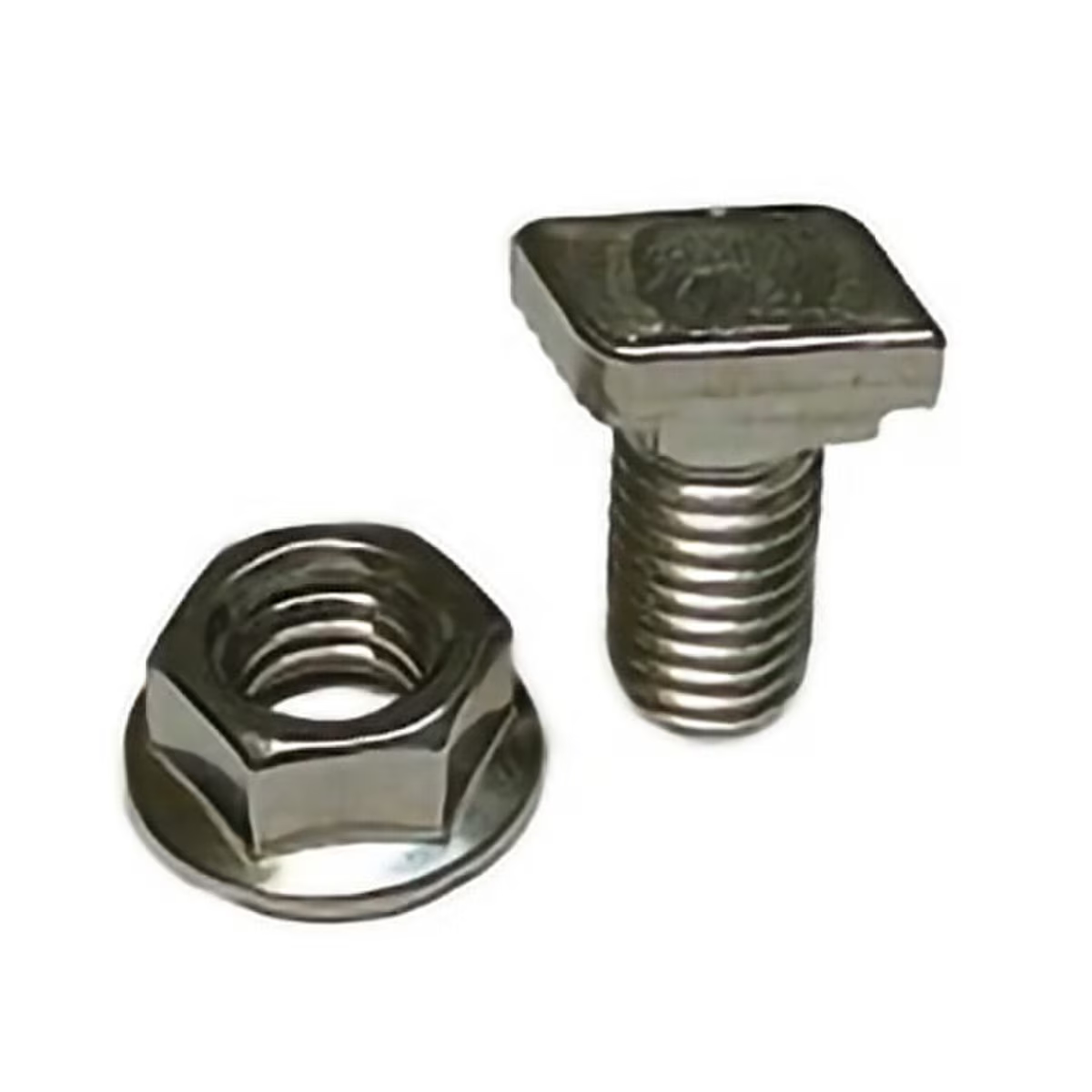

Unirac SM Bonded T-Bolt & Nut, 3/8" X 3/4", SS

$1.59 USD
$1.59 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Application: Attaches Unirac SOLARMOUNT rails to L-feet, splice bars, tilt legs, and other side-mounting attachment hardware.
✔️ Integrated Bonding: Features engineered bonding features/teeth that pierce aluminum rail finishes upon tightening, establishing an electrical ground connection across the joint.
✔️ Side-Slot Drop-In: Designed as a 3/8" T-bolt that drops directly into the side-mounting channel of Unirac rails for fast assembly.
✔️ Complete Hardware: Comes paired with a matching stainless steel serrated flange nut for secure, anti-vibration fastening.
✔️ Material: Corrosion-resistant 300-series stainless steel built for outdoor exposure and heavy structural mounting loads.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Unirac

  • Description

    Unirac Bonded T-Bolt & Nut (009020S)

    The standard hardware for structural rail connections. This 3/8" x 3/4" stainless steel T-bolt is engineered specifically for the Unirac SolarMount system. It provides a secure, vibration-proof attachment for L-feet, splices, and other rail accessories while ensuring automatic electrical bonding throughout the array.

    Product Highlights:

    • Integrated Bonding: Penetrates rail anodization for UL 2703 grounding.
    • Easy Alignment: T-head slides anywhere into the rail top-slot.
    • Corrosion Proof: High-grade stainless steel for 25+ year life.
    • Anti-Vibration: Serrated flange nut prevents loosening over time.
    • Standard Fit: Optimized for SolarMount Standard and Light rails.
    • Fast Torque: One-tool installation with a standard 9/16" socket.

    Logistics and Ordering

    • Manufacturer Part Number: 009020S
    • Shipping Weight: .048 lb
    • Case Qty: 20

  • Downloads

    Datasheet

    No datasheet available. Email support@solux.energy for file request.

    Quick Installation Guide

    No quick installation guide available. Email support@solux.energy for file request.

    Warranty

    No warranty available. Email support@solux.energy for file request.
