Unirac SolarMount ILSCO Lay In Lug

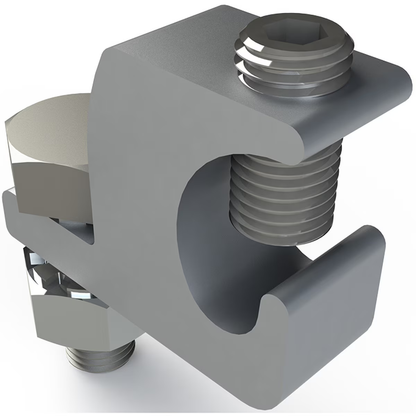

Unirac SolarMount ILSCO Lay In Lug (008009P)

The industry standard for final array grounding. The 008009P is a specialized grounding terminal used to connect the copper equipment grounding conductor (EGC) to the Unirac SolarMount rail. Its "lay-in" design allows the installer to place a continuous grounding wire into the lug without cutting or threading it, significantly speeding up the final electrical connection of the solar array.

Product Highlights:

• Lay-In Design: Accepts continuous copper wire without cutting or stripping at every lug.
• Integrated Bonding: Includes a stainless steel T-bolt that penetrates rail anodization for a UL 2703 bond.
• Corrosion Resistance: Tin-plated copper lug with stainless steel hardware for maximum outdoor life.
• Universal Rail Fit: Slides into the top or side channel of any SolarMount series rail.
• High Conductivity: Specifically rated for high-current grounding paths in PV systems.
• Code Compliant: Fully UL 467 and UL 2703 listed for grounding and bonding.

Logistics and Ordering

• Manufacturer Part Number: 008009P
• Shipping Weight: .1 lb
• Shipping Dimensions: 1.5 x 1.25 x 0.75 in
• Case Qty: 20
