Description

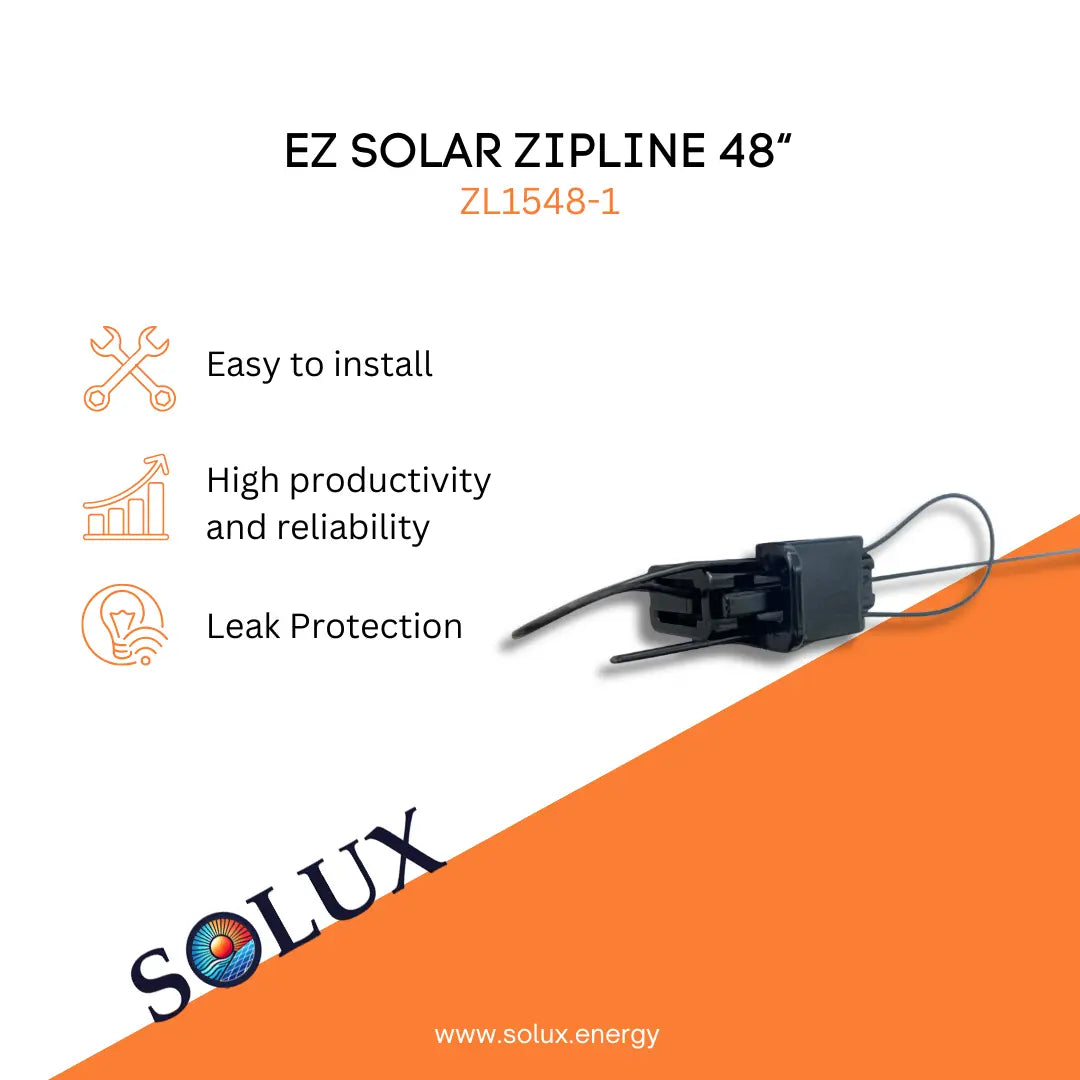

EZ Solar ZipLine
The EZ Solar ZipLine is a continuous-support solar cable suspension system designed to stop PV wires from sagging and chafing against abrasive roofs. It features a flexible 1.5 mm stainless steel wire rope encased in a non-conductive polymer jacket that protects cable insulation from wear. The universal polycarbonate frame clips snap directly onto solar module flanges with a tight, tool-free bite, making it ideal for both portrait and landscape railless arrays. This reusable hardware solution is proudly made in the USA and backed by a 25-year warranty.
Key features:
- UV-rated, corrosion-resistant cable
- Reduces cable strain and sagging
- Fast installation, tool-free clips
Technical Specifications:
- Product type: Continuous support wire management
- Application: Solar PV installations
- Design: Stainless steel cable with polycarbonate clips
- Length: 48 inches (1219 mm) / 82 inches (2083 mm)
- Cable diameter: 1.5 mm
- Material: Polymer-coated stainless steel
- Clip type: Polycarbonate universal clips
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
No Warranty file resource available. Email support@solux.energy for file request.

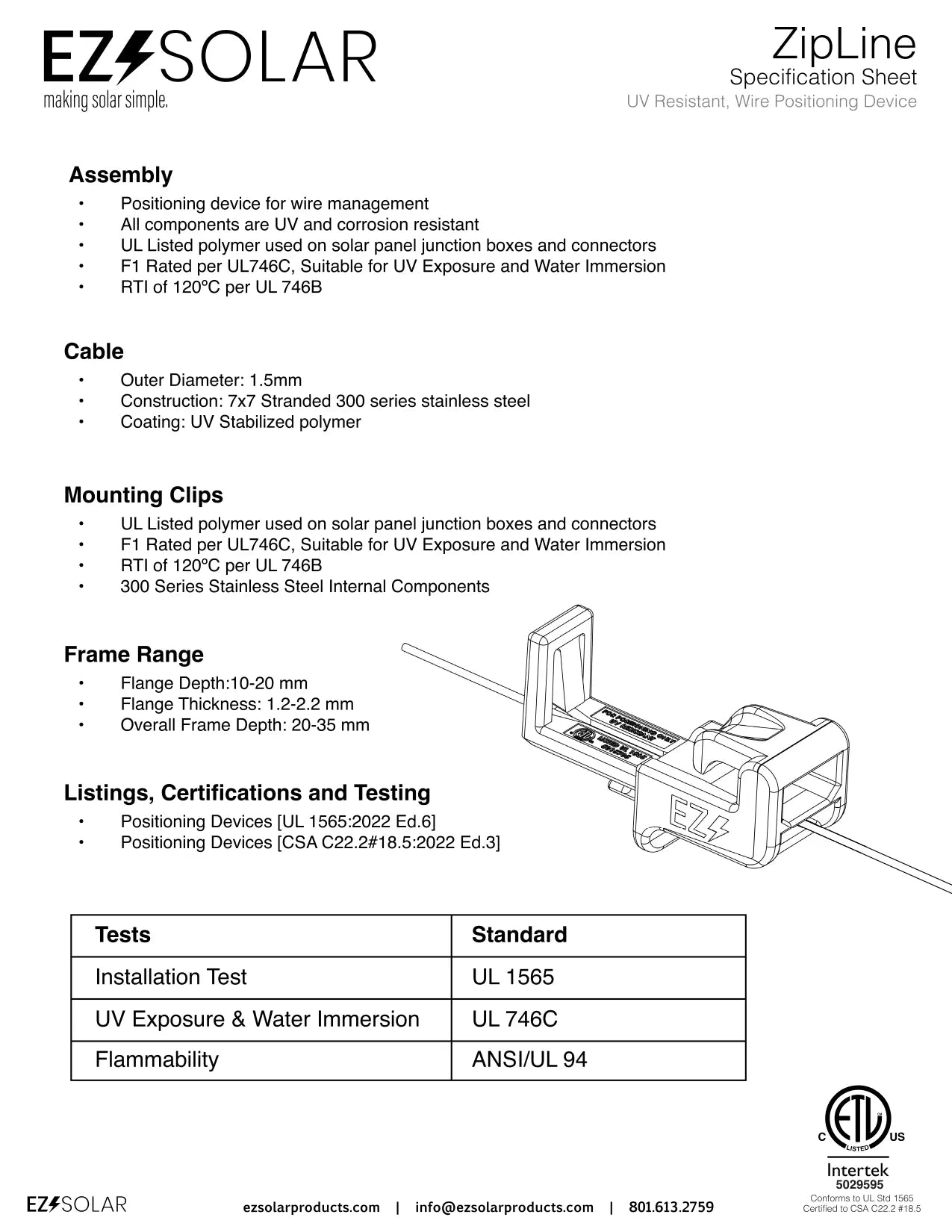

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
