Description

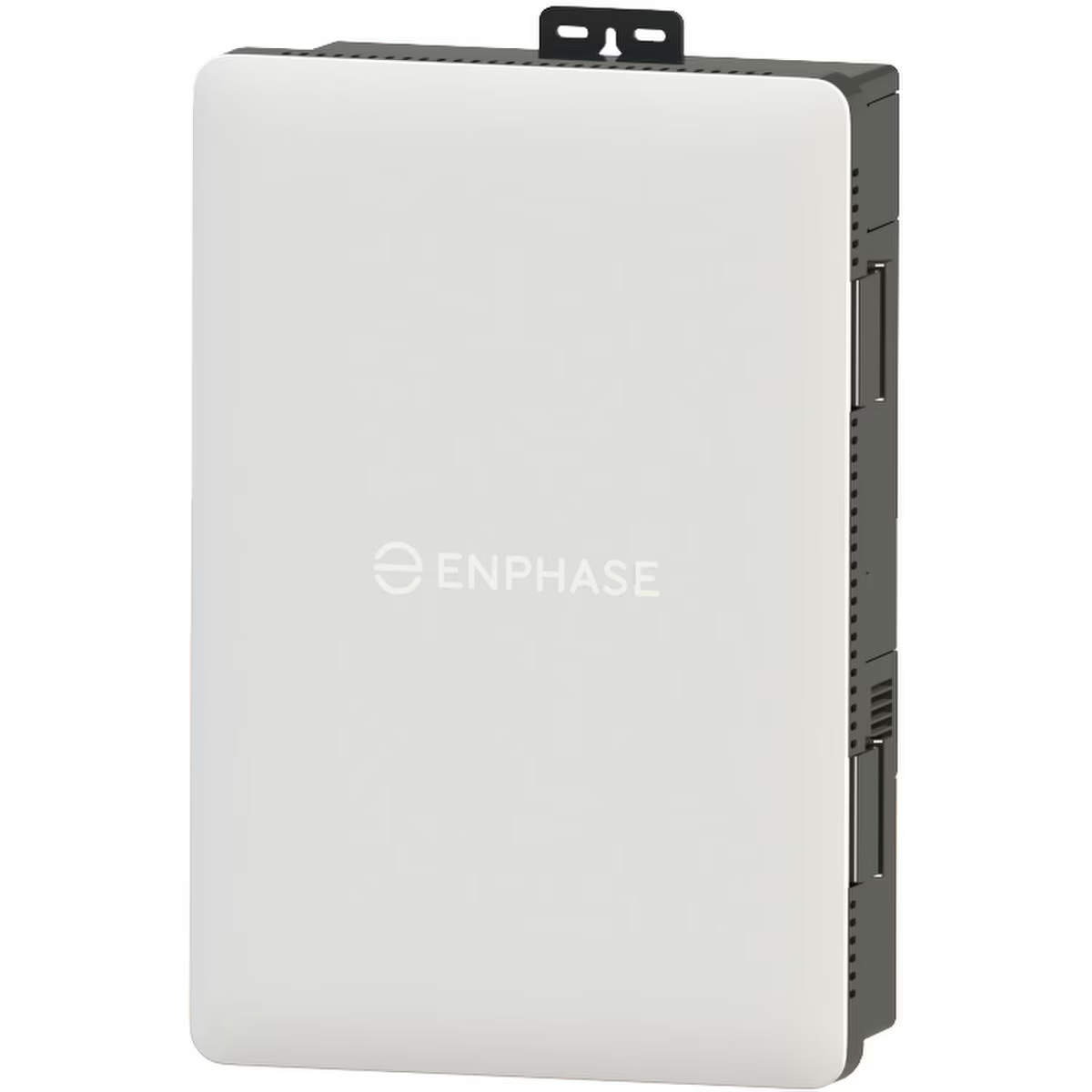

Enphase IQ Combiner 6C Gateway, Pre-Wired with 3 Circuit Breakers (two 20A PV breakers and one 40A battery breaker)
The Enphase X‑IQ‑AM1‑240‑6C‑3BRK is an IQ Combiner 6C smart load center used in Enphase solar energy systems. It combines PV interconnection, monitoring, breaker spaces, and communication gateway functions into a single enclosure.
This unit includes three pre-installed breakers (2×20 A for PV and 1×40 A for battery) and an integrated IQ Gateway, simplifying installation and monitoring for systems using Enphase IQ microinverters and IQ batteries. It is typically installed in residential solar + storage systems as the central connection point between the solar array, battery, loads, and the grid.- Manufacturer Warranty: 15 Years
- Product Type: IQ Combiner 6C with integrated gateway
- Shipping Weight: 40 lb
- Shipping Dimensions: 8.66 x 18.11 x 26.77 in
- Case Qty: 14
- System Voltage: 120/240 VAC split-phase
- Frequency: 60 Hz (56–63 Hz range)
-
Downloads

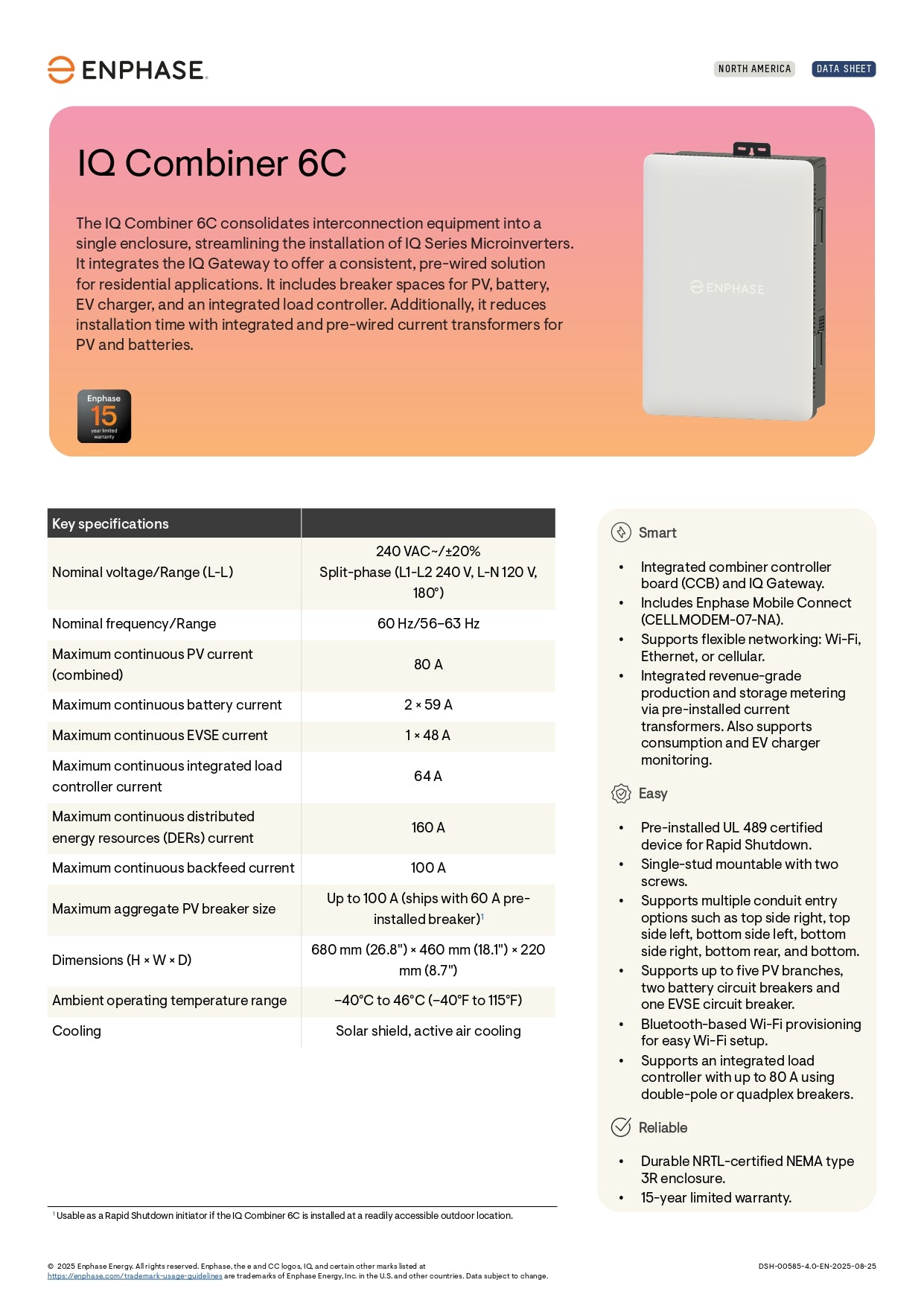

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
✔️ Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
