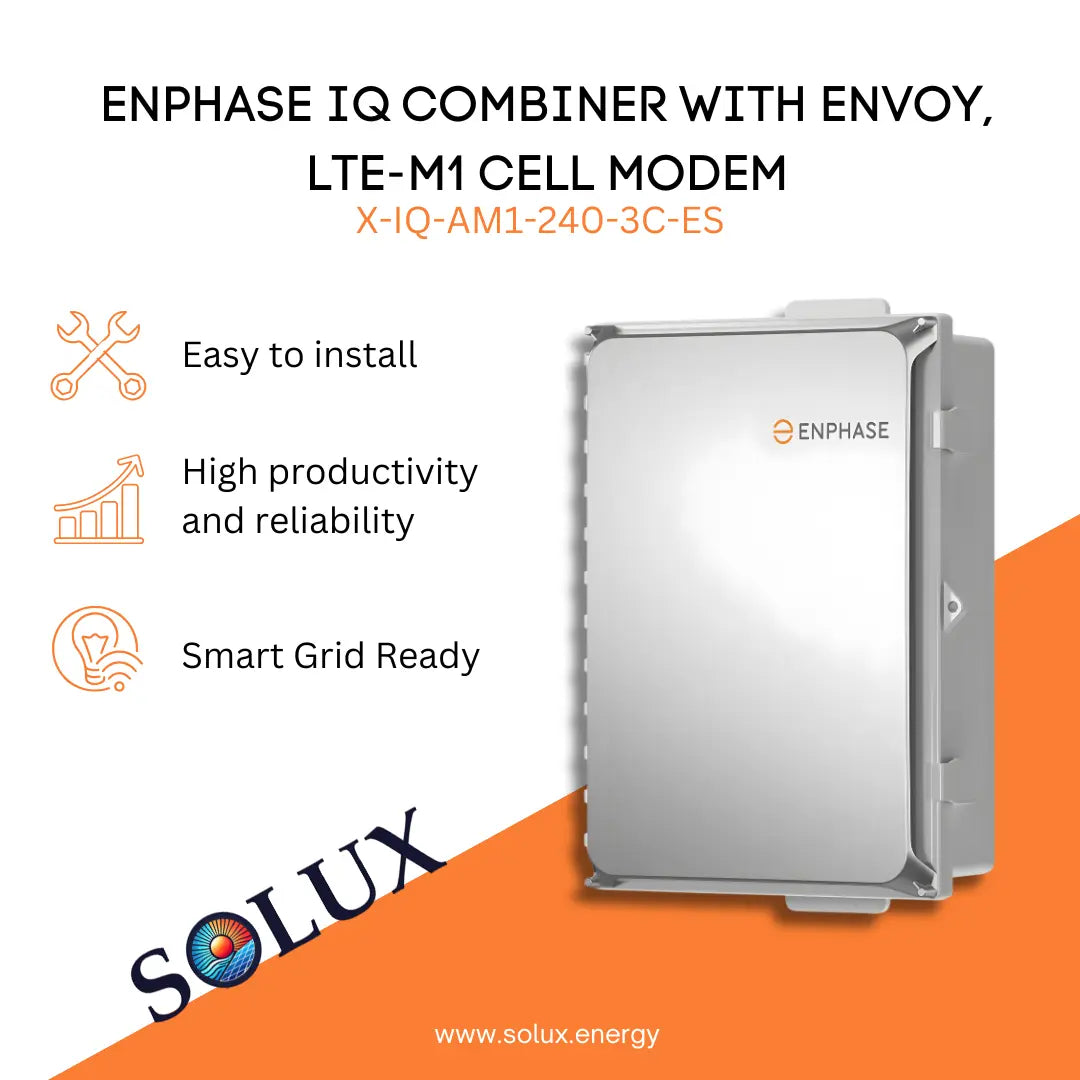

Enphase X-IQ-AM1-240-3C-ES IQ Combiner with Envoy, LTE-M1 Cell Modem
IQ Combiner 3C-ES With Enphase IQ Envoy Printed Circuit Board For Integrated Revenue Grade PV Production Metering (ANSI C12.20 +/- 0.5%) & Consumption Monitoring (+/- 2.5%). Includes Enphase Mobile Connect LTE-M1 (CELLMODEM-M1), A Plug-And-Play Industrial-Grade Cell Modem For Systems Up To 60 Microinverters, Includes A Silver Solar Shield To Match The Encharge Storage System & Enpower Smart Switch & To Deflect Heat
Key Specifications:
- Use With: ENV-120M
- Type: Communication Bridge
- Warranty: N/A
- Weight: 16.5 lb
- Dimensions (WxHxD): 14.75 x 19.5 x 6.63 in
- Ambient temperature range: 40º C to +46º C (-40º to 115º F)
- Cooling: Natural convection, plus heat shield
- Enclosure environmental rating: Outdoor, NRTL-certified, NEMA type 3R, polycarbonate construction
- Wire sizes:
• 20 A to 50 A breaker inputs: 14 to 4 AWG copper conductors
• 60 A breaker branch input: 4 to 1/0 AWG copper conductors
• Main lug combined output: 10 to 2/0 AWG copper conductors
• Neutral and ground: 14 to 1/0 copper conductor. Always follow local code requirements for conductor sizing. - Altitude: To 2000 meters (6,560 feet)
-
Downloads

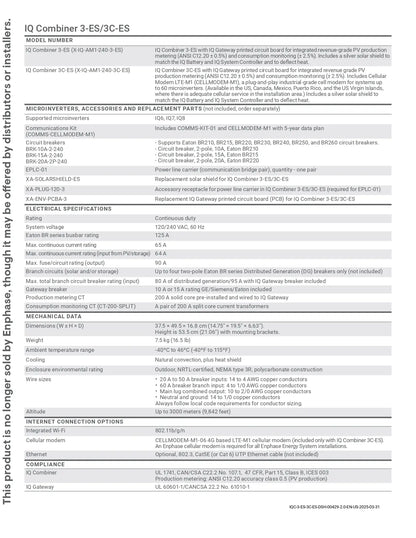

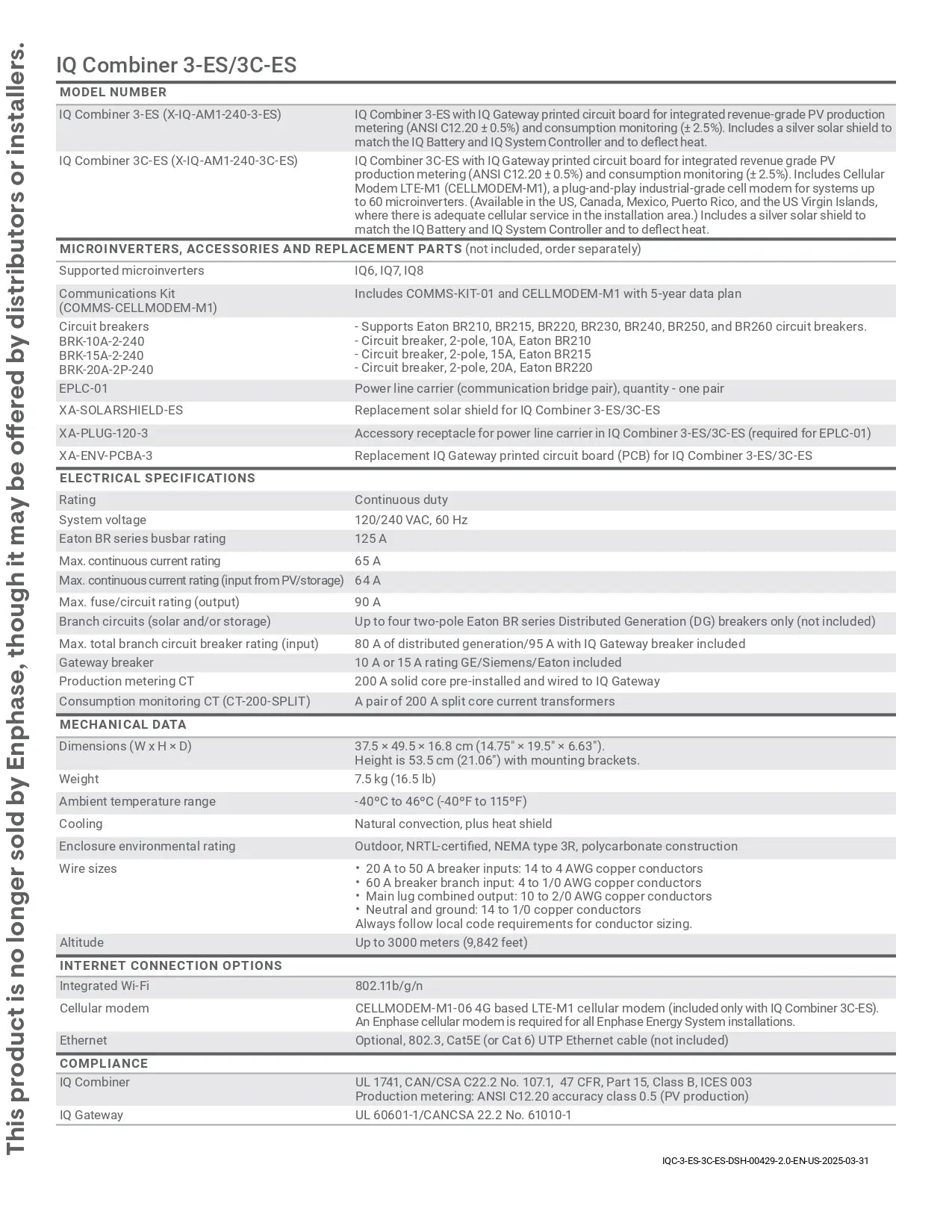

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
