Enphase X-IQ-AM1-240-3-ES IQ Combiner with IQ Gateway PCB Single-Phase

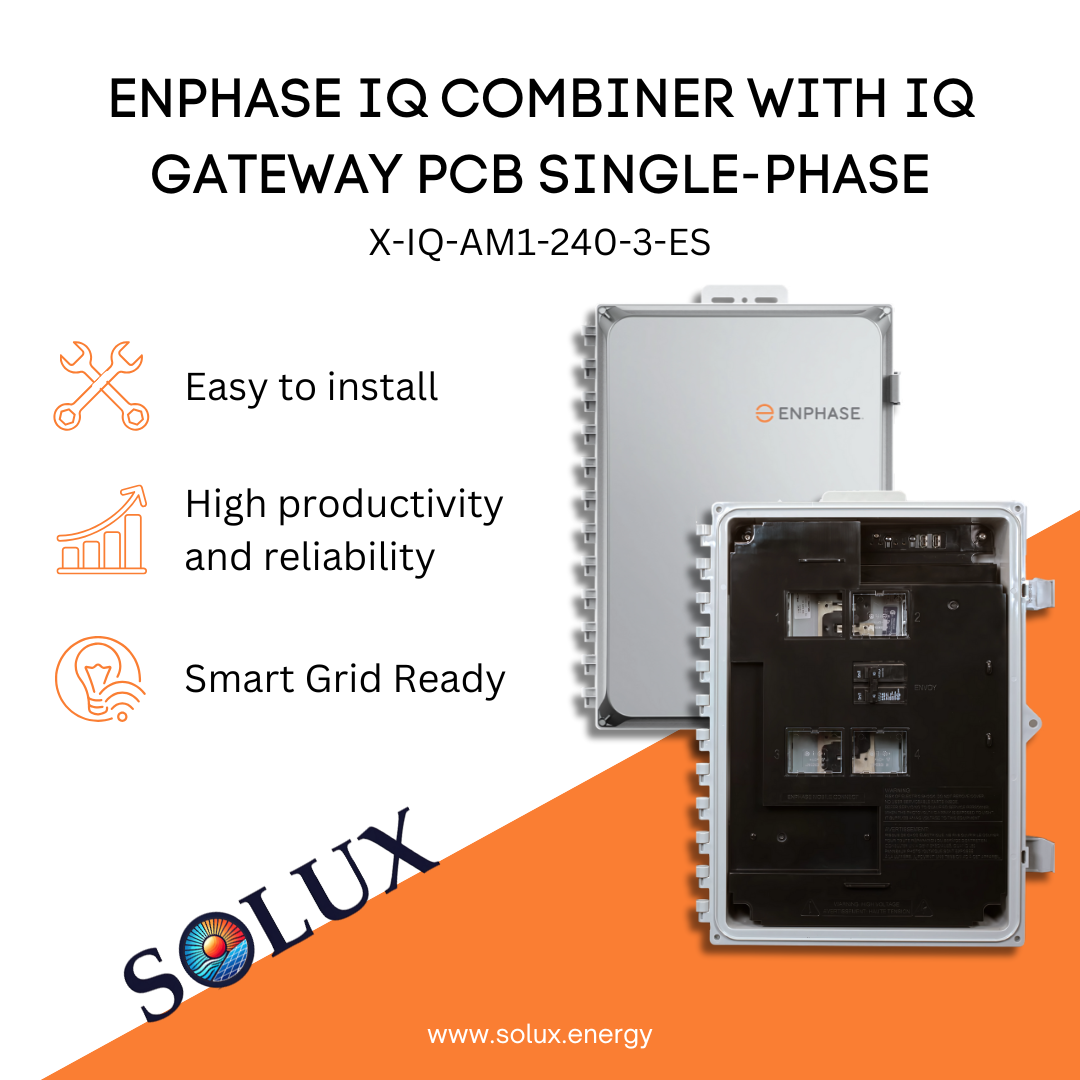

Enphase - X-IQ-AM1-240-3-ES - IQ Combiner with IQ Gateway PCB, 80A, Single-Phase, silver solar shield, includes 2x CT-200-SPLIT

AC Combiner Box with IQ Envoy PCB, 80A, Single-Phase. Includes a pair of consumption CT's (CT-200-SPLIT - Split-core current transformer, accuracy +/- 2.5%). Also includes a solar shield (XA-SOLARSHIELD-ES) that matches with the Ensemble aesthetics and deflects heat
The Enphase IQ Combiner 3-ES/3C-ES with Enphase IQ Envoy and integrated LTE-M1 cell modem (included only with IQ Combiner 3CES) consolidates interconnection equipment into a single enclosure and streamlines PV and storage installations by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series busbar assembly

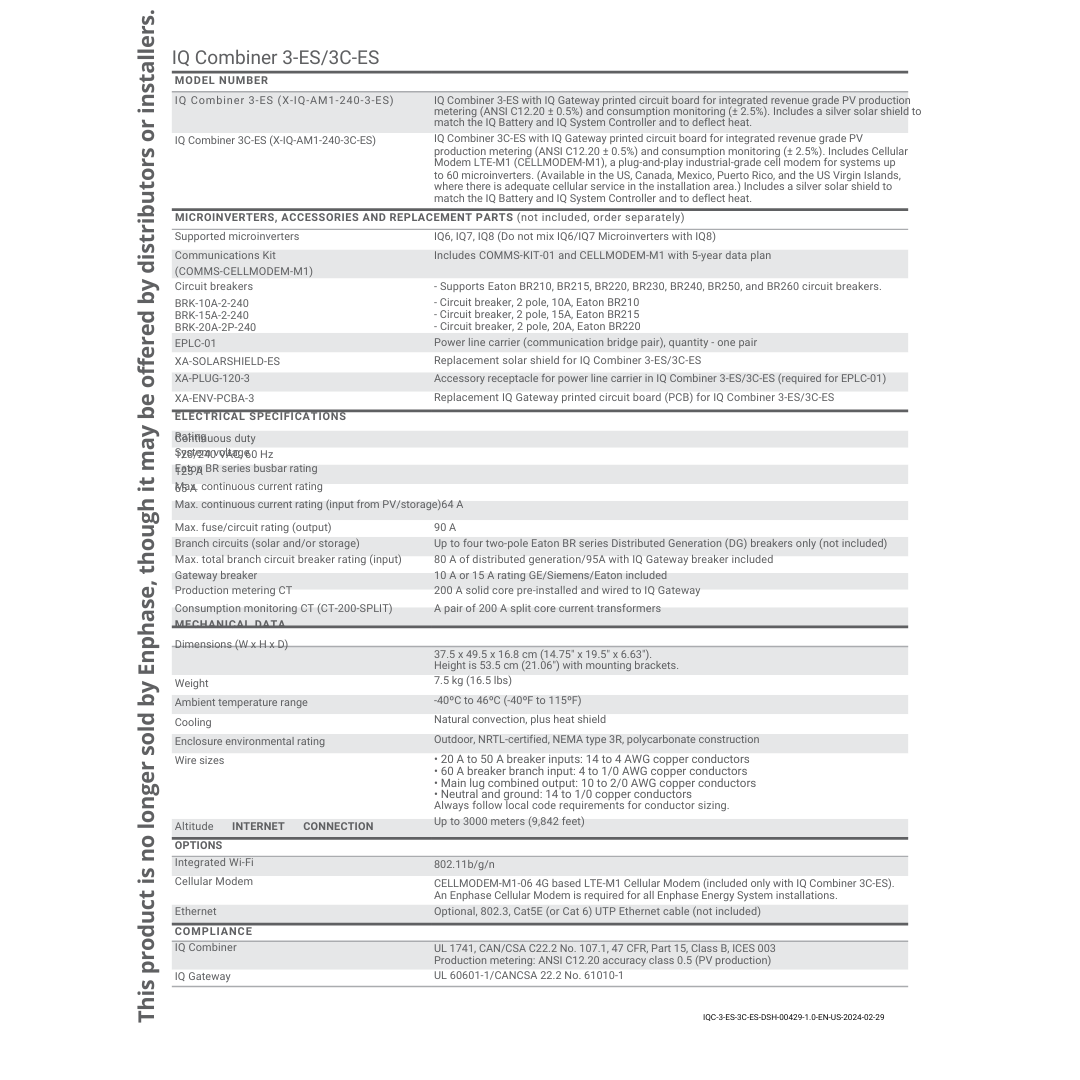

Technical Specification: :

• Type: Current Transformer
• Amps: 80
• Simple - Centered mounting brackets support single stud mounting
• IP/NEMA Rating: 3R
• System voltage: 120/240 VAC, 60 Hz
• Eaton BR series busbar rating: 125 A
• Max. continuous current rating: 65 A
• Max. continuous current rating (input from PV/storage): 64 A
• Max. fuse/circuit rating (output): 90 A
• Branch circuits (solar and/or storage): Up to four two-pole Eaton BR series Distributed Generation (DG) breakers only (not included)
• Max. total branch circuit breaker rating (input): 80 A of distributed generation/95A with IQ Gateway breaker included
• Gateway breaker: 10 A or 15 A rating GE/Siemens/Eaton included
• Production metering CT: 200 A solid core pre-installed and wired to IQ Gateway
• Consumption monitoring CT (CT-200-SPLIT): A pair of 200 A split core current transformers
• Dimensions: (W x H x D) 37.5 x 49.5 x 16.8 cm (14.75" x 19.5" x 6.63"). Height is 53.5 cm (21.06") with mounting brackets.
• Weight: 7.5 kg (16.5 lbs)
• Ambient temperature range: -40ºC to 46ºC (-40ºF to 115ºF)
• Cooling: Natural convection, plus heat shield
