Description

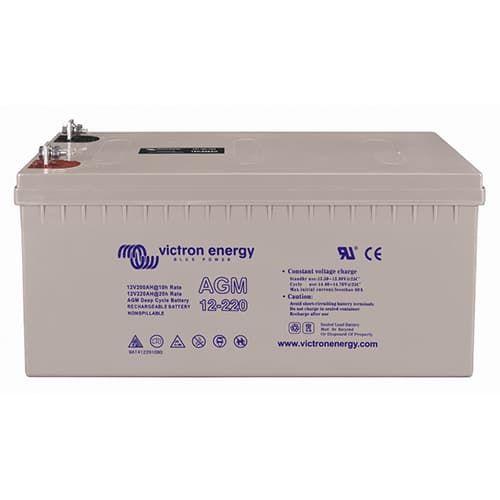

Victron 12V/220Ah AGM Deep Cycle Batt.
The Victron Energy BAT412201084 is a sealed 12V, 220Ah AGM deep-cycle battery designed for solar energy storage, backup power, marine systems, and off-grid installations. Its maintenance-free design and ability to deliver high current make it suitable for inverter systems and other demanding electrical applications.
Technical Specification:
- Model: BAT412201084
- Battery Type: AGM Deep Cycle Battery
- Capacity: 220Ah (C20)
- Nominal Energy: 2.64 kWh
- Dimensions (L × W × H): 522 × 238 × 240 mm
- Weight: 65 kg (143.3 lb)
- Cold Cranking Amps: 650 A
- Absorption Voltage: 14.2–14.6V
- Float Voltage: 13.5–13.8V
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
2 Years Warranty
