Yaskawa Solectria UUX002284 XGI 1500-200/200-480-DCG, 200kW Transformerless Inverter

Yaskawa Solectria 200kW Transformerless Inverter

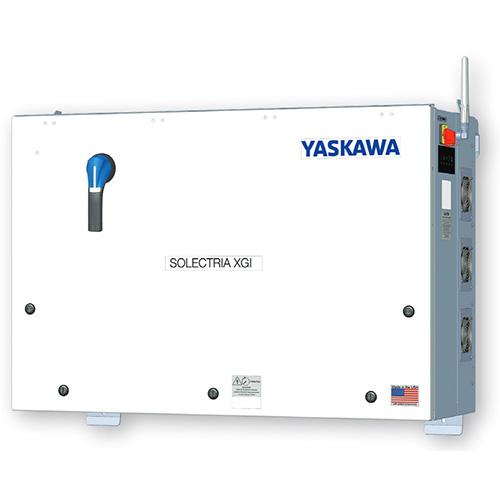

The Yaskawa Solectria UUX002284 XGI 1500-200/200-480-DCG Inverter is a high-efficiency 200 kW (200 kVA) transformerless utility-scale string inverter engineered for ground-mounted commercial and utility PV arrays. Powered by Silicon Carbide (SiC) semiconductors, this model delivers 480 VAC three-phase output with a maximum system rating of 1500 VDC.

This specialized -DCG model features an integrated grounded DC input configuration designed specifically for direct compatibility with First Solar PV modules. Manufactured in the USA and fully compliant with the Buy American Act (BAA) it supports a maximum DC/AC ratio of 2.0, achieves 99.0% peak efficiency, and includes site-wide Wi-Fi access for remote diagnostics and firmware upgrades.

Solectria XGI NEW and MORE POWERFUL!

Upgrade your home with a reliable Solar String Inverter for efficient, dependable solar power.

• XGI 1500-250/250-600
• XGI 1500-225/250-600
• XGI 1500-200/200-480
• XGI 1500-175/200-480

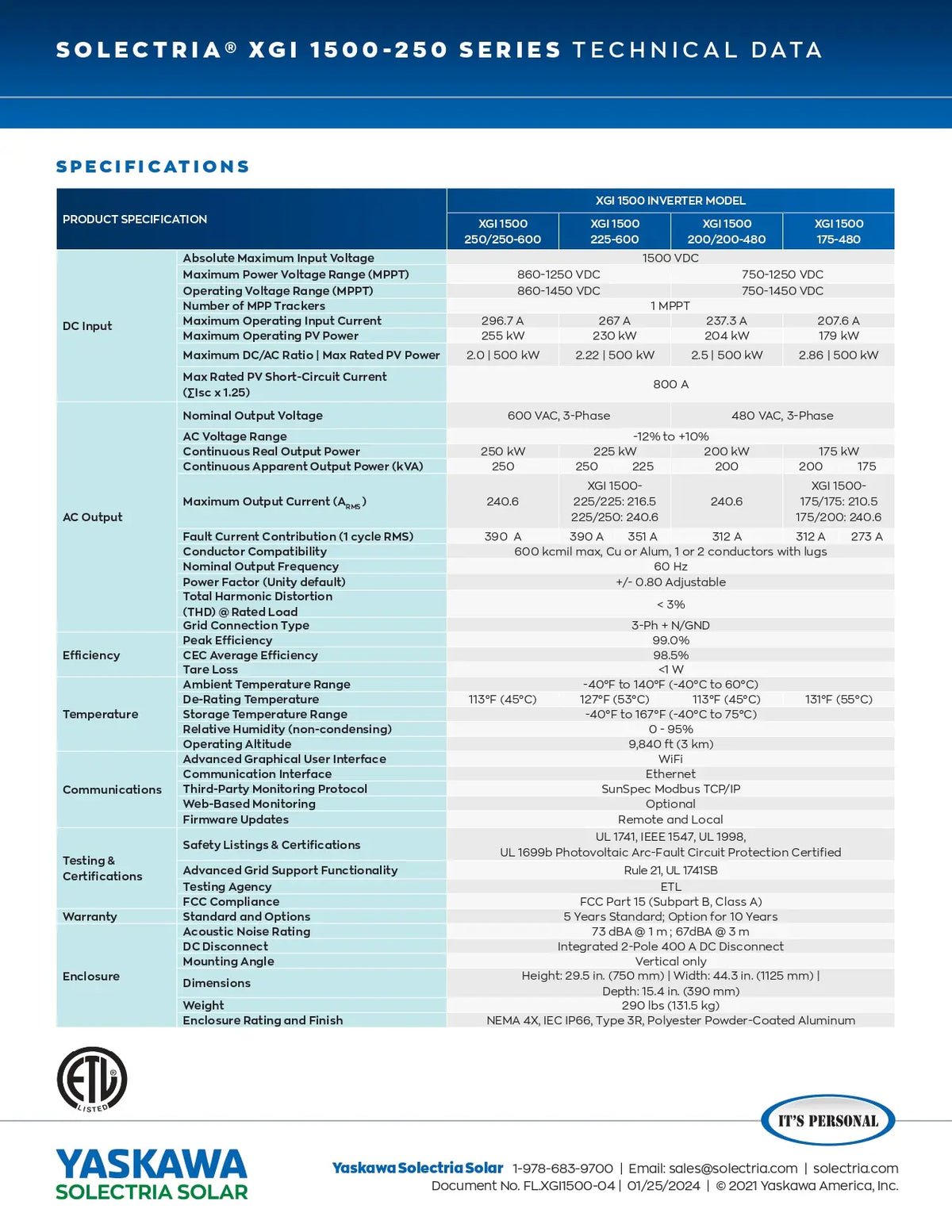

Features and Technical Specification

• Industry-leading maximum DC/AC Ratio of 2.0
• Accepts two input PV Output Circuits, with no overcurrent protection required
• Made in the USA with global components
• Buy American Act (BAA) compliant
• 99.0% peak efficiency
• Flexible solution for distributed and centralized system architecture
• Advanced grid-support functionality Rule 21/UL1741SA
• Robust, dependable and built to last
• Lowest O&M and installation costs
• Access all inverters on site via WiFi from one location
• Remote diagnostics and firmware upgrades
