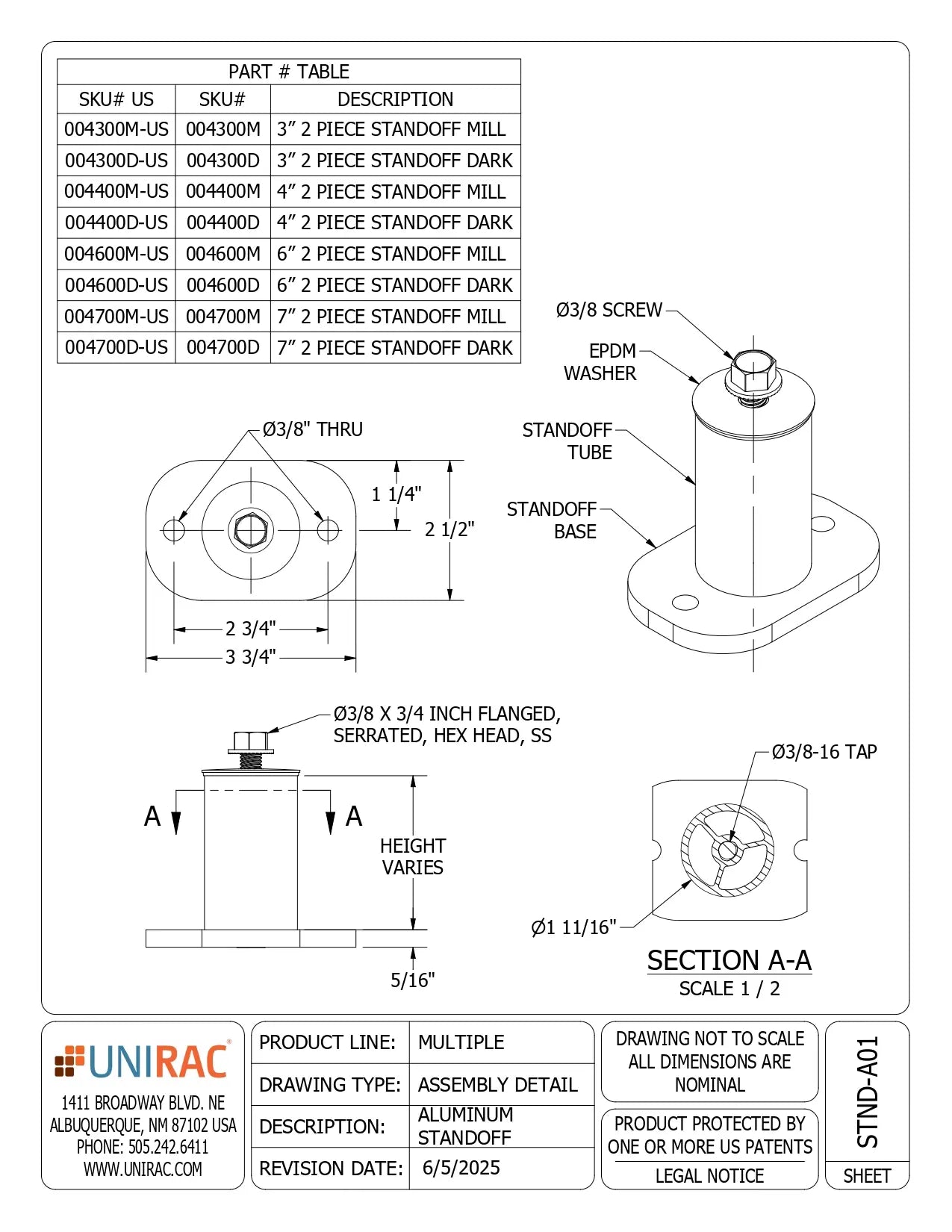

Unirac: UNI-004400M Unirac 2-piece stand-offs, 4", mill aluminum

Unirac: UNI-004400M Unirac 2-piece stand-offs, 4", mill aluminum

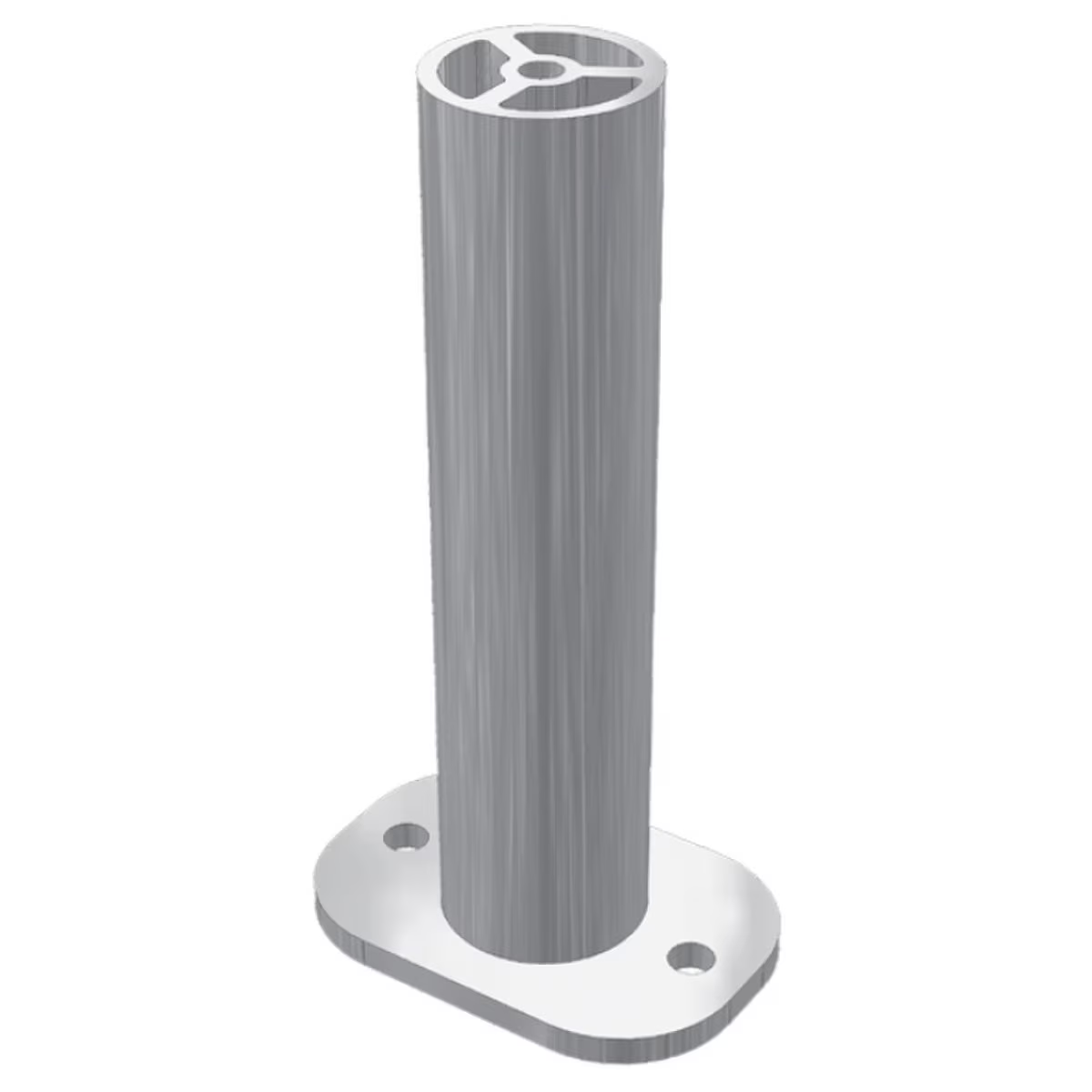

Heavy-duty structural elevation for specialized roofing. These 4-inch aluminum standoffs are designed to raise SolarMount or SunFrame rails above the roof surface with precision. The two-piece architecture allows the base to be secured to the rafter before the flashing is installed, providing a superior waterproof seal for tile, shake, or metal roofs.

Product Highlights:

• Two-Piece Versatility: Base and shaft separate to simplify flashing installation. This ensures a precision fit on complex roof surfaces.
• Superior Waterproofing: Optimized for use with collared flashings. It eliminates the need for messy sealants between the standoff and shaft.
• Structural Strength: Constructed from high-grade 6000 series aluminum. It provides rigid support for high-load residential and commercial arrays.
• Rail Compatibility: Works seamlessly with SolarMount Standard, Light, and HD rails. It also integrates with Unirac’s SunFrame system.

• Easy Leveling: Standard 4-inch height helps clear roof obstructions. It provides a level mounting plane for uneven or tile-covered roofs.
• Code-Compliant Reliability: UL 2703 listed for grounding and bonding. It is backed by a 25-year limited product warranty.

Logistics & Ordering:

• Manufacturer Part Number: 004400M
• Shipping Weight: .71 lb
• Shipping Dimensions: 4 x 3 x 4 in
• Case Qty: 24
