Tigo CCA Kit, TAP, Din Rail PS, Outdoor Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure KitEnclosure (Copy)

Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure Kit

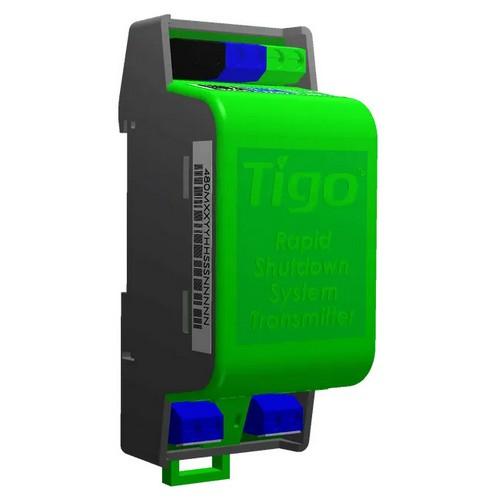

The Tigo 492-00000-52 is a dual-core Rapid Shutdown System (RSS) transmitter designed for solar photovoltaic installations. It sends a continuous signal through power-line communication (PLC) to compatible Tigo TS4 fire-safety devices, keeping solar modules operational during normal operation and triggering rapid shutdown when the signal is lost. It helps improve electrical safety during emergencies and supports solar installations requiring rapid shutdown compliance.

Technical Specifications:Model:

• Brand: Tigo Energy
• Model: 492-00000-52
• Product Type: Dual-core rapid shutdown transmitter kit
• Mounting: DIN rail
• Maximum string voltage: Up to 1500 V DC
• Maximum current: Up to 200 A
• Maximum PV modules: Up to 600 modules
• Operating temperature: -20°C to 50°C in the outdoor enclosure
• Enclosure rating: NEMA 4 / IP68, as listed by a retailer
• Weight: Approximately 1.5 kg (3.3 lbs)
• Dimensions: 270 × 170 × 110 mm (H × W × D), or 10.63 × 6.69 × 4.33 inches
