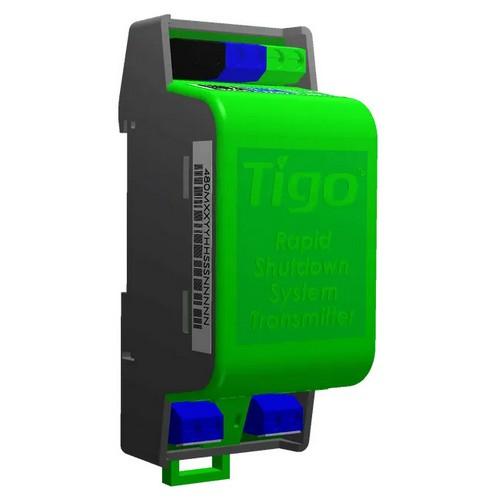

Tigo Dual Core, Pure Signal RSS Transmitter, Din Rail, Commercial 480/277VAC PS (No Enclosure)

Tigo Dual Core, Pure Signal RSS Transmitter, Din Rail, Commercial 480/277VAC PS (No Enclosure)

The Tigo 493-00000-52 is a dual-core Rapid Shutdown System (RSS) transmitter designed for commercial solar installations. It communicates with compatible module-level power electronics using power-line communication (PLC), enabling rapid shutdown of solar panels when the transmitter signal is interrupted. Its Pure Signal technology coordinates multiple transmitters in larger solar arrays.

Technical Specifications:Model:

• Brand: Tigo Energy
• Model: 493-00000-52
• Product Type: Dual-Core Rapid Shutdown System (RSS) Transmitter
• Input Voltage: 480/277 VAC power-source configuration
• Transmitter Input: 12 VDC ±2%
• Input Current: 1 A
• Communication: Power-line communication (PLC)
• Mounting: DIN rail
• Operating Temperature: −40°C to 85°C
• Dimensions: 90.9 × 38 × 41.3 mm
• Weight: Approximately 0.35 lbs (160 g)
