Description

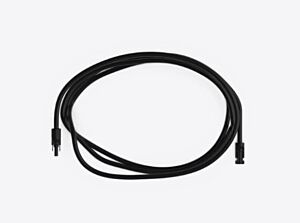

Hoymiles Power DC Extension Cable 1m for Microinverters
Connect the microinverter and the PV module when the distance between this two exceeds the original cable length.

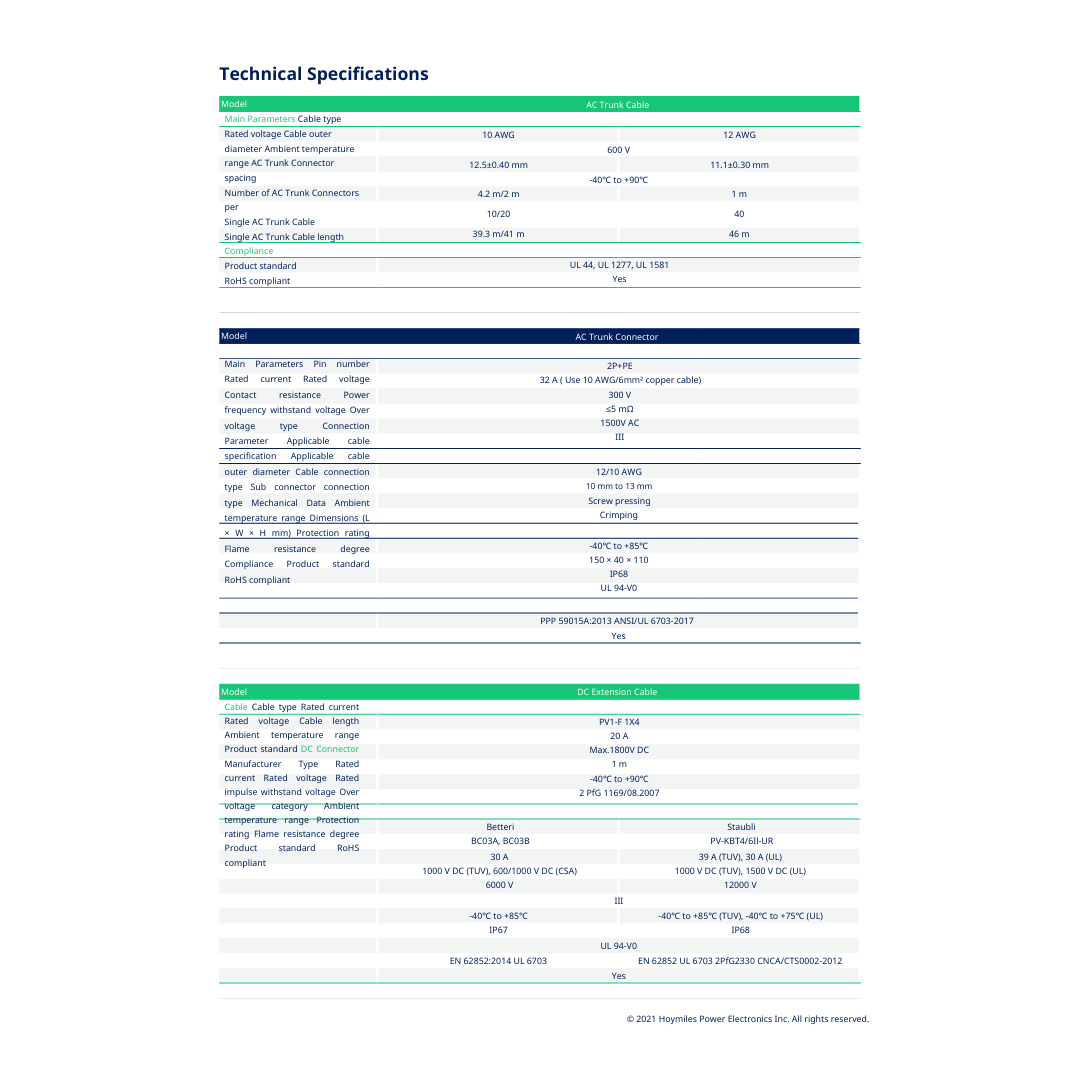

Technical Specifications:
- Cable type: PV1-F 1X4
- Rated current: 20 A
- Rated voltage: Max.1800V DC
- Cable length: 1 m
- Ambient temperature range: -40℃ to +90℃
- Product standard: 2 PfG 1169/08.2007
Resources
Datasheet
✔️ DatasheetQuick Installation Guide
No installation guide available. Email support@solux.energy for file request
