SolarEdge Smart Hot Water

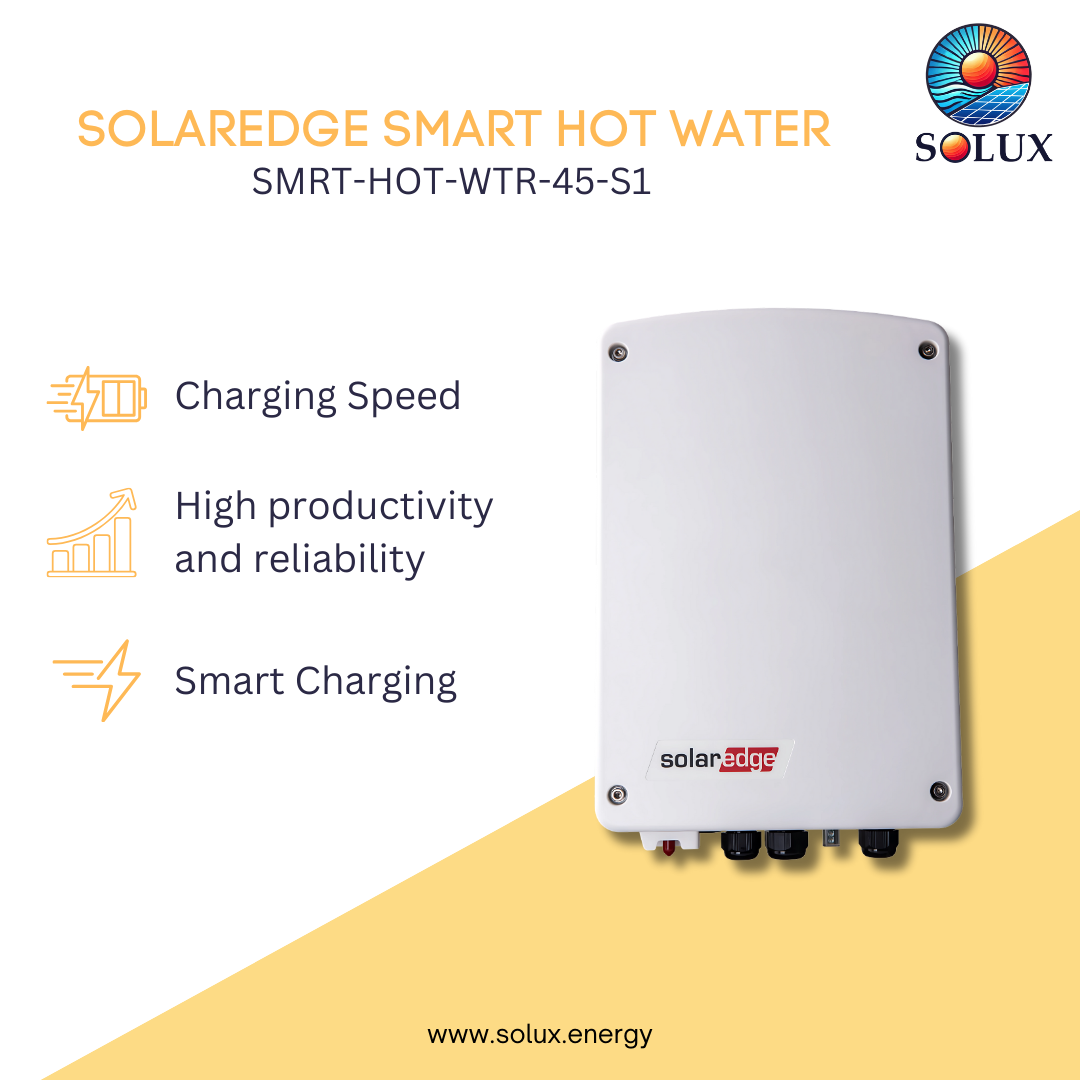

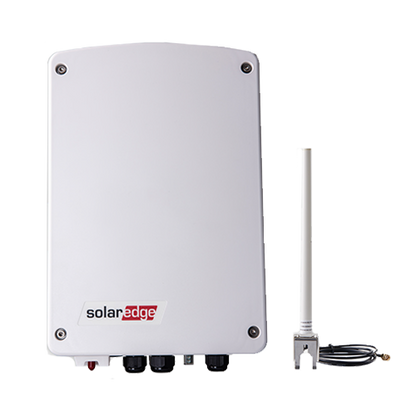

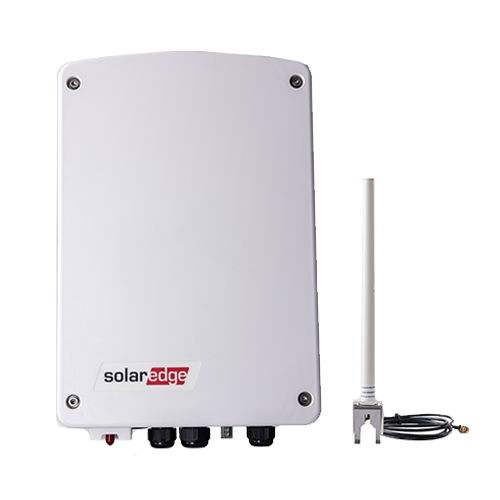

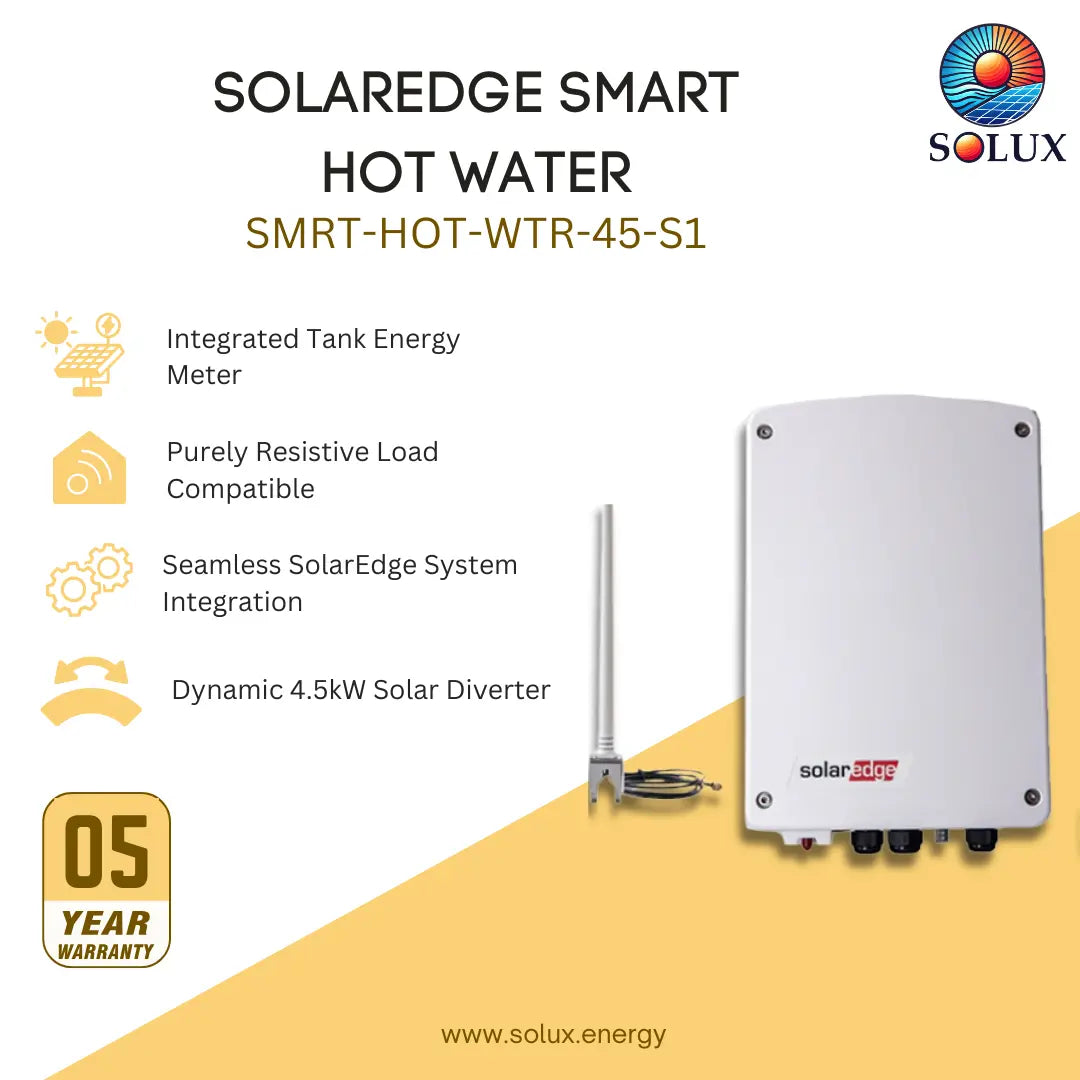

SolarEdge SMRT-HOT-WTR-45-S1 Smart Energy Hot Water

Built-in water tank power-consumption meter
Built-in water tank power-consumption meter
Suitable for powering purely resistive loads only
Seamless integration with all SolarEdge inverters, and the monitoring platform
Adjusts power supplied to the heater based on available PV power (up to 4.5 kW)

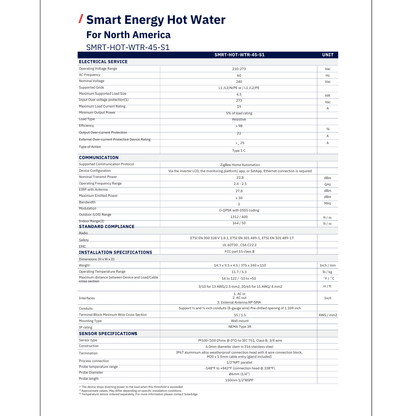

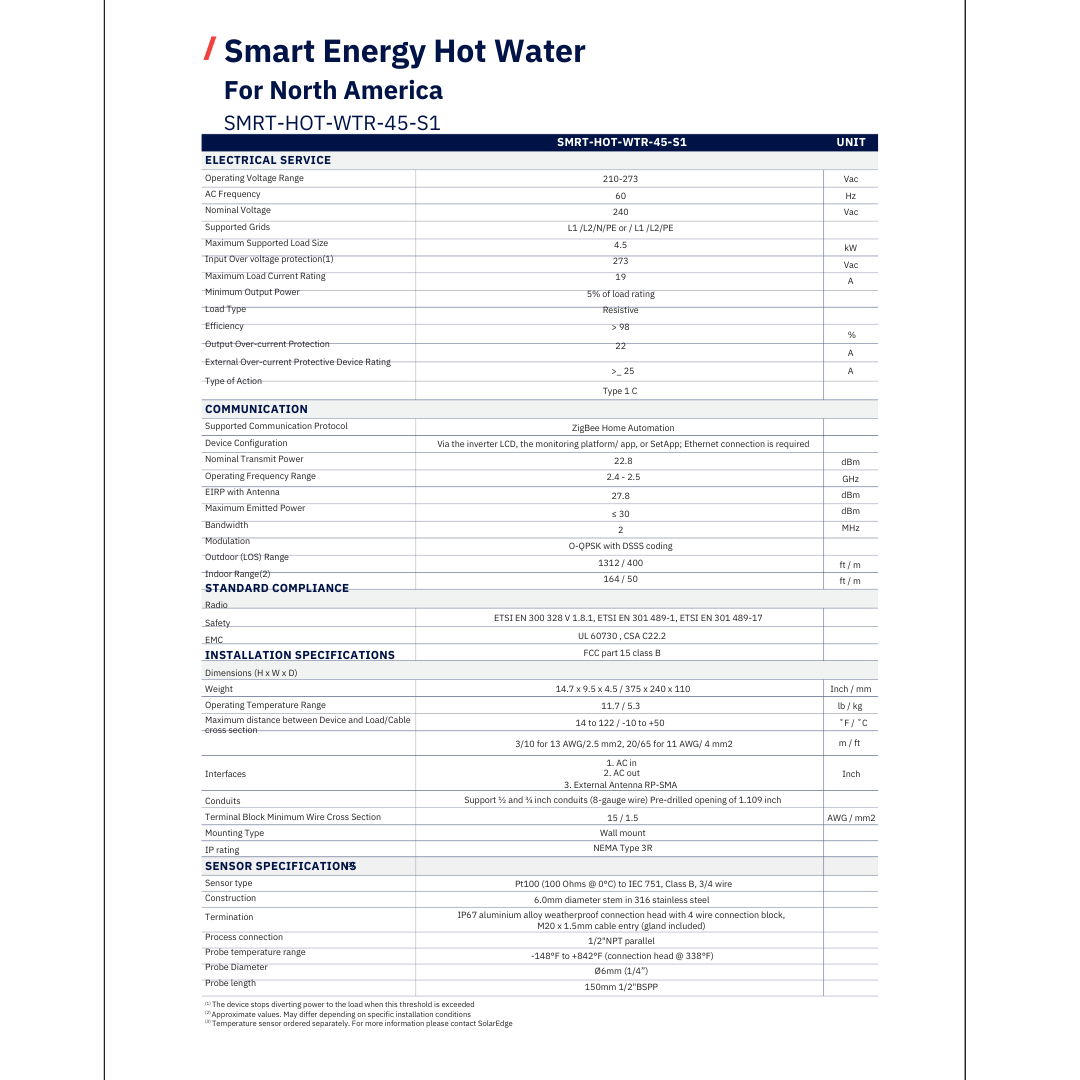

Technical Specification

• Operating Voltage Range：210-273Vac
• AC Frequency: 60Hz
• Nominal Voltage: 240Vac
• Supported Grids: LI/L2/N/PE or L1/L2/PE
• Maximum Supported Load Size: 4.5kW
• Input Over Voltage Protection: 273Vac
• Maximum Load Current rating: 19A
• Maximum Output Power: 5% of load rating
• Load Type: Resistive
• Efficiency: >98
• Output Over Current Protection: 22
• Dimension) (H x W x D): 375 x 240 x 110 mm
• Weight: 11.7lb / 5.3kg
