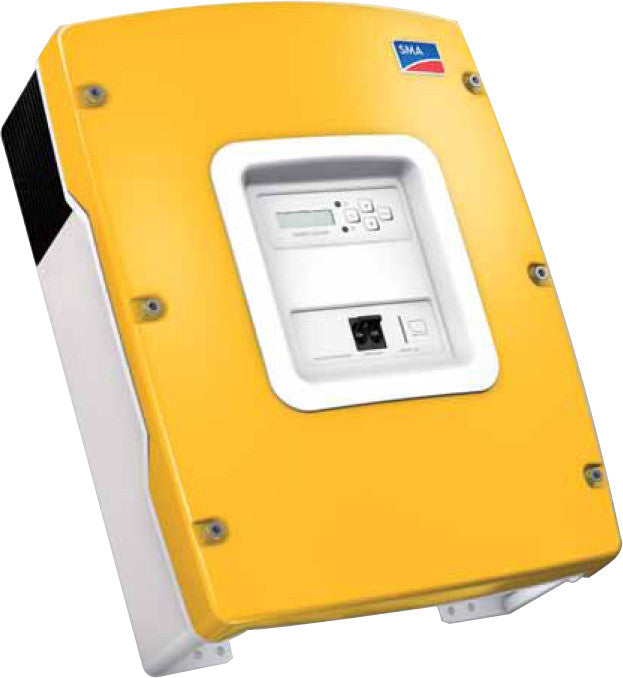

SMA Sunny Island SI6048-US-10 5.75kW 48VDC 120VAC Battery Inverter

SMA Sunny Island SI6048-US-10 5.75kW 48VDC 120VAC Battery Inverter

The Sunny Island inverters are bi-directional battery-based inverter/chargers that can be used completely off-grid, or for battery backup in grid-tie systems either with charge controllers or with grid-tie inverters using AC coupling. The Sunny Island includes sine-wave output power at 120 VAC only. Two or four Sunny Island inverters can be stacked for 120/240 VAC input and output. Three Sunny Islands can also be stacked for a 120/208 VAC three phase input and output. They have low idle losses as well as a 100 A battery charger, and a battery disconnect. State-of-charge metering helps with battery management to ensure maximum battery life.
In off-grid systems, the Sunny Island can be used with any standard PWM or MPPT charge control, but will communicate with the MidNite Classic using the MNSICOMM box. It can also work with the US-40 Sunny Boy inverters in an AC-coupled system so long as the Sunny Boy inverter is set for off grid function. The frequency shift algorithm will work to make the Sunny Boy inverter back off power output to prevent the battery from too much charge. A generator can be connected to the Sunny Island’s AC input to provide backup and battery charging.
For grid-tied systems, the newest US-40 Sunny Boy inverters do not have RS485 capability so cannot communicate with the Sunny Island to change grid tie parameters to off grid. This means that the system will not be able to use frequency shift for battery charge control in a grid-tied backup system. The frequency shift in the Sunny Island will work with the newer Sunny Boy inverter in the same manner as with any other grid-tie inverter, causing it to turn on and off as the batteries are charged. In an off-grid only system, the US-40 Sunny Boy inverters can be set for off-grid use independently of the Sunny Island and will work with the frequency shift algorithm.

Features

• Efficient & Simple - Maximum efficiency 96%. CEC efficiency of 94.5%. Charge level calculation. Intelligent battery management. Easy commissioning with the "Quick Configuration Guide". Complete off-grid management. Excellent for grid-tied battery back up.
• Flexible - For Sunny Island systems from 2 kW to 100 kW. Single, 120/240 split-phase and three-phase operation, connectable in parallel and modularly expandable.
• Durable - Extreme overload capability. OptiCool active temperature management system. Five-year standard warranty

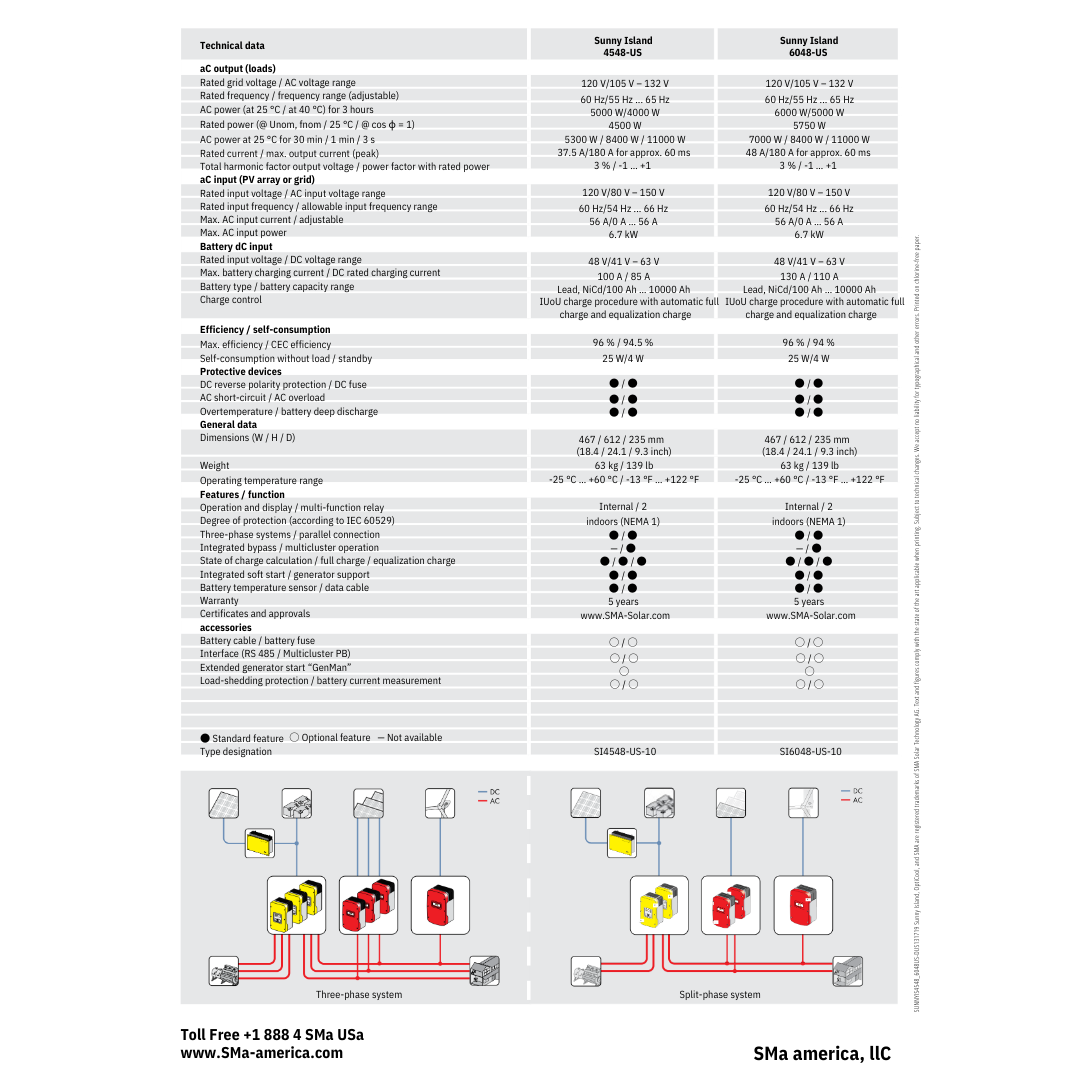

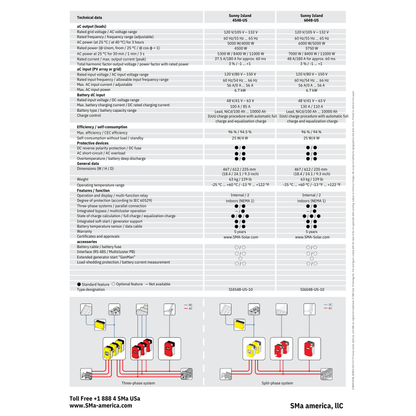

Technical Specifications

• Technology: String Inverter
• Dimensions: 18.40 x 24.10 x 9.30 inches
• Weight: 139.00 lbs
• Operating Temperature Range: -25 to +60°C
• Operation & Display / Multi-Function Relay: Internal / 2
• Degree of Protection (According to IEC 60529): Indoors (NEMA 1)
• Charge Control: IUoU Charge Procedure with Automatic Full Charge and Equalization Charge
• Battery Type / Battery Capacity Range: Lead, NiCd/100 Ah … 10000 Ah
• Rated Grid Voltage / AC Voltage Range: 120V/105V - 132V
• Rated Frequency / Frequency Rnage (Adjustable): 60Hz/55Hz...65Hz
• AC Power (at 25°C/at 40°C) for 3 Hours: 6000W/5000W
• Rated Power: 5750W
• AC Power at 25°C: 30 Min: 7000W; 1 Min: 8400W; 3 Sec: 11000W
• Rated Current / Max. Output (Peak): 48A/180A for Approx. 60 MS
• Total Harmonic Factor Output Voltage/ Power Factor with Rated Power: 3 % / -1 … +1
• Rated Input Voltage / AC Input Voltage Range: 120V/80V - 150V
• Absolute Maximum Input Voltage: 83 VDC
• Rated Input Frequency / Allowable Input Frequency Range: 60Hz/54Hz...66Hz
• Max. AC Input Current / Adjustable: 56A/0A...56A
• Max. AC Input Power: 6.7kW
• Rated Input Voltage / DC Voltage Range: 48V/41V - 63V
• Max. Battery Charging Current / DC Rated Charging Current: 130A/110A
• Max. Efficiency / CEC Efficiency: 96% / 94%
• Self-Consumption w/o Load / Standby: 25W / 4W
