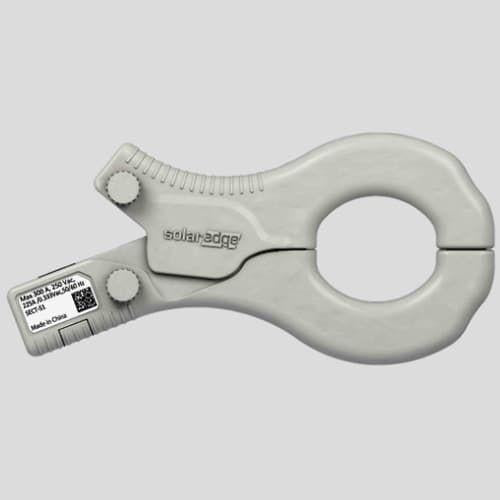

  • A SolarEdge 225A CT current sensor device, which is used for measuring electrical current, with a white or grey color, showing the brand name, model number, and other specifications.
1 3

SolarEdge 225A CT (MOQ: 1 Box of 20 pcs); 5 year warranty included

$42.06 USD
$42.06 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Voltage: 600 VAC
✔️ Features: Slim split-core clamp design for easy, non-invasive installatio
✔️ Warranty: 5 years

The SolarEdge SECT-SPL-225A-T-20 is a slim split-core current transformer (CT) used with compatible SolarEdge energy meters and inverters to accurately measure electrical current for energy consumption, production, and grid import/export monitoring. Its split-core clamp design allows for quick installation without disconnecting existing wiring.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SolarEdge 225A CT (MOQ: 1 Box of 20 pcs); 5 year warranty included

    Boosts customer satisfaction by enabling real-time energy insight for greater electricity savings
    Increases installer revenue by creating more opportunities to expand system size or add smart capabilities like batteries, EV charging and smart energy devices
    High system accuracy (with SolarEdge meters) of +1.25%
    Clamp and split-core design, with single-handed installation
    Supports CT paralleling, enabling measurements of more load conductors
    Includes 17ft twisted pair cable, eliminating need for extension cable and additional labor when installing inverters with built-in consumption meter
    Simplified support and logistics with a single vendor

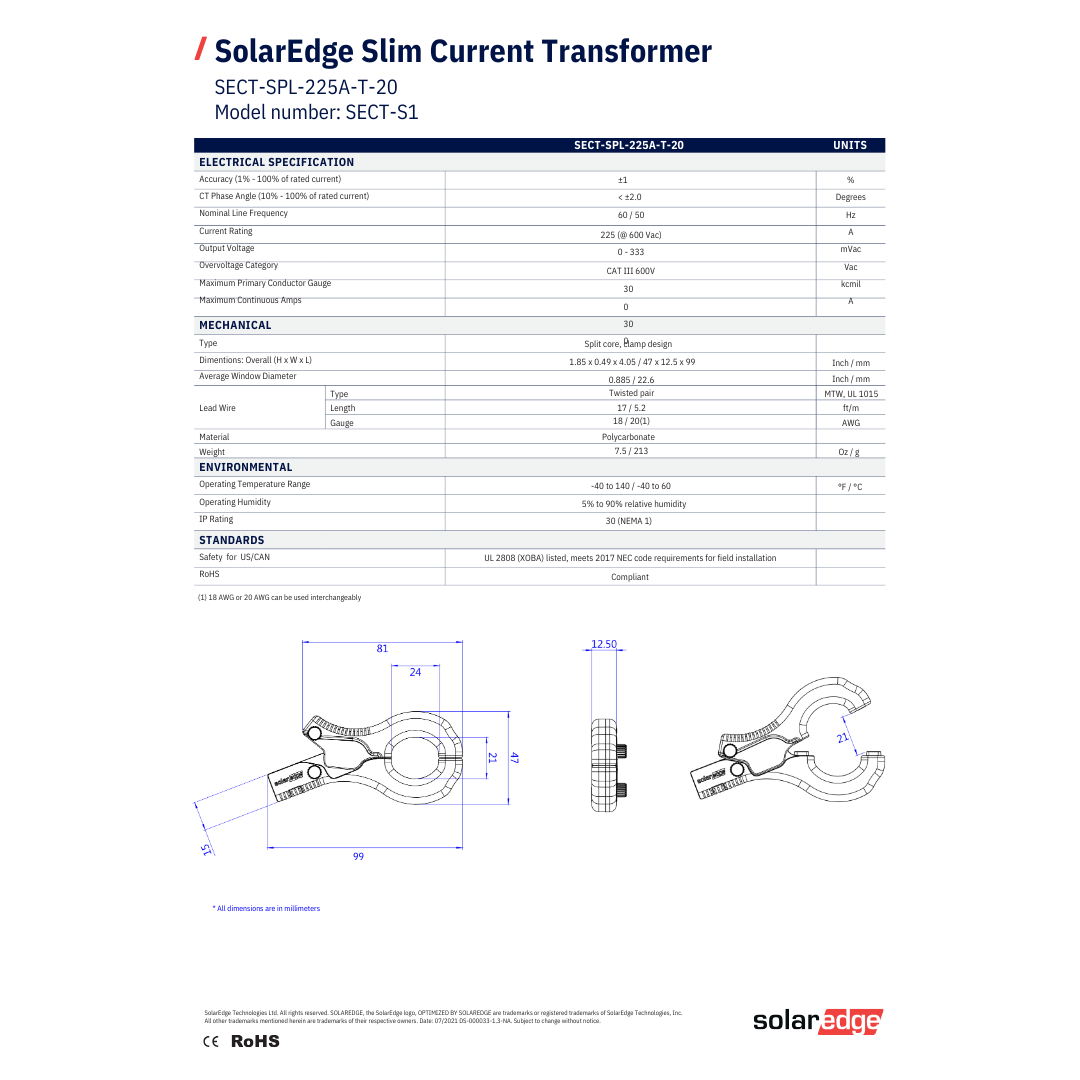

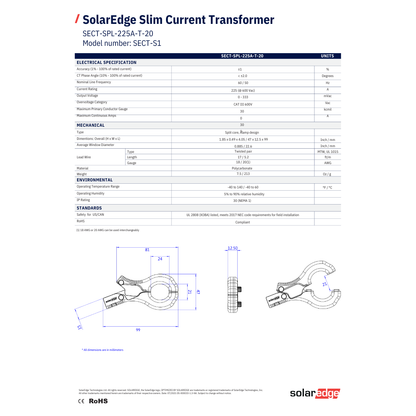

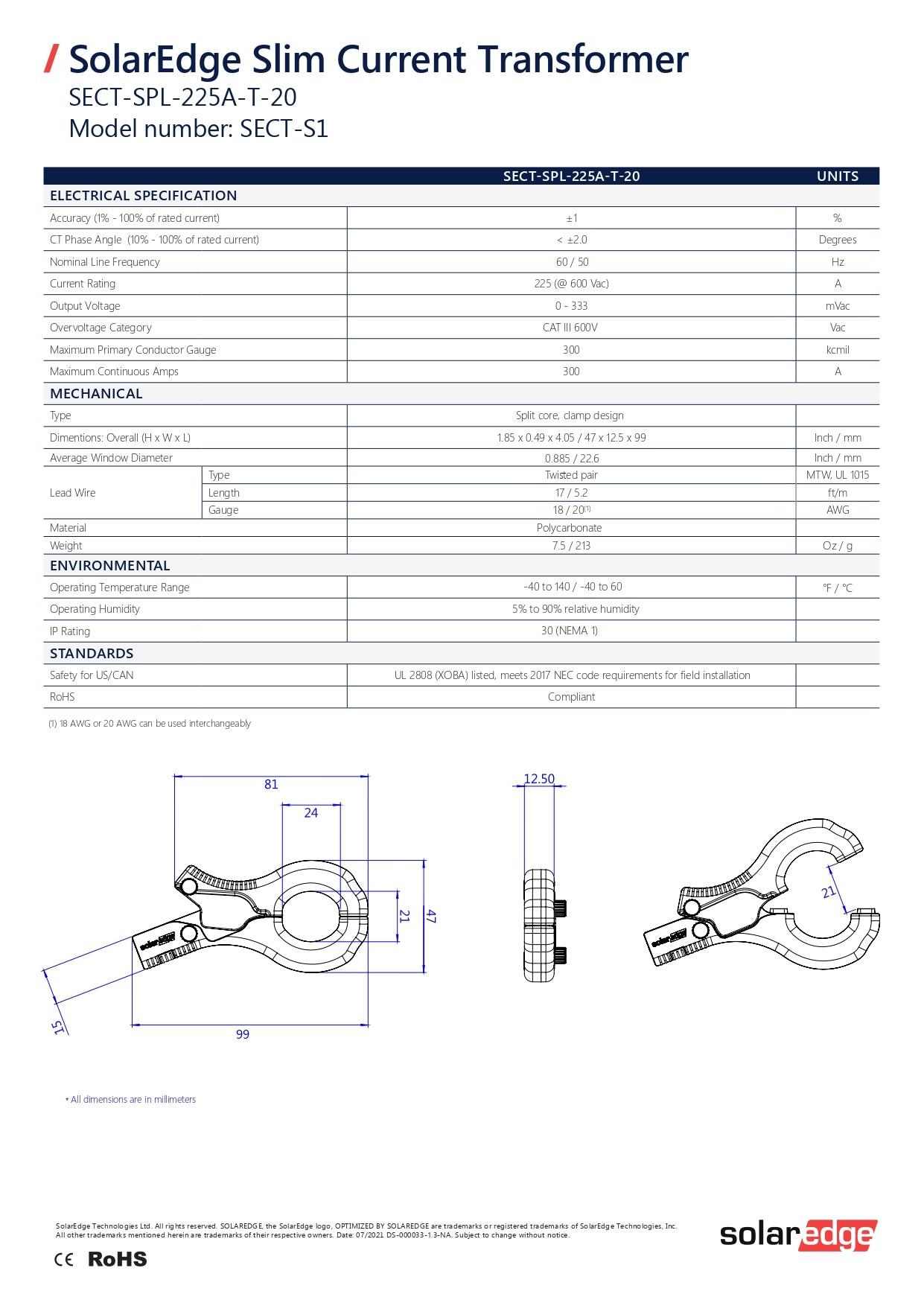

    Technical Specifications

    • Accuracy (1%-100% of Rated Current): ±1 %
    • CT Phase Angle (10%-100% rated current): <±2.0 Degrees
    • Nominal Line Frequency: 60/50 Hz
    • Current Rating: 225 (@ 600 Vac) A
    • Output Voltage: 0-333 mVac
    • Overvoltage Category: CAT III 600V Vac
    • Maximum Primary Conductor Gauge: 300 kcmil
    • Maximum Continuous Amps: 300 A
    • Dimension (H x W x L): 99 x 12.5 x 4 mm
    • Weight: 0.46 lbs

  • Resources

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

    Warranty

    5 Year Warranty


Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
