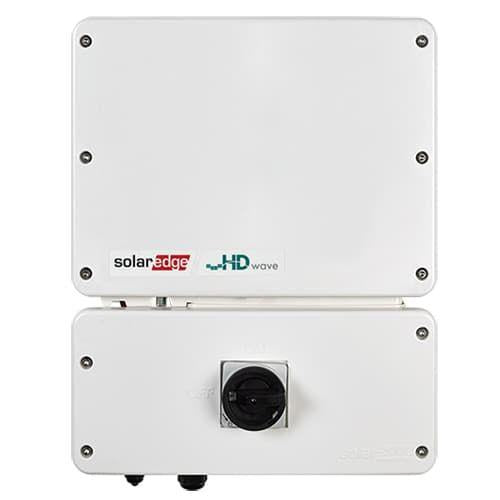

SolarEdge Single Phase Energy Hub 7.6kW

SolarEdge Home Hub Inverter For North America SE7600H-US

Record-breaking 99% weighted efficiency with 200% DC oversizing
Supports LRA – can provide the required energy for HVAC systems starting during backup operation
Multi-inverter, scalable storage solution, with enhanced battery power up to 10kW
Integrated arc fault protection and rapid shutdown for NEC 2014 – 2023, per article 690.11 and 690.12
Embedded revenue grade production data, ANSI C12.20 Class 0.5

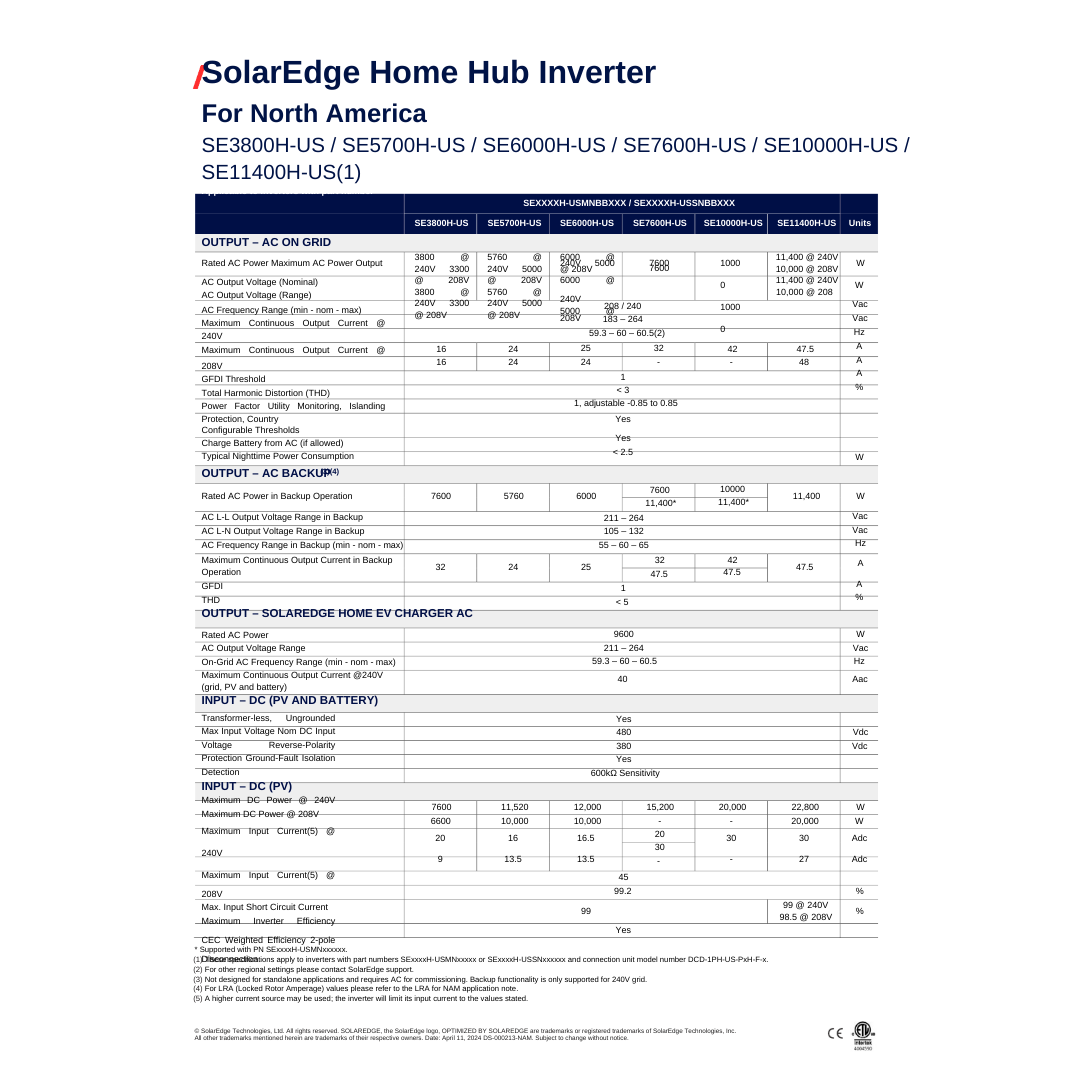

Technical Specifications

• Rated AC Power: 7600
• Maximum AC Power Output: 7600
• AC Output Voltage (Nominal): 208 / 240 Vac
• AC Output Voltage (Range): 183 – 264 Vac
• AC Frequency Range (min - nom - max): 59.3 – 60 – 60.5(2) Hz
• Maximum Continuous Output Current @ 240V: 32A
• Dimensions with Connection Unit (H x W x D): 21.06 x 14.6 x 8.2 / 535 x 370 x 208
• Weight with Connection Unit: 44.9 /
