SolarEdge SE7600H-US RGM/ Consumption Meter

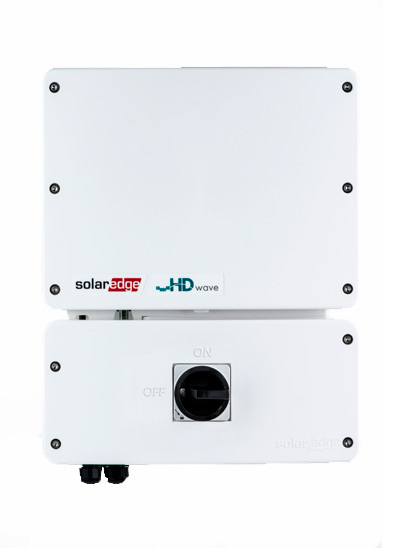

SolarEdge Energy Hub HD-Wave SE7600H-USMNBBL15 7.6KW 1-Ph Residential Inverter - 310-0011

SolarEdge, Energy Hub SE7600H-US HD-Wave, Single Phase, Grid Tied Inverter, Dual Rated 7.6kW/10kW Battery Access, 240Vac, 60 Hz, 2 Unfused Input, 12 Yr Warr, Ground-Fault/Arc-Fault Protection, RS485 and Ethernet, with 5 Year Cell plan, -40C, AC RSD, w/RGM, and Consumption Meter (Add CT’s), SetApp Enabled, UL1741-SA, SE7600H-USMNBBL15.
SolarEdge’s latest generation of single phase inverters are designed using a novel power conversion technology that is based on a distributed switching and powerful DSP processing.
The inverter is able to synthesize a clean sine wave that leads to a dramatic reduction in the magnetics and heavy cooling elements. The result is an even smaller and lighter inverter for simplified shipping and storing, and easy one-person installation. The record-breaking 99% efficiency allows more energy production for an improved ROI.

Technical Specifications:

• Specifically designed to work with SolarEdge power optimizers
• 3kW to 11.4kW range
• 99% weighted efficiency (33%-50% less losses than the market standard)
• Small, lightweight, and easy to install
• Up to 155% oversizing allowed
• High reliability due to lower heat dissipation
• Faster inverter commissioning using your smartphone with SolarEdge SetApp
• Standard 12-year warranty (extendable to 20 or 25 years)
• Built-in module-level monitoring
• Internet communication via Ethernet or wireless connectivity (using optional ZigBee® or cellular plug-ins)
• NEMA 4X – suitable for outdoor and indoor installations
• Integrated arc fault protection and rapid shutdown for NEC 2014 and 2017, 690.11 and 690.12
• Optional: Faster installations with built-in consumption metering (1% accuracy) and production revenue grade metering (0.5% accuracy, ANSI C12.20)
• All inverters are UL1741 SA certified, for CPUC Rule 21 grid compliance
