SolarEdge SE66.6K-USRP0BNU4 66.6kW Commercial Three Phase Primary Inverter- Clearance

SolarEdge SE66.6K-USRP0BNU4

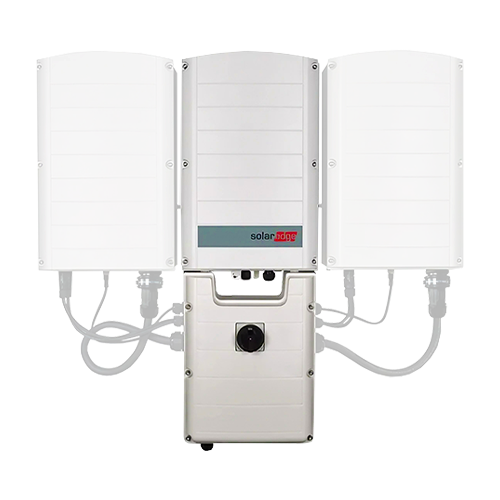

The SolarEdge SE66.6K-USRP0BNU4 is a 66.6kW Commercial Three Phase Primary Inverter designed to work with SolarEdge's Synergy Technology. This unit is the primary component of a modular inverter system that simplifies large-scale installations. Its lightweight design allows for easy, two-person installation without the need for a crane or other heavy lifting equipment. When paired with one secondary inverter unit (purchased separately), it forms a complete 66.6kW inverter system.

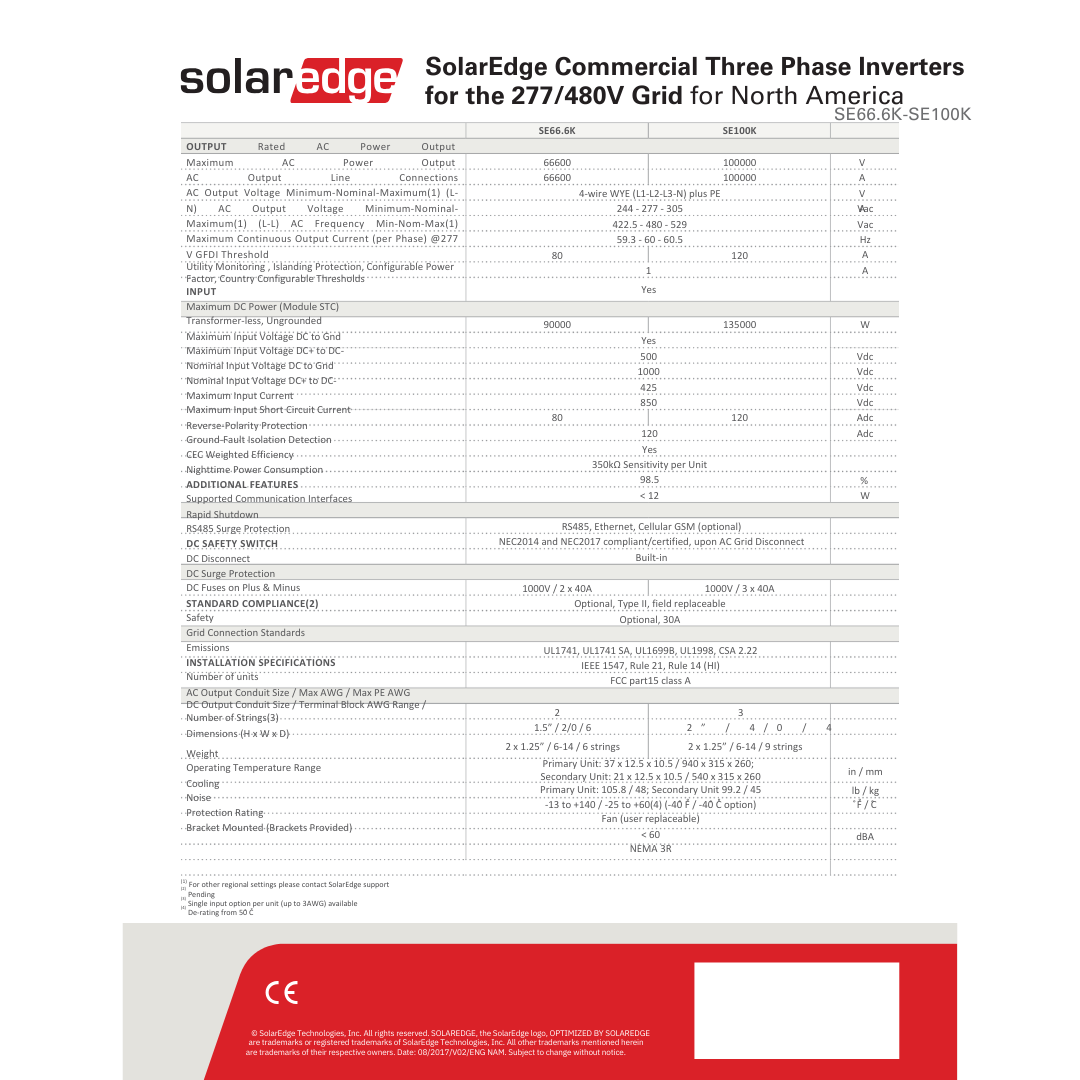

Technical Specifications:

• Manufacturer Part Number: SESU-USRS0NNN4
• UL Certificate
• Voltage: 480V
• Technology: Three-Phase String Inverter with Synergy Technology
• Max DC Power: 116,550 Watts (at STC)
• Max Input Voltage: 1000 VDC
• Dimensions (Primary Unit): 37.00 x 12.50 x 10.50 inches
• Weight (Primary Unit): 79.7 lbs
• Protection Rating: NEMA 3R (Suitable for both indoor and outdoor installation)
• Required Components: This primary unit requires one secondary inverter unit to function as a complete 66.6kW system.

• Certifications: UL 1741 SA (Rule 21), UL 1699B, UL 1998, CSA 2.22, FCC Part 15 Class A
