SolarEdge Single Phase Inverter with HD-Wave Technology, 3.0kW, Inverter with SetApp configuration

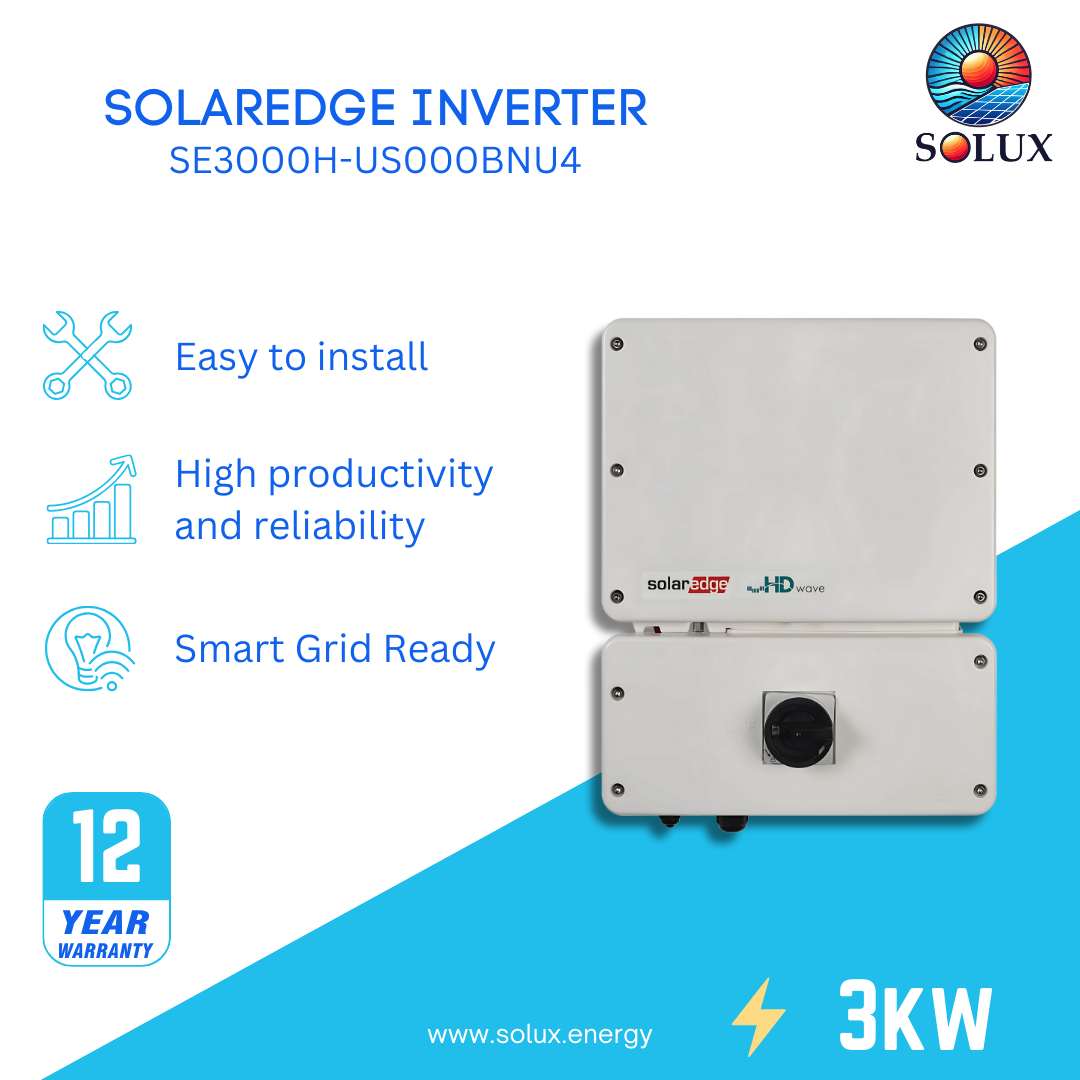

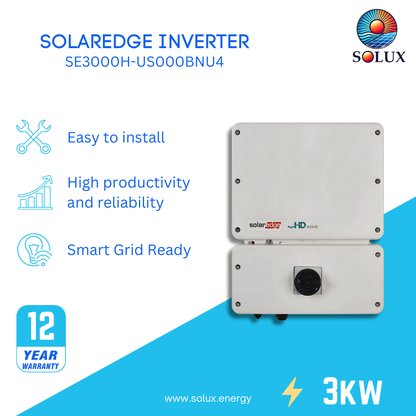

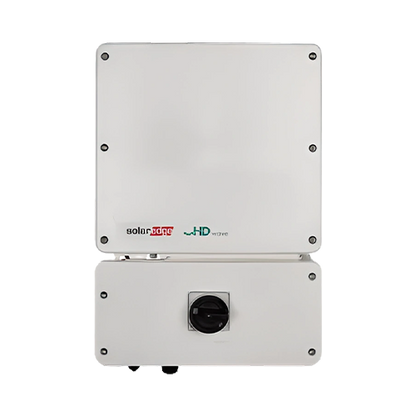

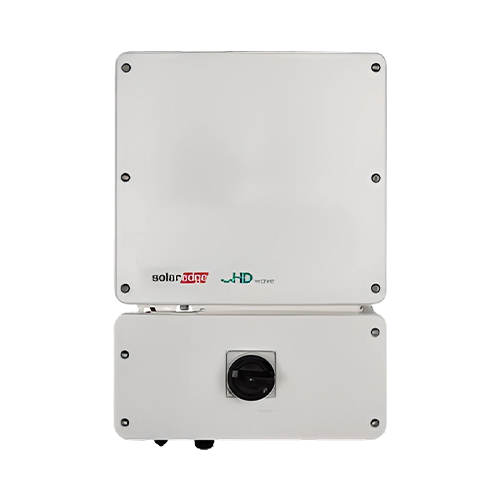

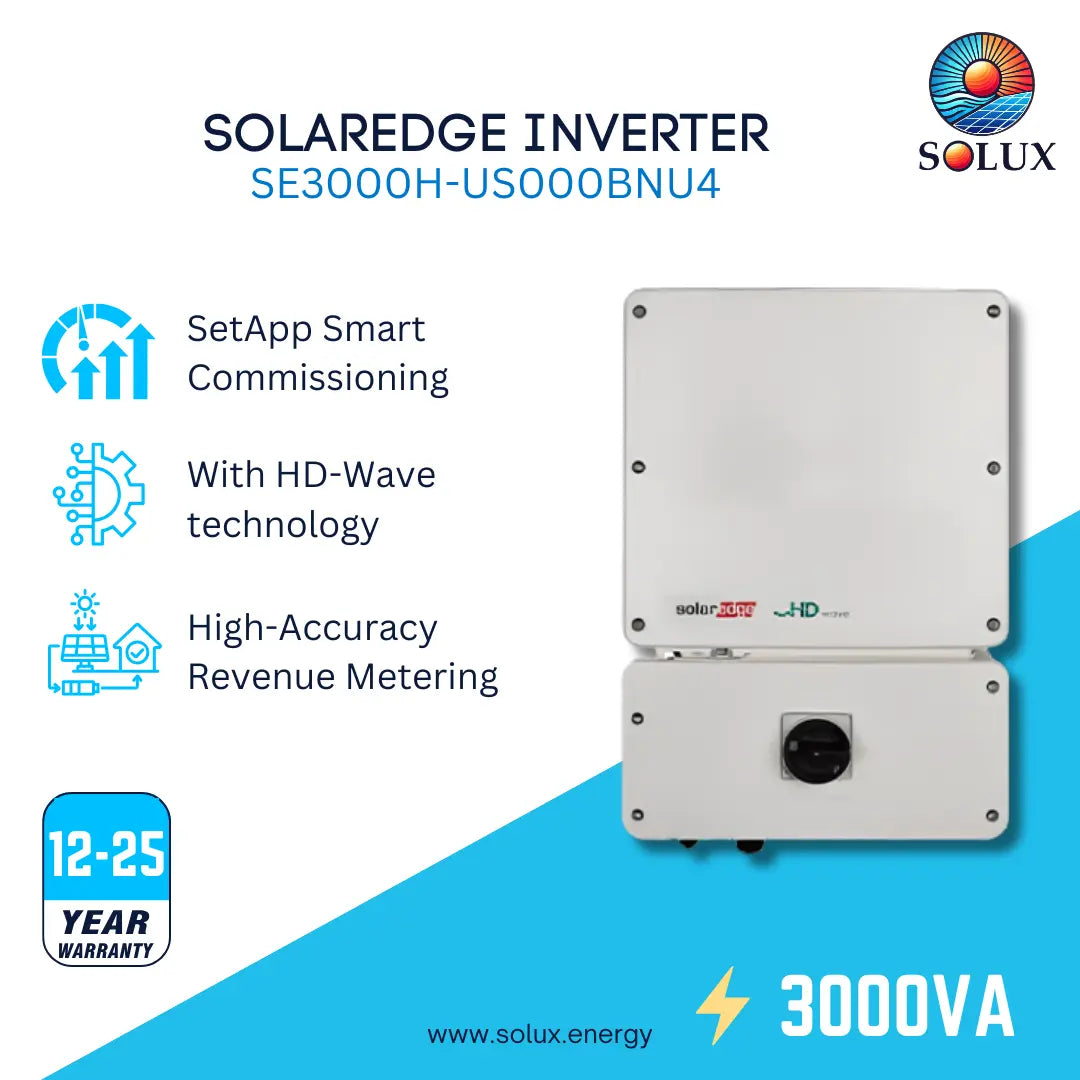

SolarEdge SE3000H-US000BNU4 3kW 240VAC Single Phase String Inverter w/ Setapp HD-Wave Technology & AFCI

The SolarEdge SE3000H-US000BNU4 single phase inverters now have a smart new commissioning method that is done directly through a smartphone using their intuitive SetApp mobile application. Inverter commissioning has never been so easy. All the information you need is in the palm of your hand so the display screen is no longer necessary! Download the SetApp application on your mobile device today.

Technical Benefits

• Built-in Module-Level Monitoring
• Indoor and Outdoor Installation
• Less Heat and High Reliability Without Any Electrolytic Capacitors

Technical Specifications:

• Technology: Single Phase String Inverter
• Dimensions: 17.70 x 14.60 x 6.80 inches
• Weight: 22.00 lbs
• Noise: < 25dBA
• Cooling: Natural Convection
• AC Output Conduit Size: 3/4" Minimum / 14-6 AWG
• DC Output Conduit Size: 3/4" Minimum / 1-2 Strings / 14-6 AWG
• Protection Rating: NEMA 4X (Inverter with Safety Switch)
• Rated AC Power Output: 3000VA
• Maximum AC Power Output: 3000VA
• AC Output Voltage: Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC
• AC Frequency (Nominal): Minimum: 59.30Hz; Nominal: 60.00Hz; and Maximum: 60.50Hz
• Maximum Continuous Output Current @240V: 12.50 Amps
• GFDI Threshold: 1
• Utility Monitoring, Islanding Protection, County Configurable Set Points: Yes
• Maximum DC Power: 4650 Watts
• Transformer-Less Ungrounded: Yes
• Maximum Input Voltage: 480VDC
• Nominal DC Input Voltage: 380VDC
• Maximum Input Current @240V: 8.50ADC
• Maximum Input Short Circuit Current: 45ADC
• Reverse-Polarity Protection: Yes
• Ground-Fault Isolation Detection: 600kΩ Sensitivity
• Maximum Inverter Efficiency: 99%
• CEC Weighted Efficiency: 99%
• Night-Time Power Consumption: < 2.5 Watts
