SolarEdge 3000W SetApp HD-Wave

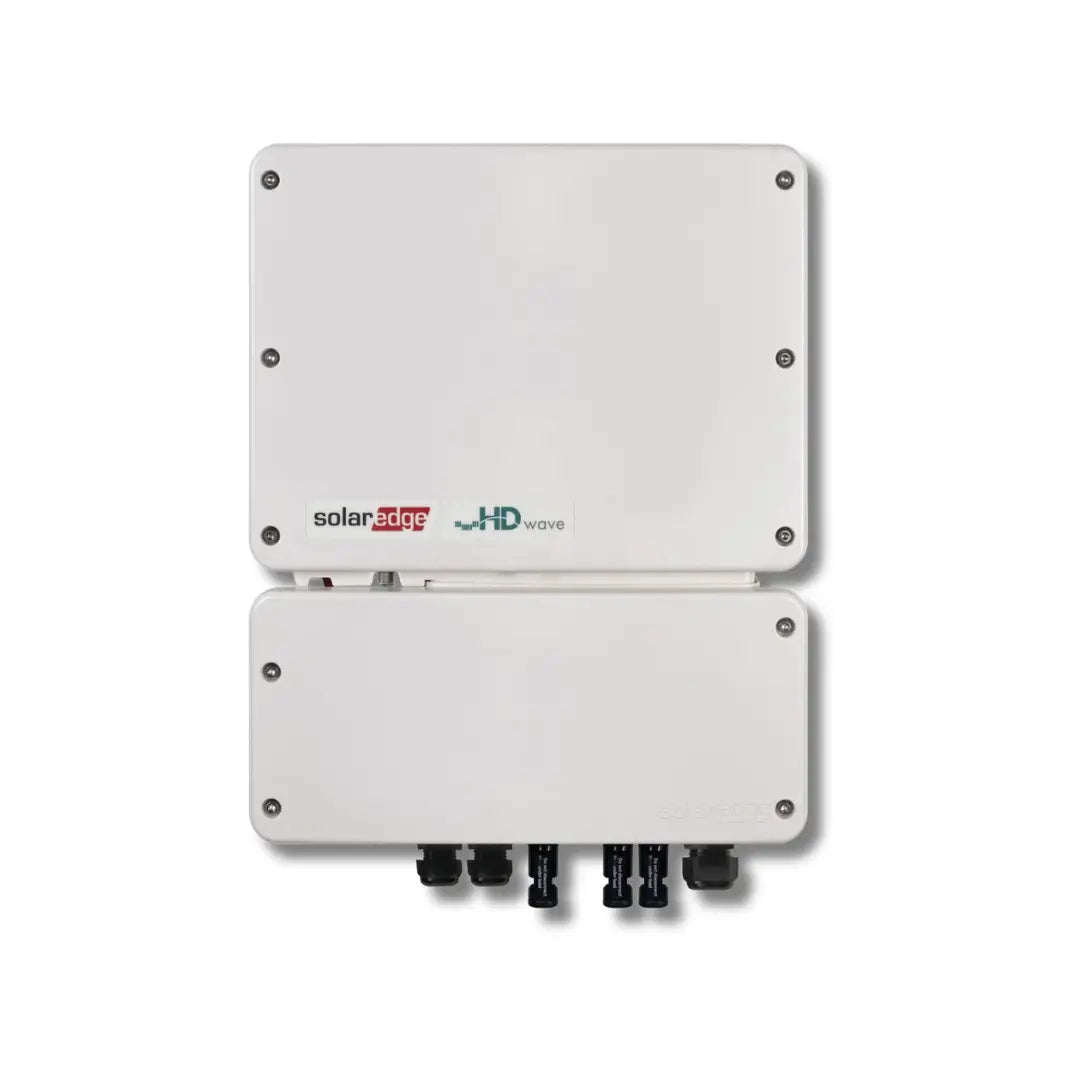

SolarEdge HD-Wave SE3000H-US000BEU4 3.0kW 1-Ph Inverter

Seamless wireless connectivity with system devices such as the SolarEdge Energy Bank battery, via optional SolarEdge Energy Net platform.
Designed to eliminate DC voltage and current during installation, maintenance or firefighting.
A single unit which manages PV, household consumption, and battery power. Simple installation and inventory management

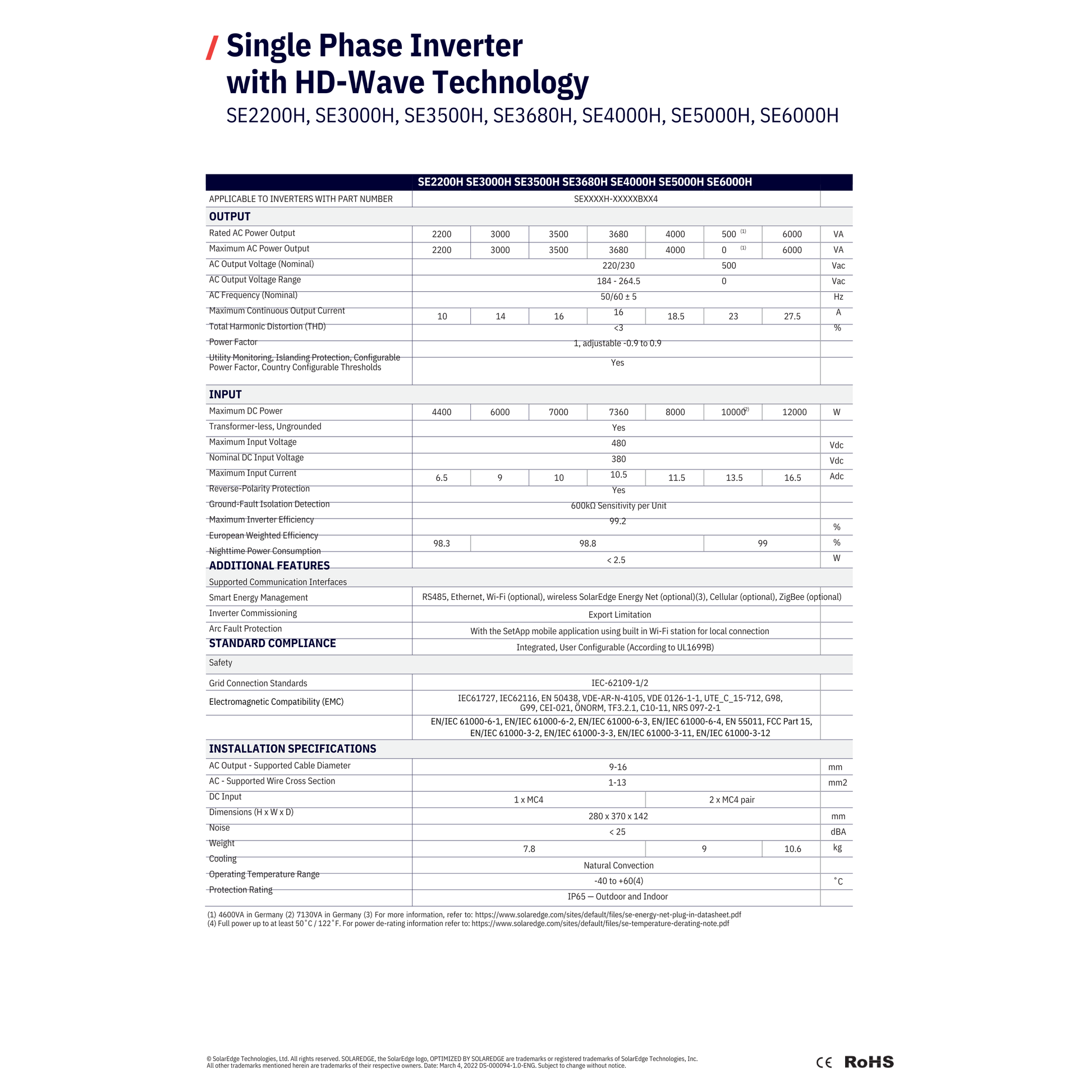

Technical Specification:

• Manufacturer Part #: SE3000H-US000BEU4
• Item Weight: 28 lb
• Dimensions (LxWxH): 16 x 10 x 22.5 inches
• Rated AC Power Output: 3000 VA
• Maximum AC Power Output: 3000 VA
• AC Output Voltage (Nominal): 220 / 230 Vac
• AC Output Voltage Range: 184 - 264.5 Vac
• AC Frequency (Nominal): 50/60 ± 5 Hz
• Maximum Continuous Output Current: 14 A
• Maximum DC Power: 6000 W
• Transformer-less, Ungrounded: Yes
• Maximum Input Voltage: 480 Vdc
• Nominal DC Input Voltage: 380 Vdc
• Maximum Input Current: 9 Adc
• Maximum Inverter Efficiency: 99.2%
