SolarEdge Energy Hub Inverter with Prism Technology SE11400H-USMNUBL75

SolarEdge Energy Hub Inverter with Prism Technology SE11400H-USMNUBL75

In June 2020, SolarEdge released the newest edition of their product line, the Energy Hub Inverter with Prism Technology. The Energy Hub is an energy-backup inverter that functions similar to a conventional string inverter but is battery-compatible.
This means that the user can save unused solar energy during the day for later (i.e., the nighttime). Without energy storage, solar energy goes to waste if it’s unused at the time of production - the energy either gets sent back to the grid where the user may get little to no credits.
Designed for use with SolarEdge Power Optimizers for the most efficient grid-tie inverter solar system available. We carry the latest SE11400H-US UL1741, UL1699B, certified inverters with ground-fault isolation detection and interruption compliance.
This small and lightweight inverter enables simplified shipping, storing and one-person installation. The record-breaking efficiency allows more energy production for residential grid-tie solar systems.

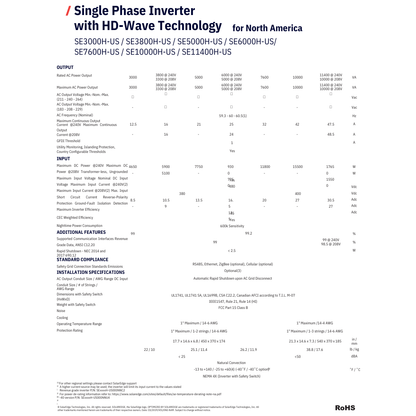

Technical Specifications:

• SolarEdge Model Number: SE11400H-US
• Rated AC Power On Grid: 11,400W @ 240V / 10,000 @ 208V
• Rated AC Power Backup: 10,300W
• Nominal Output Voltage: 240V
• Max. DC Power Input: 22800W
• Max DC Input Voltage: 480V
• Nominal DC Input Voltage: 380V
• Max. Input Current: 27.0A
• Inverter Efficiency: 99.2%
• CEC Weighted Efficiency: 99%
• Nighttime Power Consumption: < 2.5W
