Irradiance sensor 0-1.4V

$436.08 USD
$436.08 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The SolarEdge irradiance sensor is used to measure both temperature and wind measurements to ensure optimal system performance.
All orders are subject to product availability. We verify stock before processing and will notify customers if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

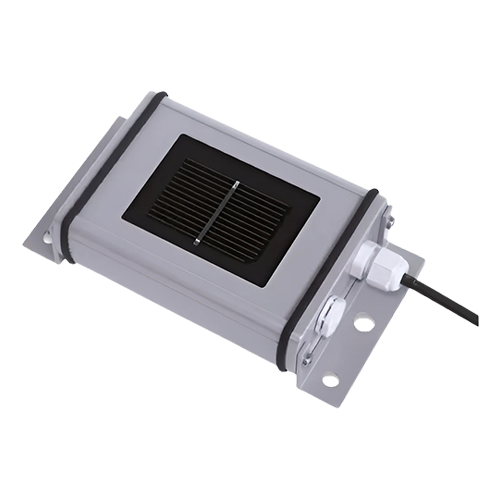

    SolarEdge SE-1000-SEN-IRR-S1 Irradiance Sensor 0-1.4V

    Used to calculate site performance ratio
    Irradiance, temperature and wind measurments
    Connect environmental sensors to the SolarEdge Control and Communication Gateway for monitoring of your site

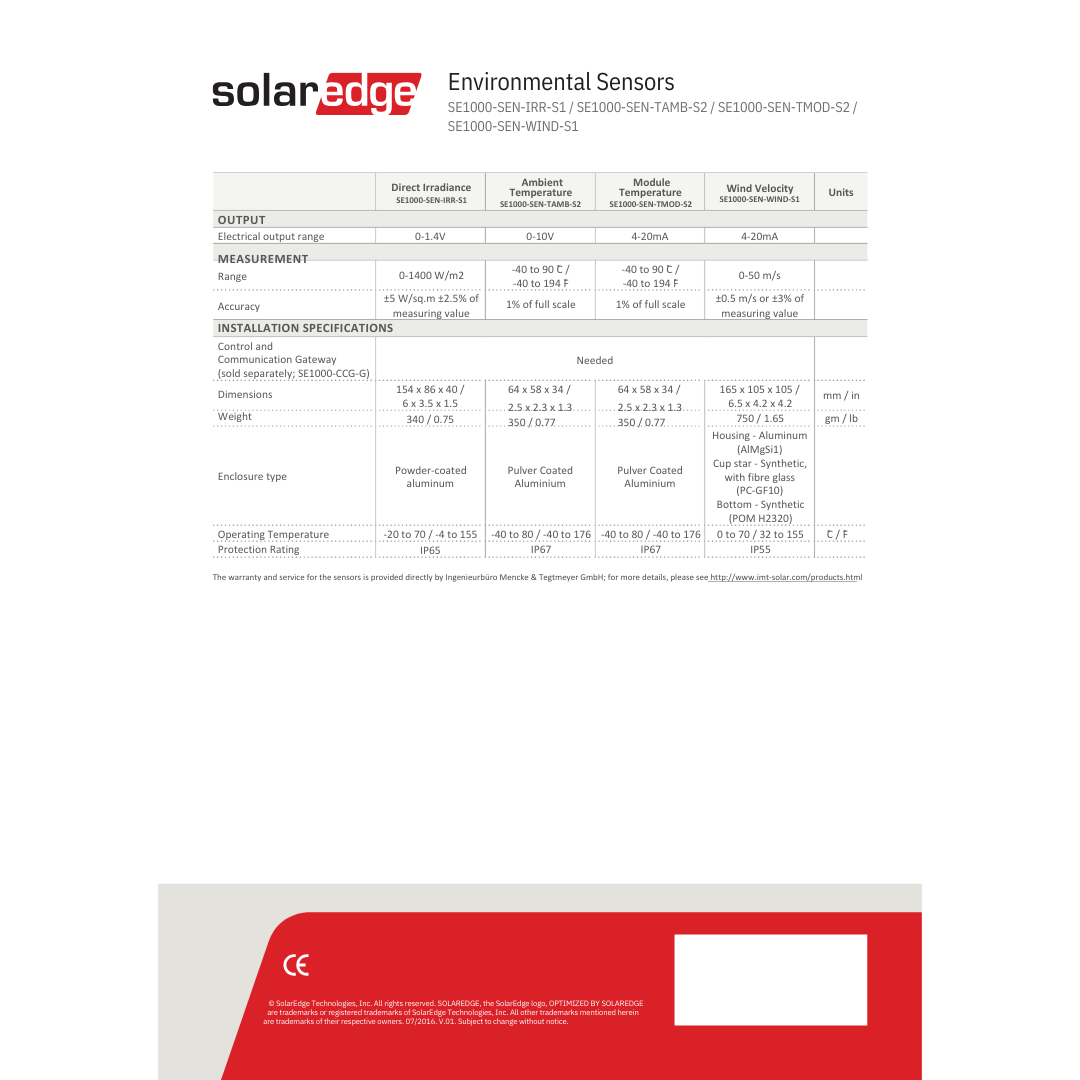

    Technical Specifications

    • Electrical Output Range: 0-1.4 V
    • Range: 0-1400 W/m2
    • Accuracy: ±5W/sq.m ±2.5% of measuring value
    • Dimension: 154 x 86 x 40 mm
    • Weight: 0.75 lbs
    • Enclosure Type: Power Coated Alluminum
    • Operating Temperature: -20 to 70 / -4 to 155 C ˚/F ˚
    • Protection Rating: IP65

  • Downloads

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
