Description
Solaredge, SE1000-DTLG-S1, Communication Data Logger

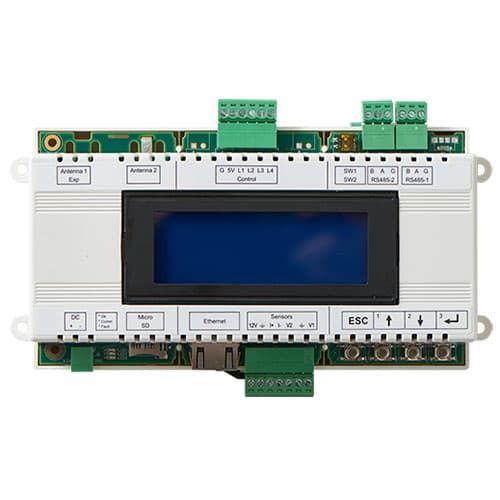

The SolarEdge Data Logger acts as a weather station in combination with environmental sensors and is enclosed in a box for outdoor protection. The Communication and Control Gateway in the Data Logger provides several wireless connectivity types, and includes an interface for controlling the power of multiple SolarEdge inverters.

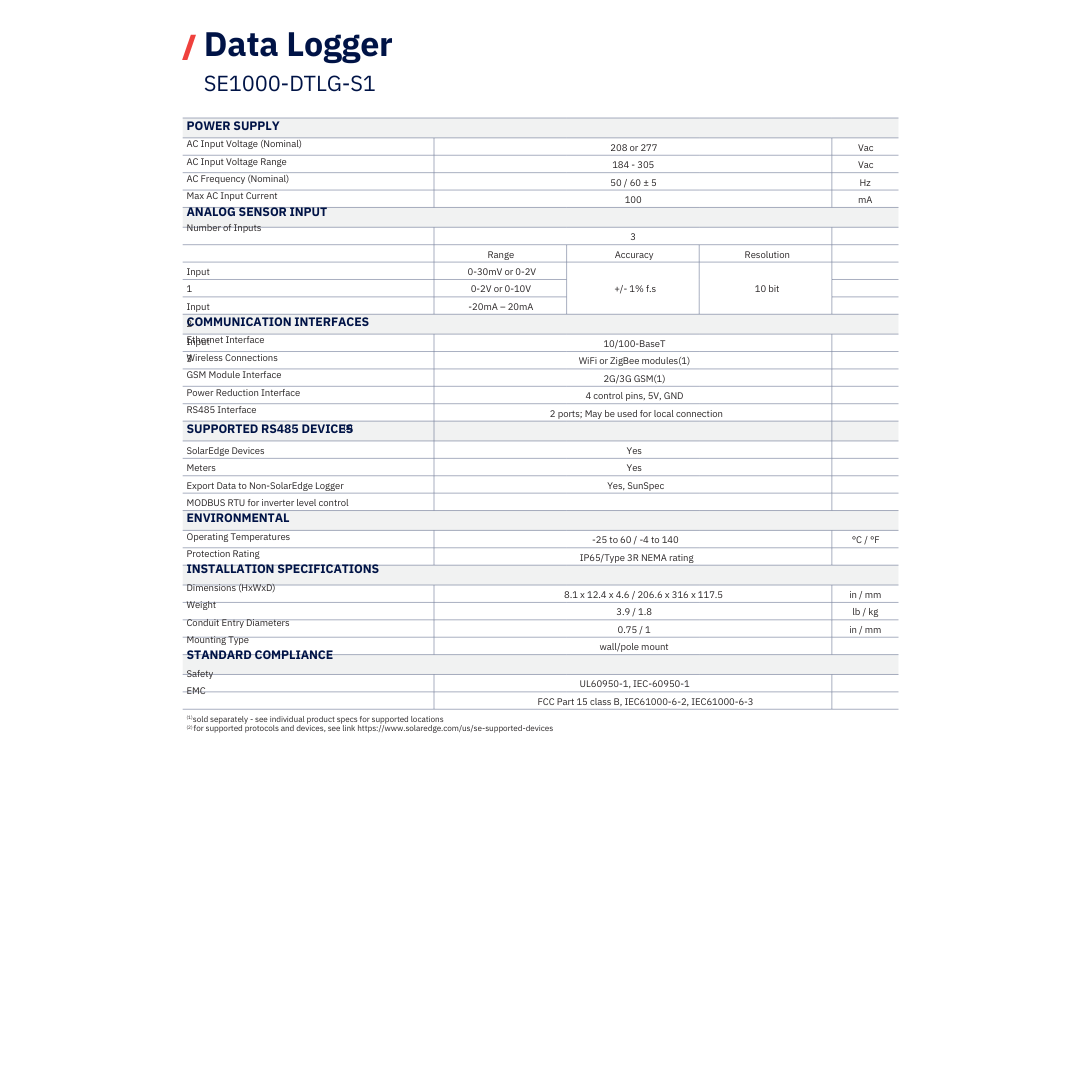

Technical Specifications:
- AC Input Voltage Nominal:: 208 or 277 Vac
- AC Input Voltage Range: 184 or 305 Vac
- AC Frequency Nominal: 50 / 60 ± 5 Hz
- Max AC Input Current: 100 mA
- Ethernet Interface: 10/100-BaseT
- Wireless Connections: ZigBee Module 1
- GSM Module Interface: 2G/3G GSM 1
- Power Reduction Interface: 4 control pins, SV, GND
- RS485 Interface: 2 ports; May be used for local connection
- Dimension (H x W x D) mm: 206.6 x 316 x 1117.5
- Weight: 3.9 lbs
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
