Description

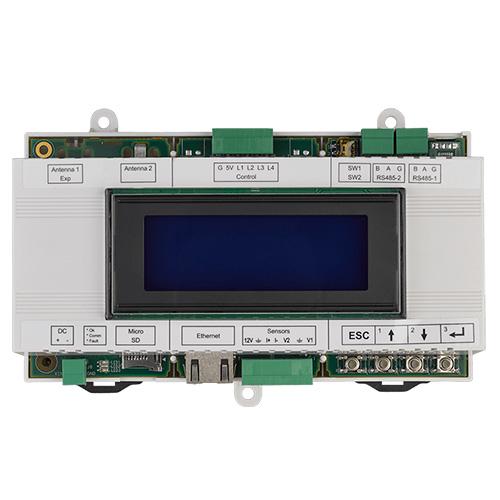

Solaredge, SE1000-CCG-G-S1, Control and Communication Gateway, for Utility Controls, wired RS485 or ZigBee connection, DIN Mount, 120V, SE1000-CCG-G-S1
It connects to SolarEdge inverters, environmental sensors, and meters, and transfers monitoring data to the SolarEdge monitoring platform and optionally, to a third-party data logger. The commercial gateway also has a power reduction interface that can control the SolarEdge inverters' power

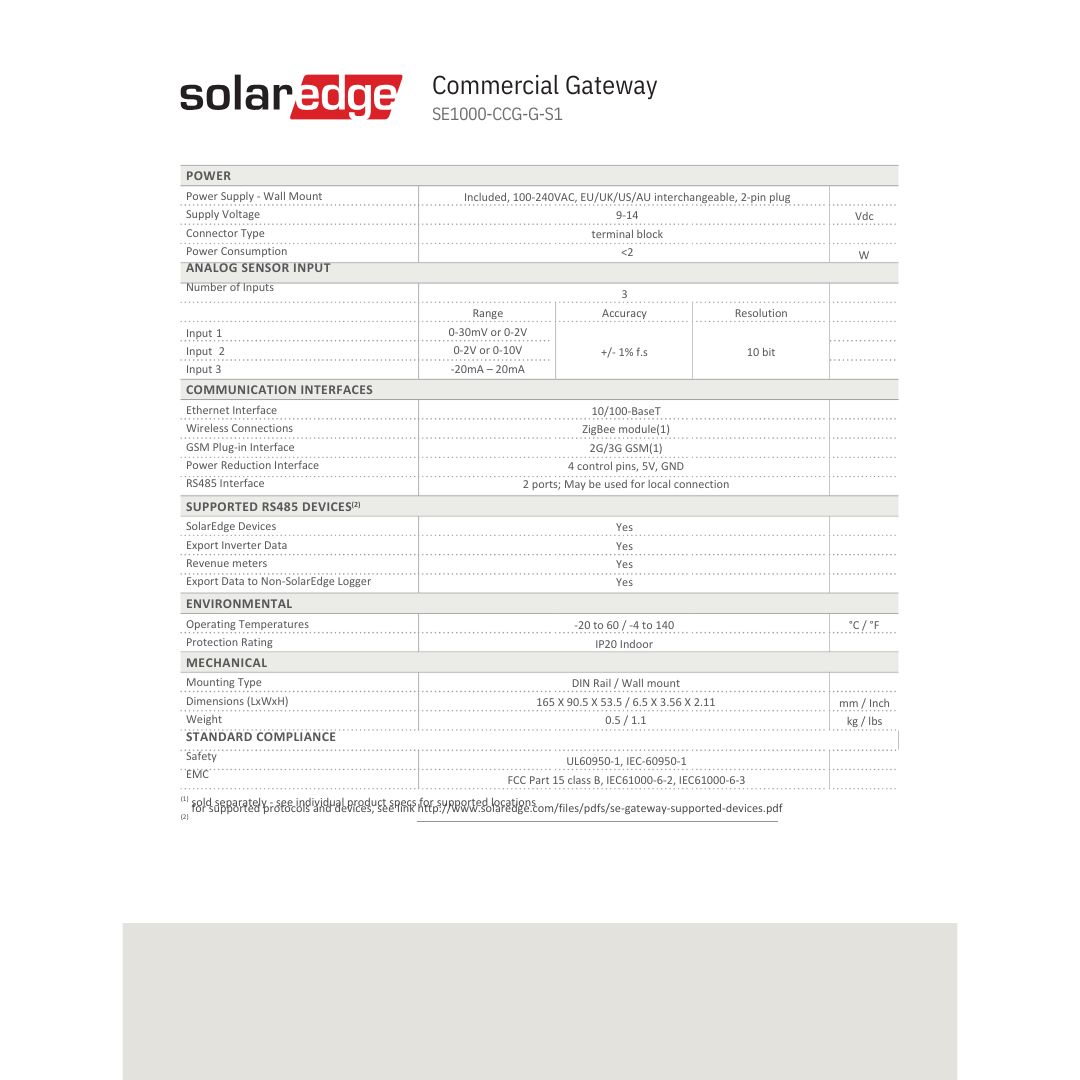

Technical Specifications:
- Power Supply - Wall Mount: Included, 100-240VAC, EU/UK/US/AU interchangeable, 2-pin plug
- Supply Voltage: 9-14Vdc
- Connector Type: Terminal Block
- Power Consumption: <2W
- Number of Inputs: 3
- Ethernet Interface: 10/100-BaseT
- Wireless Connections: ZigBee Module 1
- GSM Plug-in Interface: 2G/3G GSM 1
- Power Reduction Interface: 4 control pins, SV, GND RS485 Interface: 2 ports; May be used for local connection
- Mounting Type: DIN Rail / Wall Mount
- Dimension (L x W x H) mm: 165 x 90.5 x 53.5
- Weight: 1.1 lbs
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
