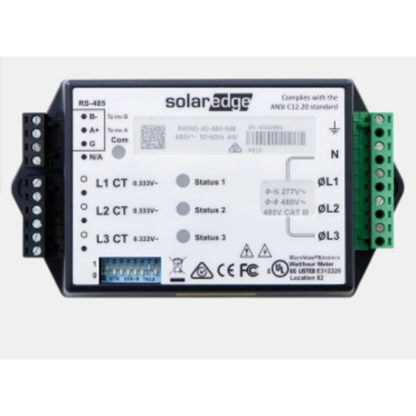

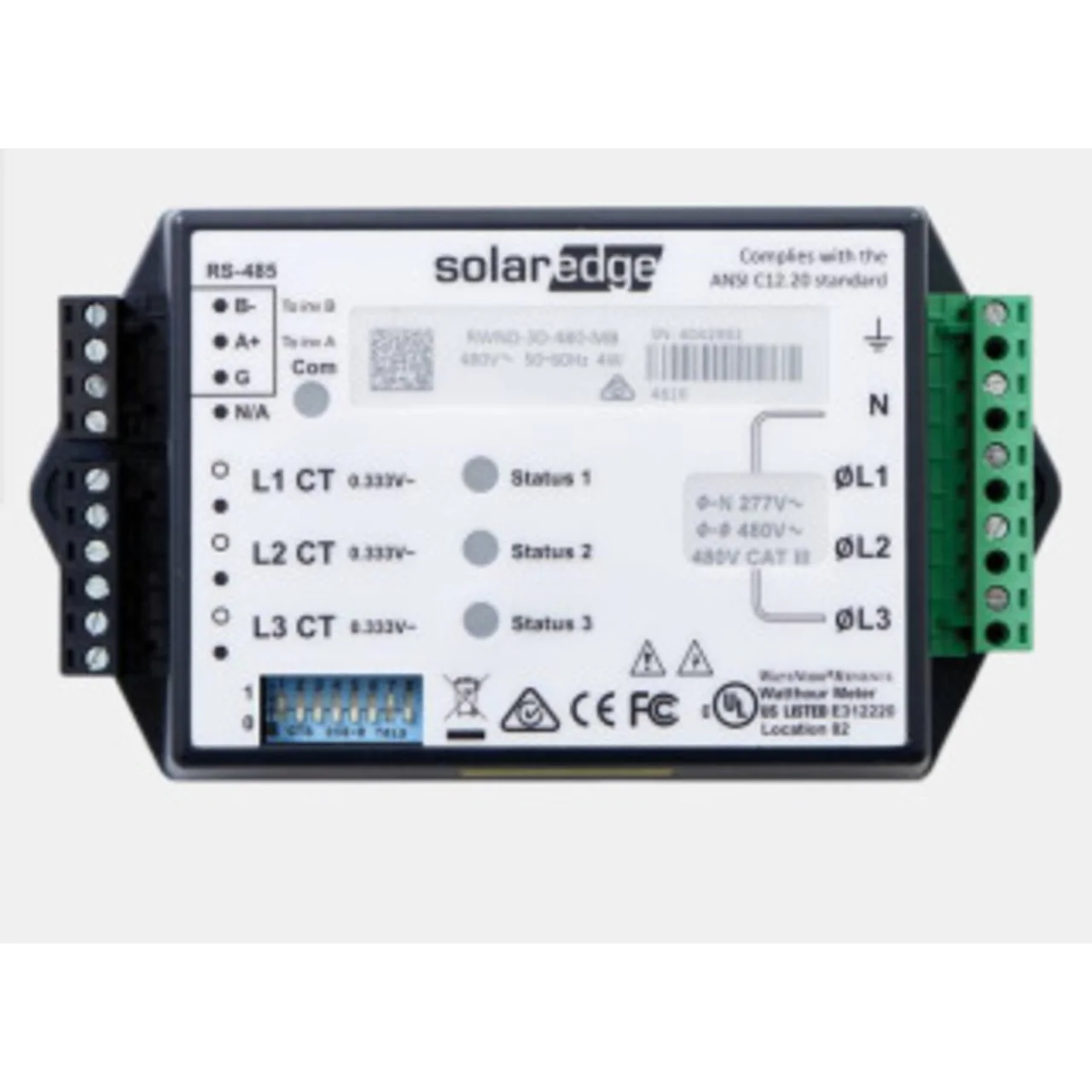

3PH Delta, 480V Meter, Commercial, ANSI C12.20 CLASS 05

3PH Delta, 480V Meter, Commercial, ANSI C12.20 CLASS 05

Supports RS485 120Ω line termination
Supports commercial and utility-size installations
Small and easy to install - fits in standard electrical panel
Communicates over RS485 to provide monitoring data
High accuracy revenue grade meter readings for production monitoring

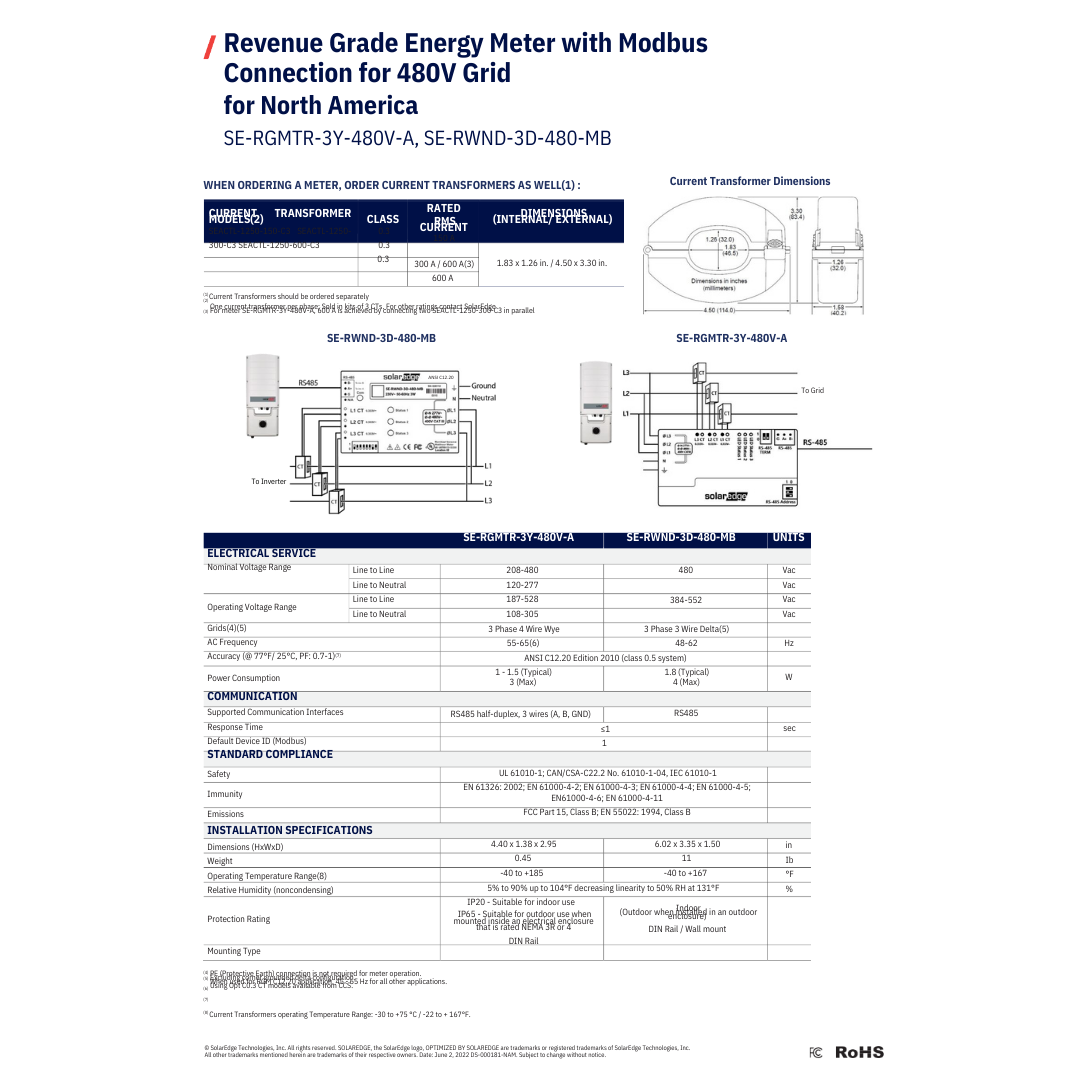

Technical Specifications

• Nominal Voltage Range (Line to Line): 480 Vac
• TOperating Voltage Range(Line to Line): 384-552 Vac
• AC Frequency: 48-62 Hz
• Grids(4)(5): 3 Phase 3 Wire Delta(5)
• MAccuracy (@ 77°F/ 25°C, PF: 0.7-1)(7): ANSI C12.20 Edition 2010 (class 0.5 system)
• Power Consumption: 1.8 (Typical) 4 (Max) W
• Dimensions (HxWxD) : 6.02 x 3.35 x 1.50 in
• Weight: 11 Ib
