  • This is an image of RS485 Modbus, Surge Protection Kit, 3PH inverters (MOQ: 1 Box of 5 pcs)
  • SE-RS485-SPD3-B-K4 lightning protection kit
1 3

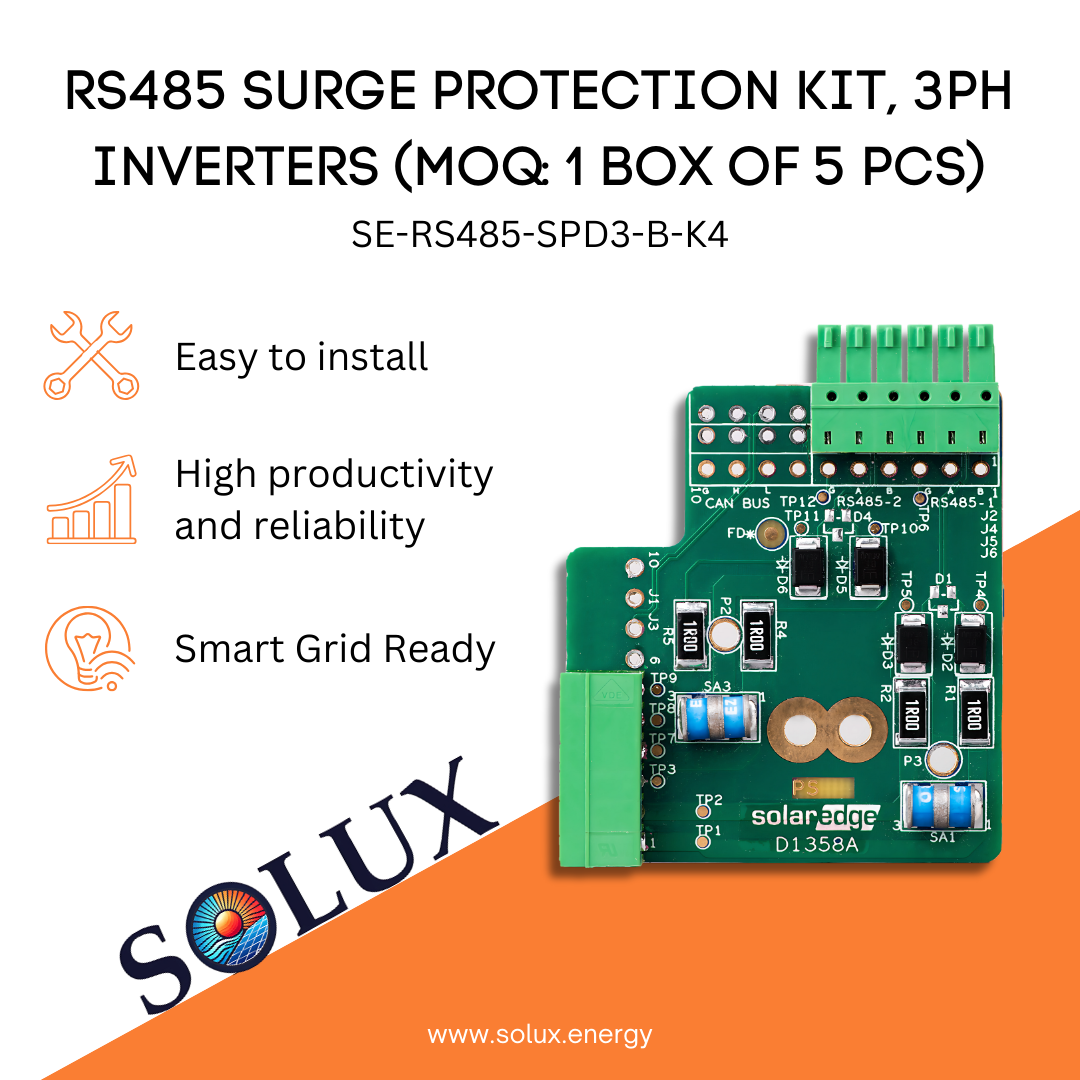

RS485 Surge Protection Kit, 3PH inverters (MOQ: 1 Box of 5 pcs)

$94.40 USD
$94.40 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

Protecting your RS485 Communication Lines.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

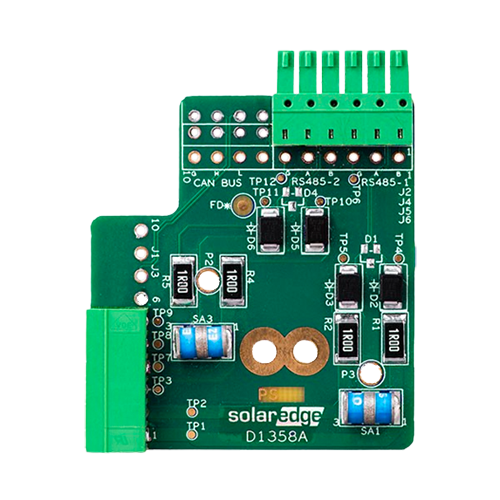

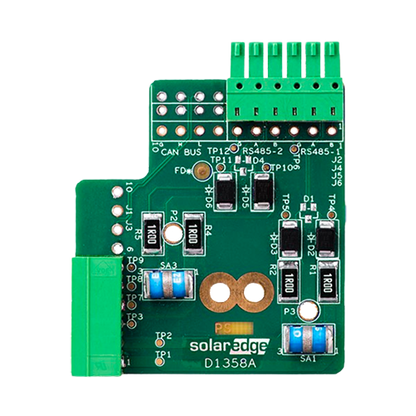

    SolarEdge SE-RS485-SPD3-B-K4 Surge Protection Kit For SetApp-IV (Box of 5 Units)

    Easy connection to each RS485 terminal block in the inverter
    Protects two RS485 buses from electrical surges, such as lightning
    Compatible with SolarEdge three phase inverters with SetApp configuration
    Can easily be added to existing installations without having to redo the RS485 wiring

    Technical Specifications

    • Number of Protected RS485 Buses: 2
    • Surge Protection Device Configuration: 1 Pair Shielded
    • Nominal Line Voltage: 12V
    • Max DC Operating Voltage: 15V
    • Max Load Current: 300mA
    • Max Frequency: >3MHz
    • Insertion Loss: <1db
    • Output Wire Type/Connector: Double Insulated; MC4 Compatible
    • Dimension: 15 x 37 x 9 mm

  • Downloads

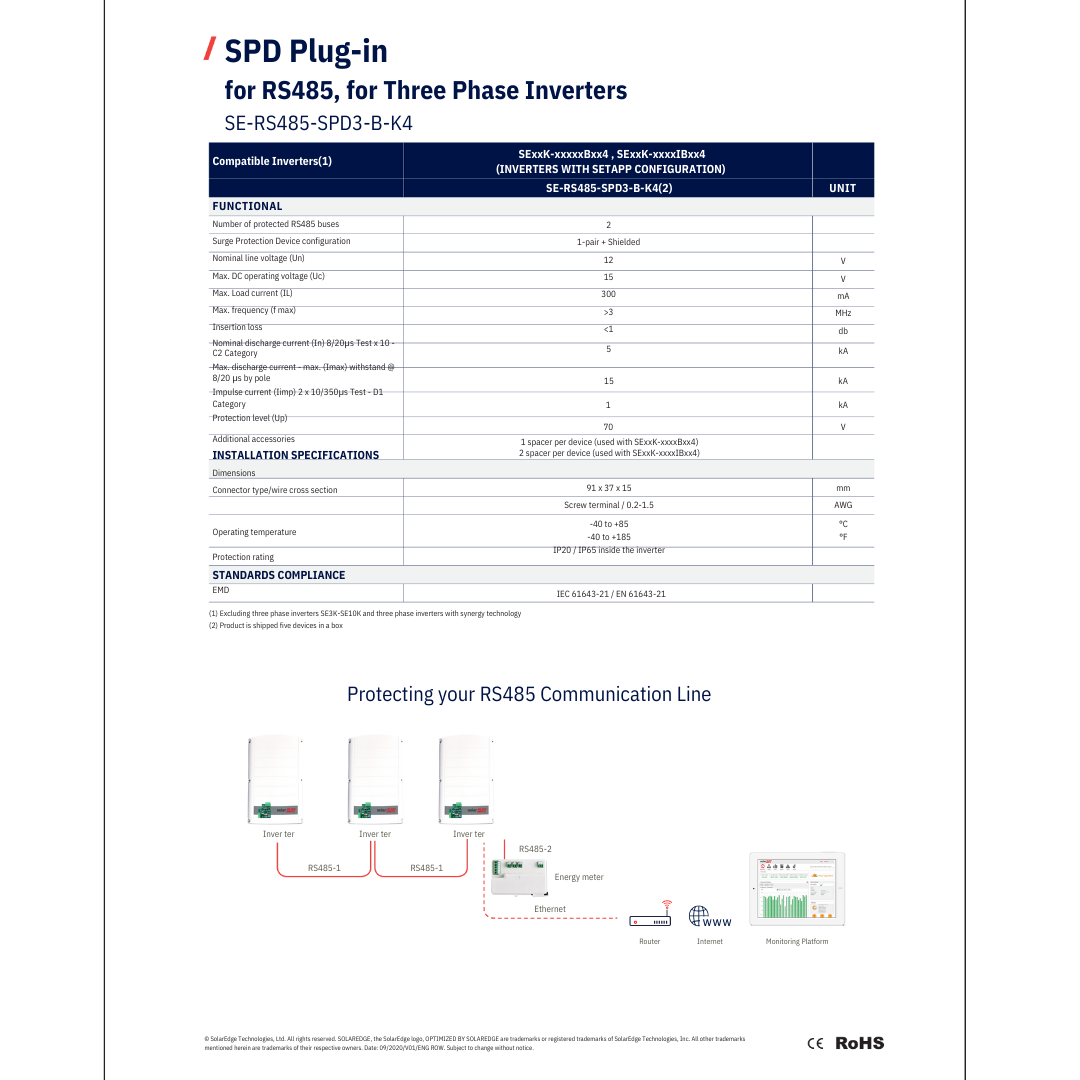

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.


Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
