Description

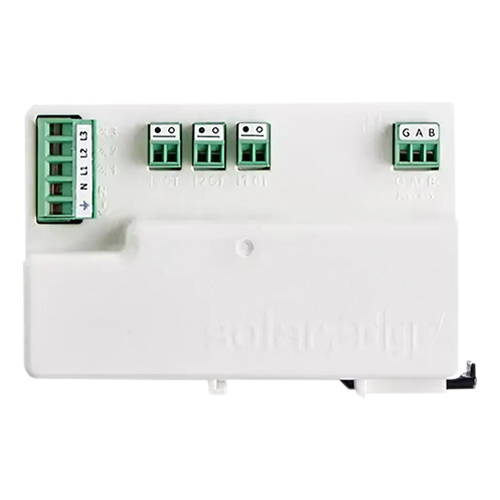

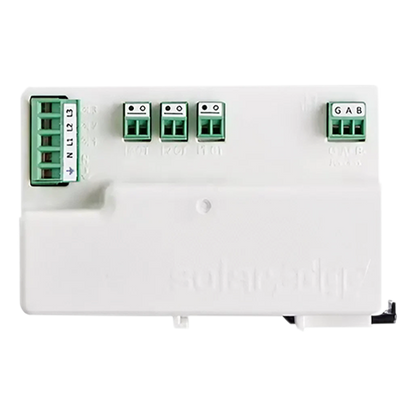

SolarEdge SE-RGMTR-3Y-480V-A Revenue Grade Meter w/ Modbus For 480V Grid
Small and easy to install - fits in a standard electrical panel
High accuracy meter readings (0.5%) for production monitoring
Supports 208V and 480V three phase commercial and utility-sized installationsTechnical Specifications
- Nominal Voltage Range Line to Line: 208-480 Vac
- Nominal Voltage Range Line to Neutral: 120-277 Vac
- Operating Voltage Range Line to Line: 187-528 Vac
- Operating Voltage Range Line to Neutral: 108-305 Vac
- Grids(4)(5): 3 Phase 4 Wire Wye
- AC Frequency: 55-65(6)Hz
- Dimensions (HxWxD) in:4.40 x 1.38 x 2.95
- Weight: 0.45lbs
-
Downloads

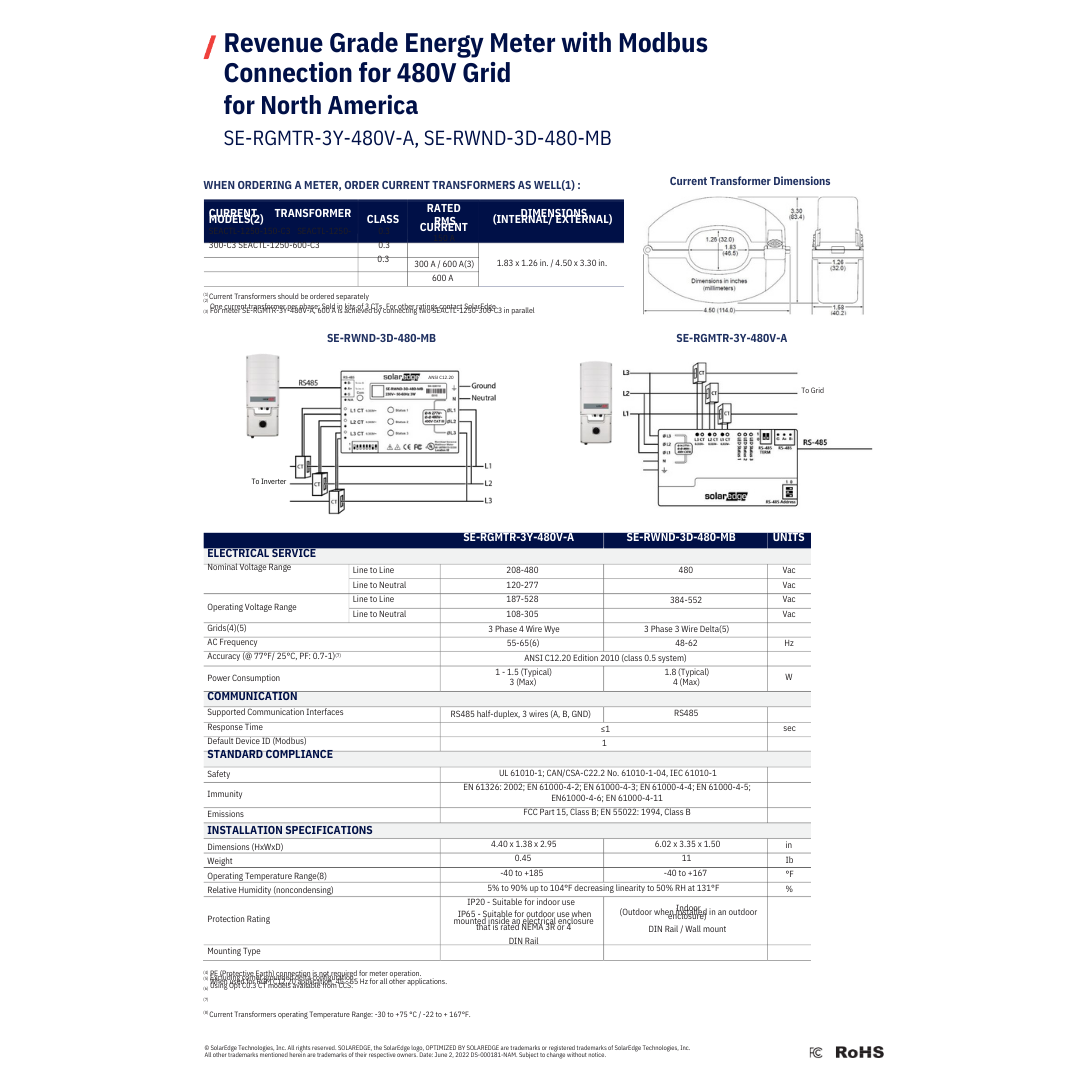

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
5 Years Warranty
Download Spec Sheet
The SolarEdge Revenue Grade Meter provides revenue grade ANSI C12.20 accuracy (0.5% of rated CT current) readings for commercial production monitoring and feed-in limitation.
