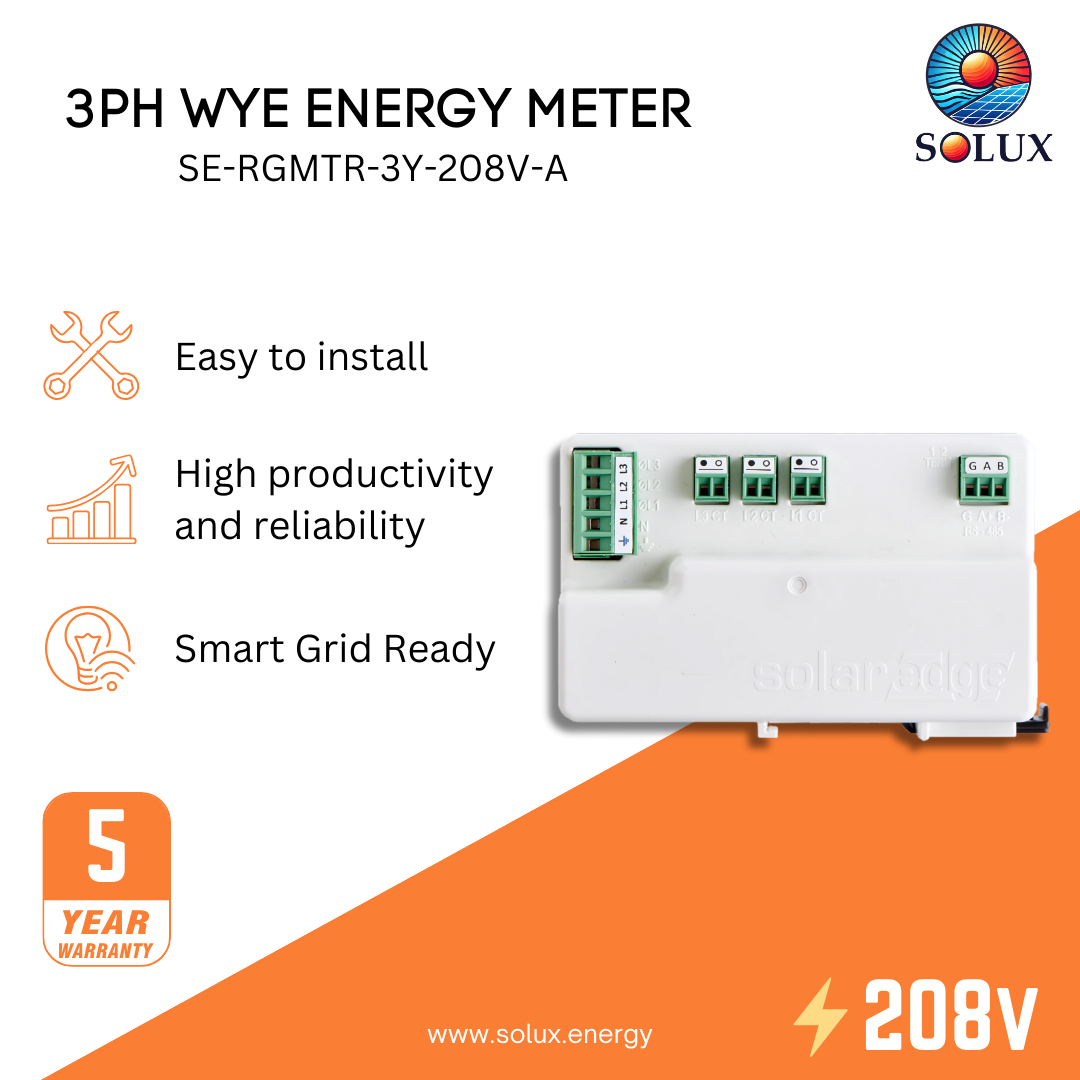

  • This is an image of Commercial Three Phase Meter: 3PH Wye 208V, ANSI C12.20 CLASS
  • SE-RGMTR-3Y-208V-A consumption meter
1 3

3PH Wye 208V Meter, Commercial, ANSI C12.20 CLASS

$503.39 USD
$503.39 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The SolarEdge Three Phase Revenue Grade Meter provides revenue grade ANSI C12.20 accuracy (0.5% of rated CT current) readings for commercial production monitoring and feed-in limitation. The meter is compatible with 150A, 300A and 600A current transformers* and communicates via RS485 to provide monitoring data.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SolarEdge SE-RGMTR-3Y-208V-A Revenue Grade Meter w/ Modbus For 208V Grid

    Small and easy to install fits in a standard electrical panel
    High accuracy meter readings (0.5%) for production monitoring
    Supports 208V and 480V three phase commercial and utility-sized installation

    Technical Specifications

    • Nominal Voltage Range Line to Line: 208-240 Vac
    • Nominal Voltage Range Line to Neutral: 120-277 Vac
    • Operating Voltage Range Line to Line: 187-264 Vac
    • Operating Voltage Range Line to Neutral: 108-305 Vac
    • Grids2: Wye Wire 4 Phase 3
    • AC Frequency: 55-65 Hz
    • Power Consumption: 1-15 (Typical) 3 (Max) W
    • Dimension (H x W x D) inches: 4.40 x 1.38 x 2.95
    • Weight: 0.45 lbs

  • Downloads

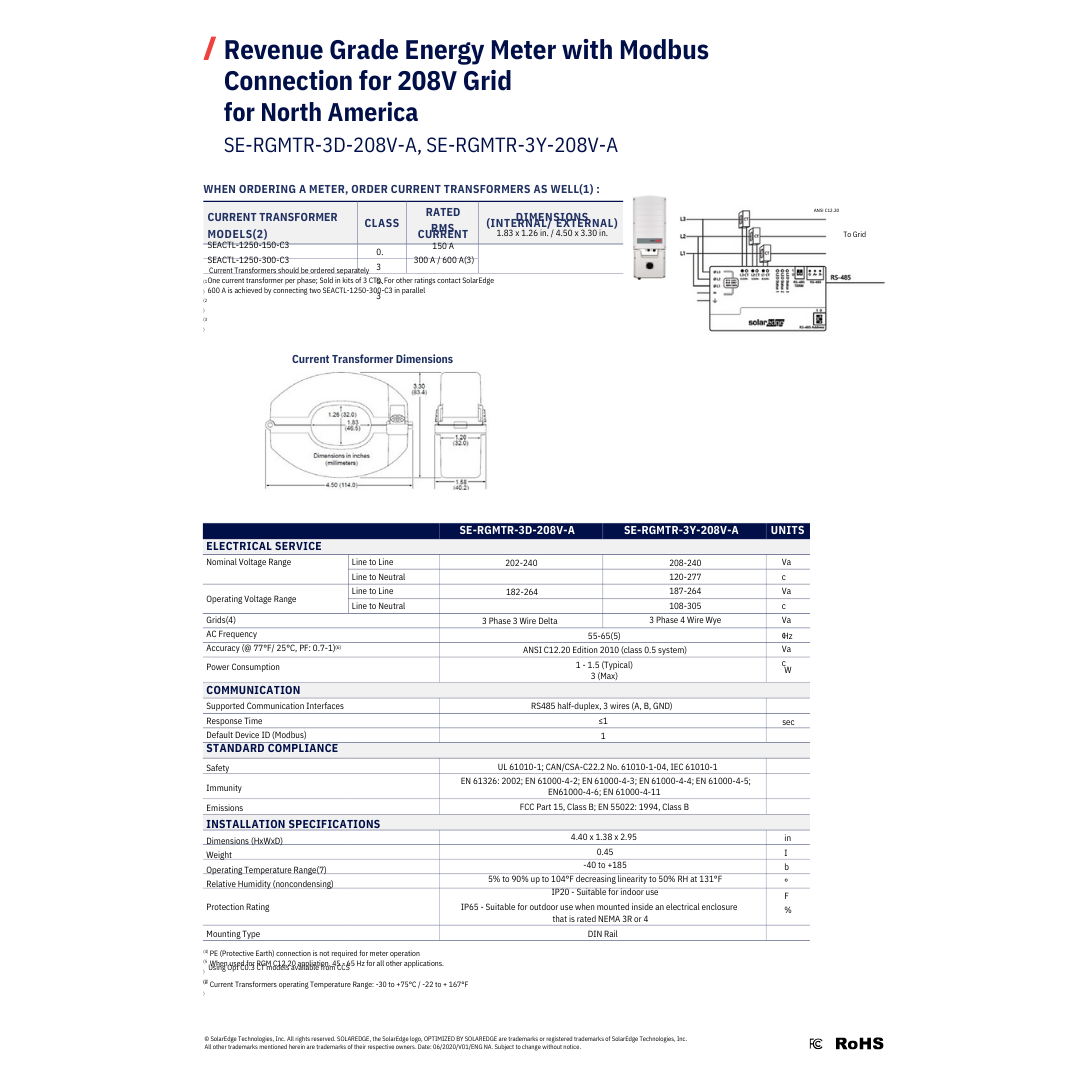

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

    Warranty

    5 Years Warranty


Download Spec Sheet

The SolarEdge Three Phase Revenue Grade Meter provides revenue grade ANSI C12.20 accuracy (0.5% of rated CT current) readings for commercial production monitoring and feed-in limitation.
