3PH Delta, 208V Meter, Commercial, ANSI C12.20 CLASS 05

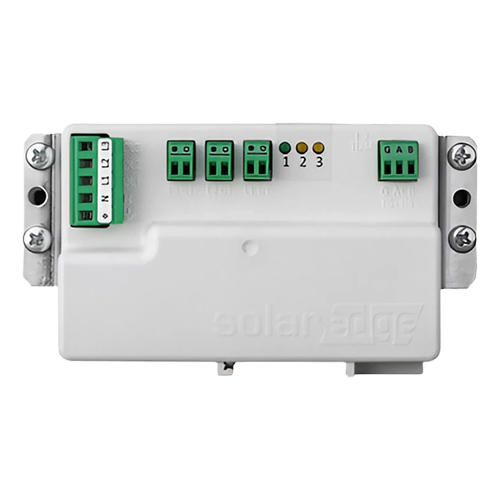

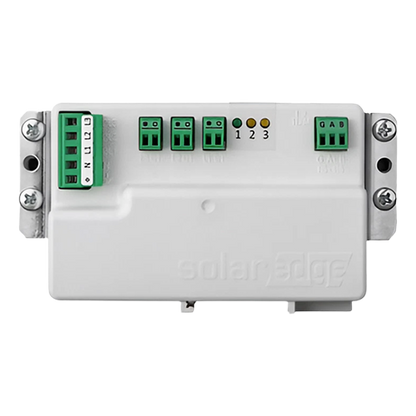

SolarEdge SE-RGMTR-3D-208V-A 208V 3-Phase Delta Grid Commercial Energy Modbus Meter

Supports RS485 120Ω line termination
Supports commercial and utility-size installations
Small and easy to install - fits in standard electrical panel
Communicates over RS485 to provide monitoring data
High accuracy revenue grade meter readings for production monitoring

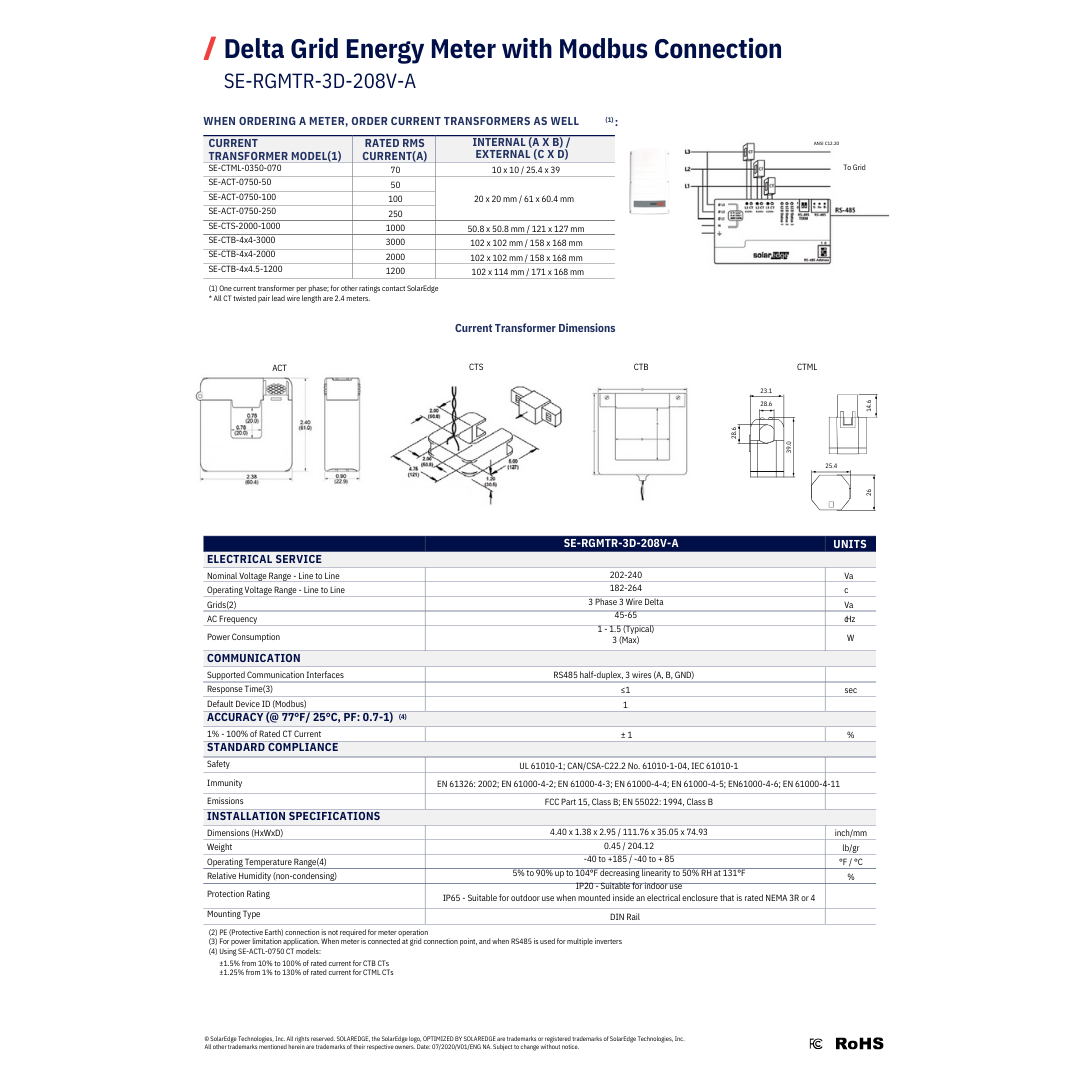

Technical Specifications

• Nominal Voltage Range Line to Line: 202-240 Vac
• Operating Voltage Range Line to Line: 182-264 Vac
• Grids2: 3 Phase 3 Wire Delta
• AC Frequency: 45-65 Hz
• Power Consumption: 1-15 (Typical) 3 (Max) W
• Dimension (H x W x D) mm: 4.40 x 1.38 x 2.95
• Weight: 0.45 lbs
