SolarEdge SE-CT-SPL-225A-T-01 225A Clamp Style Current Transformer

SolarEdge 225A Clamp Style current transformer (5 Year Warranty included). Meter and CT Sold separately. Suitable for export limitation and consumption monitoring. Not suitable for use with an RGM.

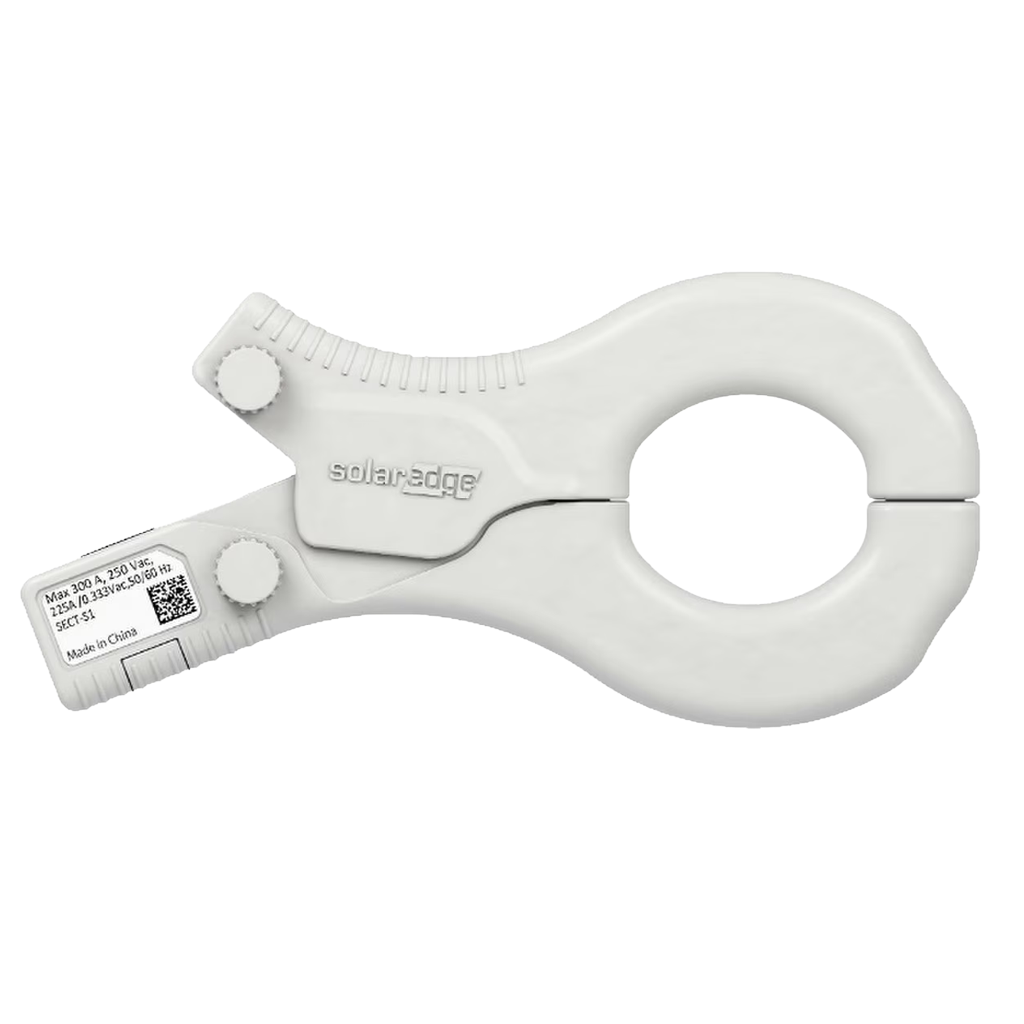

225 amp clamp style CT. Two needed with each SE-MTR240-0-000-S1 to provide accurate L1 / L2 readings. Communicates via RS485, 3-wire shielded twisted pair. Used by the meter and inverter in the following applications: consumption monitoring, export limitation, or Smart Energy Management applications. (For some backup power only applications, a meter is not required.)

Key Features:

• Manufacturer Part Number: SECT-SPL-225A-T-20
• Manufacturer Warranty: 5 Years
• Shipping Weight: .6 lb
• Shipping Dimensions: 9 x 4 x 2 in
• Case Qty: 20
• Pallet Qty: 480
