Description

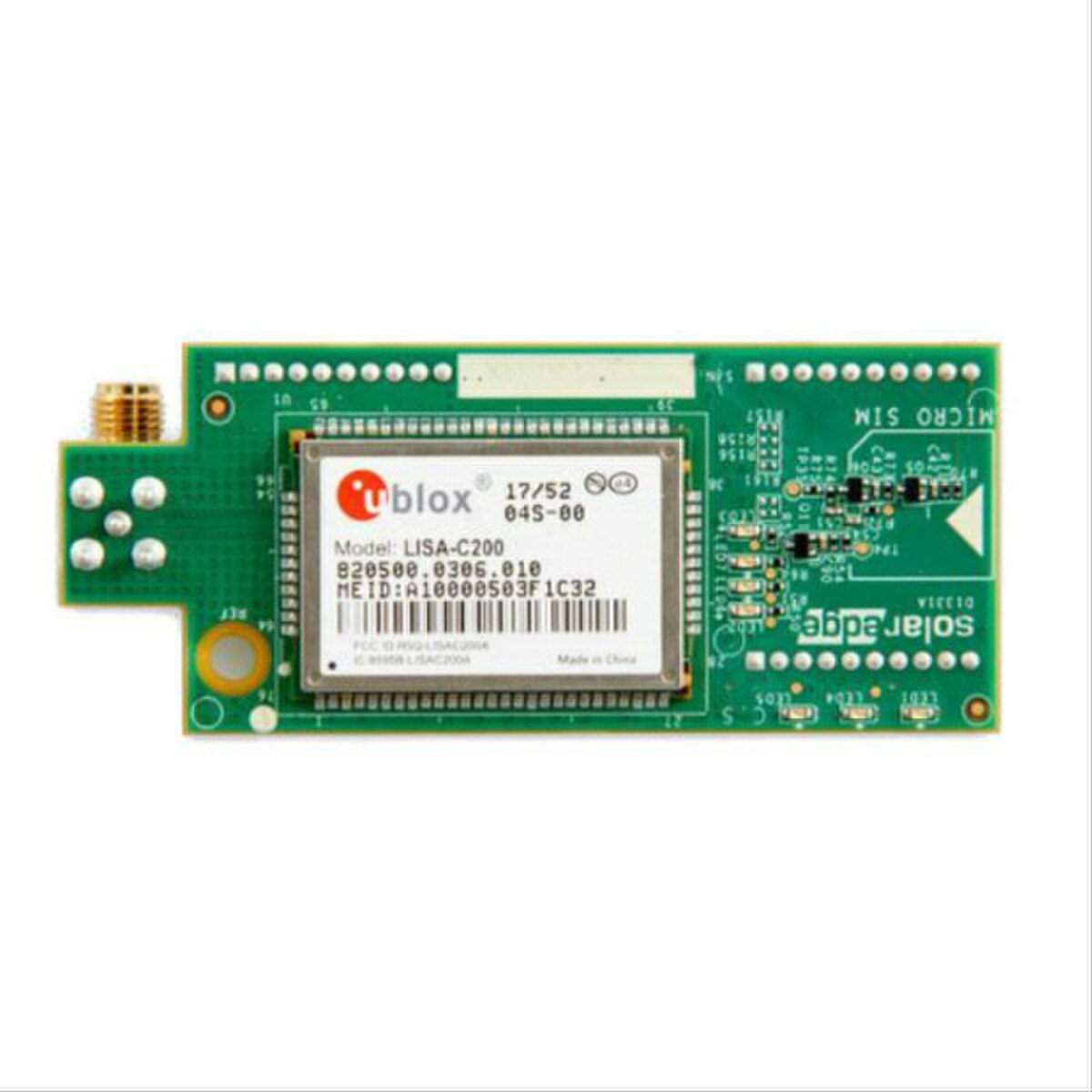

SolarEdge SetApp SE-CELL-B-R05-S-S2 Cell Kit
Connects the SolarEdge SetAPP series of residential inverters to the internet via cell signal. Reduces or eliminates the need for additional internet infrastructure delivered to inverter. Comprehensive US coverage enables remote monitoring and troubleshooting.
Technical Specifications:
- Technology: Cellular GSM Kit
- Dimensions: 3.08 x 1.26 x 0.50 inches
- Weight: 1.15 lbs
- Supported Systems: Residential Systems: One inverter, up to 45 power optimizers, and one meter. Residential StorEdge Systems: One inverter, up to 30 power optimizers, 2 batteries, and one meter
- Monitoring: Data Sampled Every 5 Minutes and sent SolarEdge server
- Operating Frequency Min-Max 850: Modem Transmit: 824-849Mhz; Modem Transmit: 869-894MHz
- Operating Frequency Min-Max 1900: Modem Transmit: 1850-1910Mhz; Modem Receive: 1930-1990MHz
- Antenna Connector: RP-SMA
- Maximum Transmit Power: 24 dBm
- Receiver Input Sensitivity: Typ. -107, Min. -106 dBm
-
