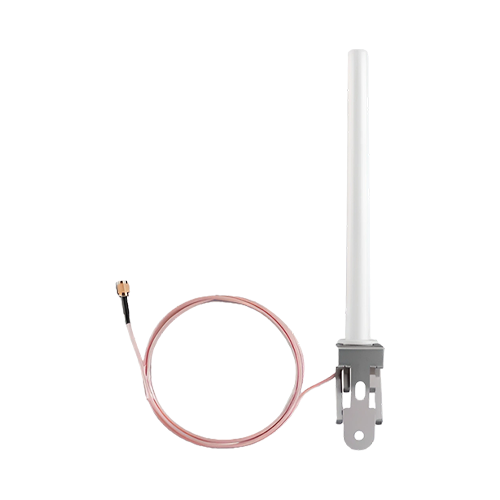

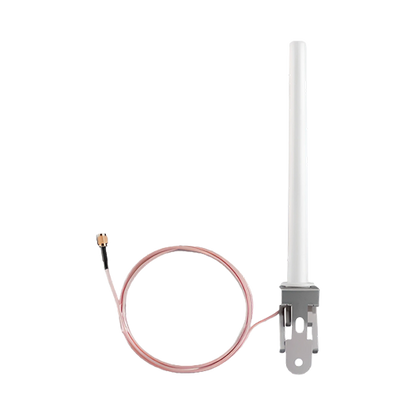

SolarEdge SE-ANT-ZB-WIFI-01 Wireless Antenna For Multi-Inverter Installations
Model number: AS4032-1
Wireless Antenna for Multi-inverter Installations.
Technical Specifications:
- Frequency Range: 2.4-2.5 GHz
- Gain (Max): 5 dBi
- Beam Width – Horizontal: 360 Degrees
- Beam Width – Vertical: 30 Degrees/li>
- Maximum Input Power: 5 W
- VSWR: 2.1:1
- Polarization: Linear
- Impedance: 50 Ohm
- Radiation: Omni Directional
- Antenna Type: Co-linear Dipole
- Antenna Design: Dipole Array
- Application: Indoor / Outdoor
- Dimension (Height x Diameter): 7.9 x 0.8 / 200 x 20 In / mm
- Weight: 0.11 / 50 lbs / g
- Cable: RG316
- Connector: RP SMA
-
Downloads

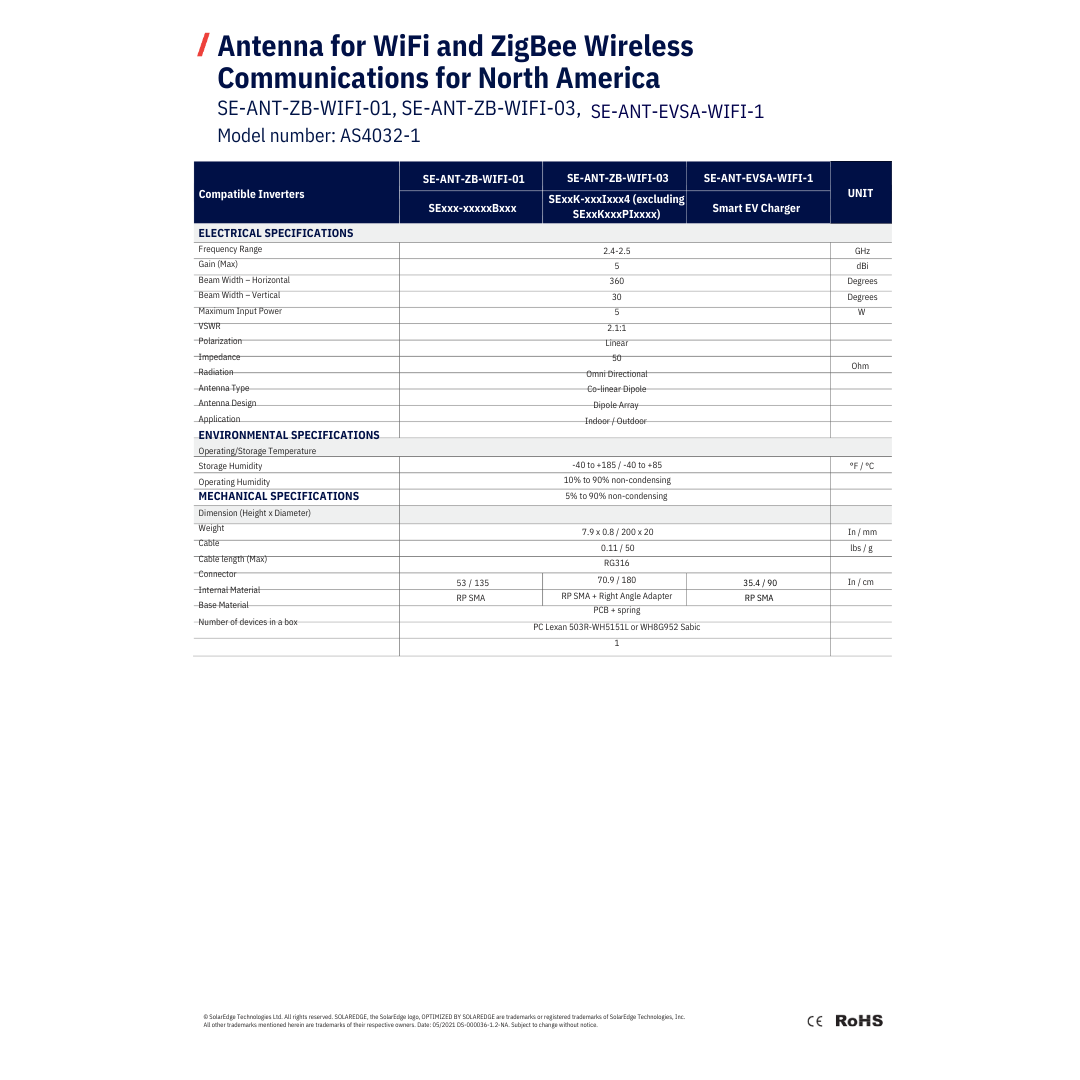

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
5 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
