Enphase SC200D111C240US01 IQ System Controller 3 Microgrid Interconnect Device

Enphase SC200D111C240US01 IQ System Controller 3 Microgrid Interconnect Device

The Enphase IQ System Controller 3 connects the home to grid power, IQ Batteries, and solar PV with Microinverters.
Use IQ System Controller 3 for all new installs using IQ8 Series Microinverters.
IQ System Controller 3 provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV, storage by providing a consistent, pre-wired solution for residential applications.
DOES NOT support Generator Integration

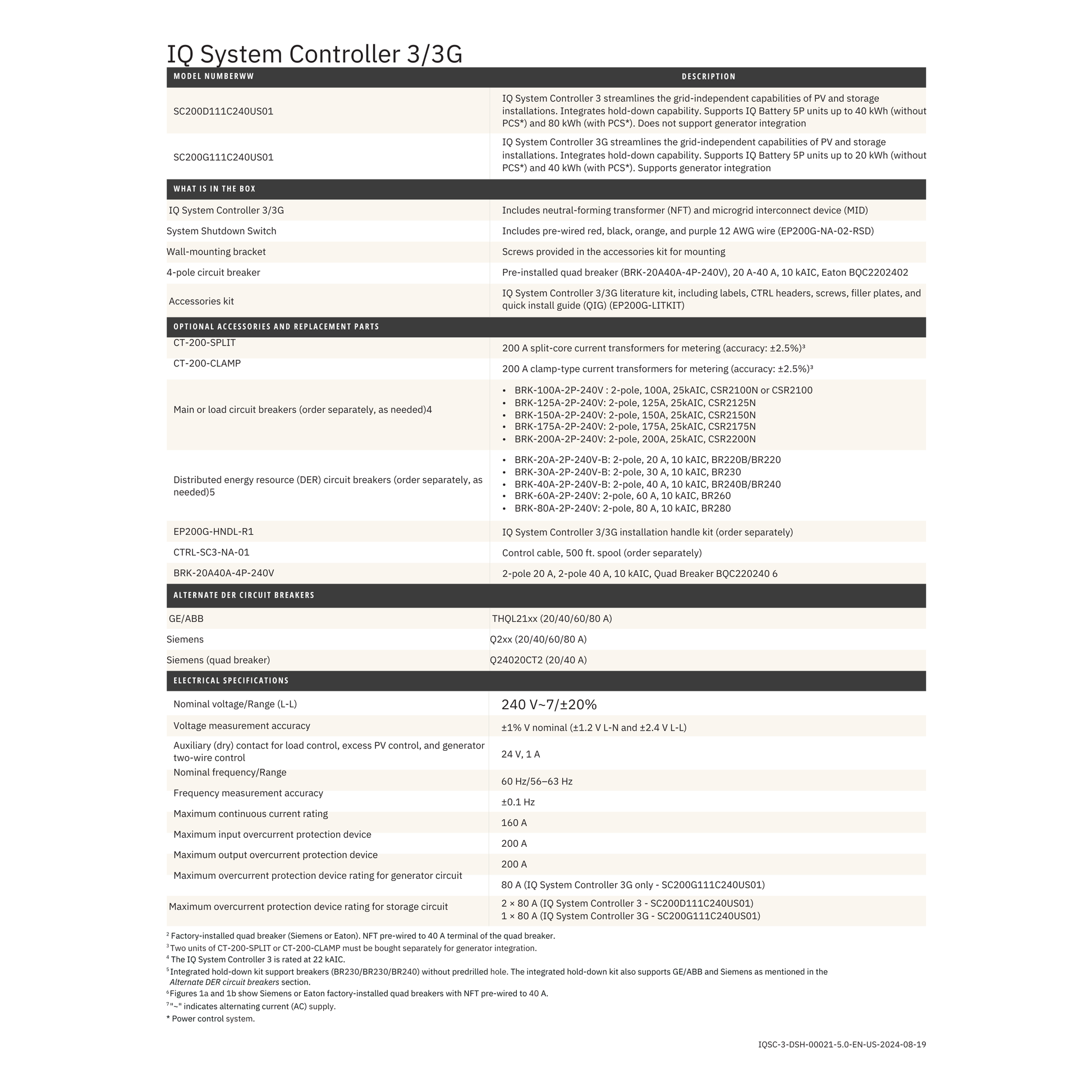

Technical Specification

• SKU: 580-0001
• Manufacturer Part #: SC200D111C240US01
• Item Weight: 87 lb
• Dimensions (LxWxH): 23.2 x 39 x 13 inches
• 10-year limited warranty
• Controls safe connectivity to the grid
• Automatically detects grid outages
• Provides seamless transition to backup
• Uses control cable for wired communication
• Connects to the load or service equipment side of the main load panel
• Centered mounting brackets support single-stud mounting
• Supports conduit entry from the bottom, bottom left and bottom right
• Enables backup for solar and solar + battery configurations
• Includes neutral-forming transformer for split phase 120/240 V backup operation
• System Shutdown Switch to disconnect PV, battery, and generator systems
• When paired with a dedicated IQ Load Controller, homeowners have the ability to prioritize and direct power to critical loads in the event of a grid outage
• Integrates hold-down functionality to eliminate the need for hold-down kits and special breakers
• Power Control System ( PCS) feature to control solar and storage operation based on Main panel rating
