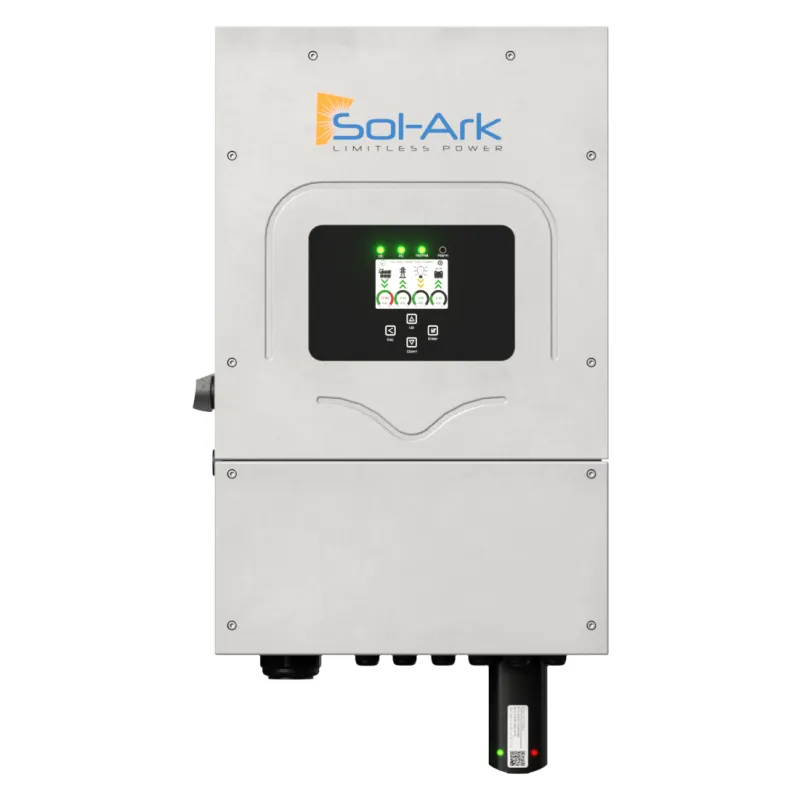

Sol-Ark-8K Hybrid Inverter (SA-8K-2P)

Sol-Ark 8K-2P Hybrid Inverter System

Sol-Ark 8K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

Features

• Simple to install with touchscreen interface
• Grid Tied Mode: Sell your power to reduce electric bill
• Meter Zero Mode: Zero your electric bill without a smart meter
• Time of Use: Use solar and batteries to minimize grid power usage
• Programmable Smart Load Mode
• DC and AC Coupling
• Works with a wide range of battery chemistries- Lead acid to Lithium

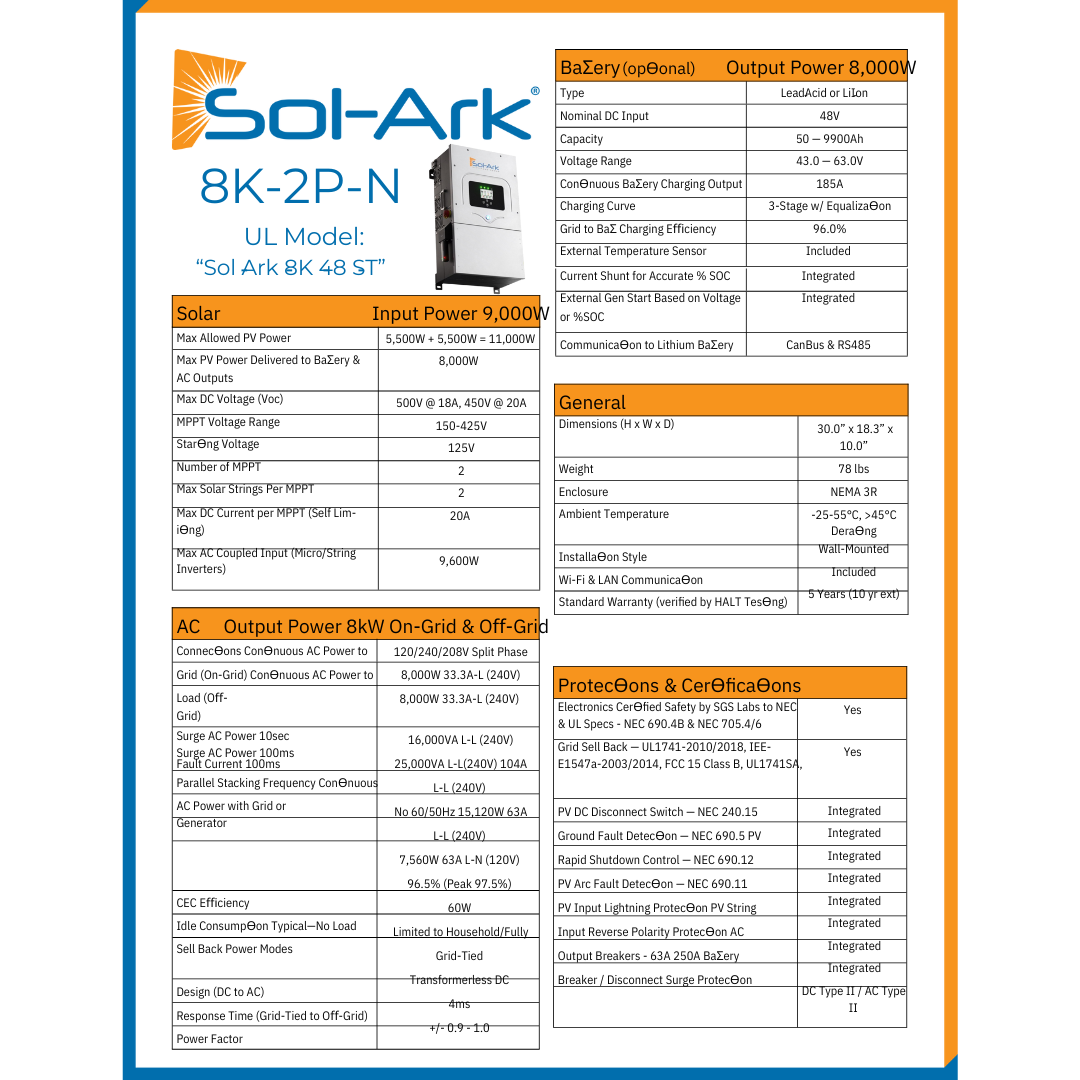

Technical Specifications:

• Max. Allowed PV Power (STC): 11,000W
• Nominal Voltage Range: 175 – 425V
• Startup Voltage: 125V
• Max. Input Voltage: 500V
• Max. Input Current per MPPT: 18A (self-limiting)
• No. of MPP Trackers: 2
• No. of PV Strings per MPPT: 2
• Max. AC Coupled Input: 9,600W
• Nominal AC Voltage: 120/240V, 120/208V, 220V
• Grid Frequency: 50 / 60Hz
• Real Power, max continuous: 8,000W
• Max. Output Current: 33A
• Peak Apparent Power (10s, off-grid): 16,000VA @ 240V
• Peak Apparent Power (100ms, off-grid): 25,000VA @ 240V
• Max Output Fault Current (100ms): 104A
• Max. Grid Passthrough Current: 63A
• Power Factor Output Range: +/- 0.9 adjustable
• Backup Transfer Time: 4ms
• CEC Efficiency: 96.5%
• Max Efficiency: 97.5%
• Design (DC to AC): Transformerless DC
• Stackable: No
• Battery Technologies: Lithium / Lead Acid
• Nominal DC Voltage: 48V
• Operating Voltage Range: 43 – 63V
• Capacity: 50 — 9900Ah
• Max. Battery Charge / Discharge Current: 185A
• Charging Controller: 3-Stage with Equalization
• Grid to Battery Charging Efficiency: 96.0%
• External Temperature Sensor: Included
• Current Shunt for Accurate % SOC: Integrated
• Automatic Generator Start: Integrated
• Communication to Lithium: CANBus & RS485
• Dimensions (H x W x D): 750 x 450 x 254 mm / 29.5 x 17.7 x 10 in
• Weight: 35.4 kg / 78 lb.
• Enclosure: IP65 / NEMA 3RAmbient Temperature: -25~55°C, > 45°C Derating
• Idle consumption – No Load: 60W
