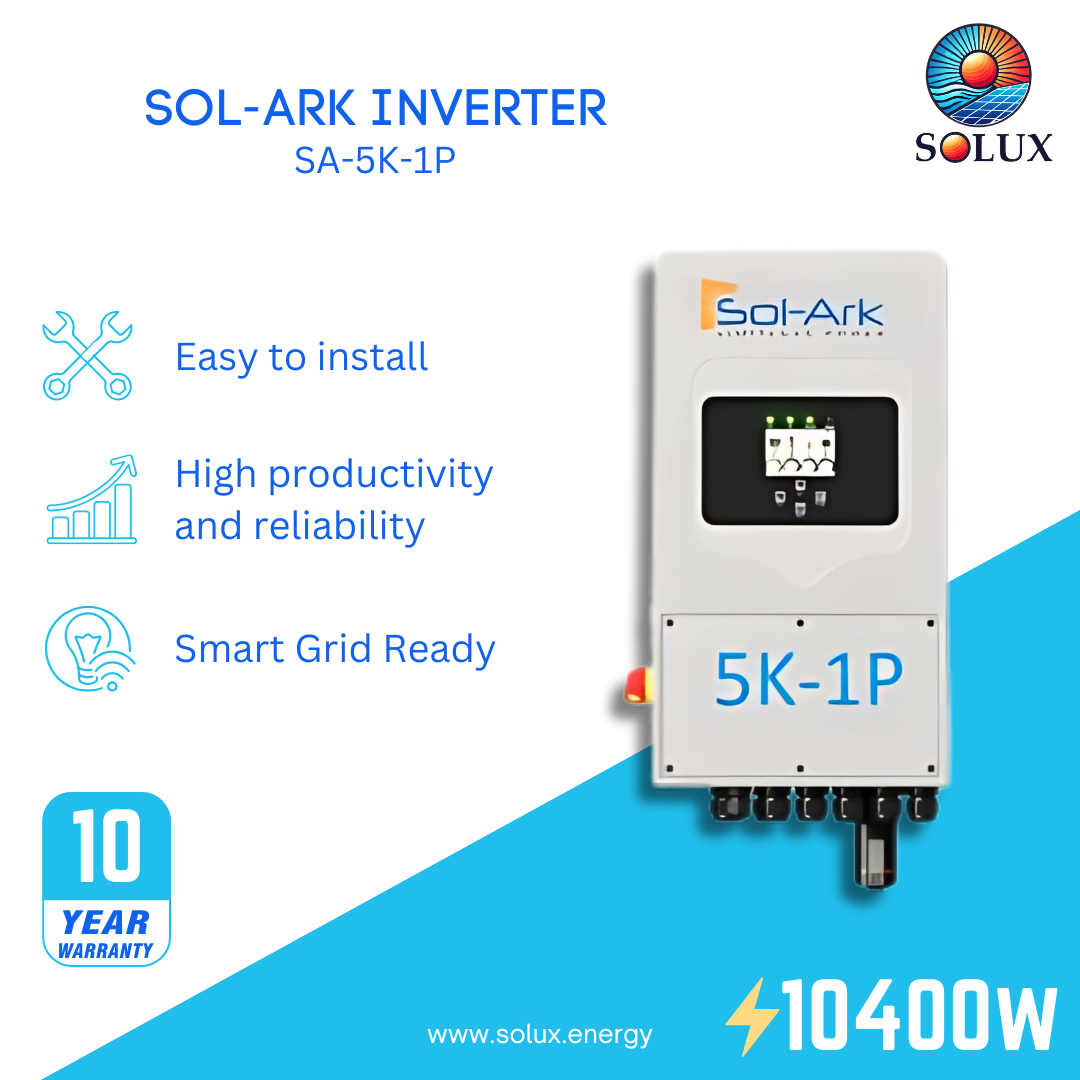

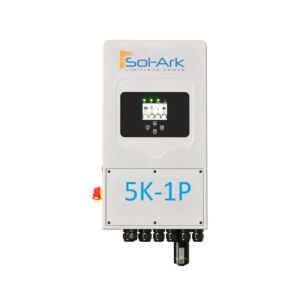

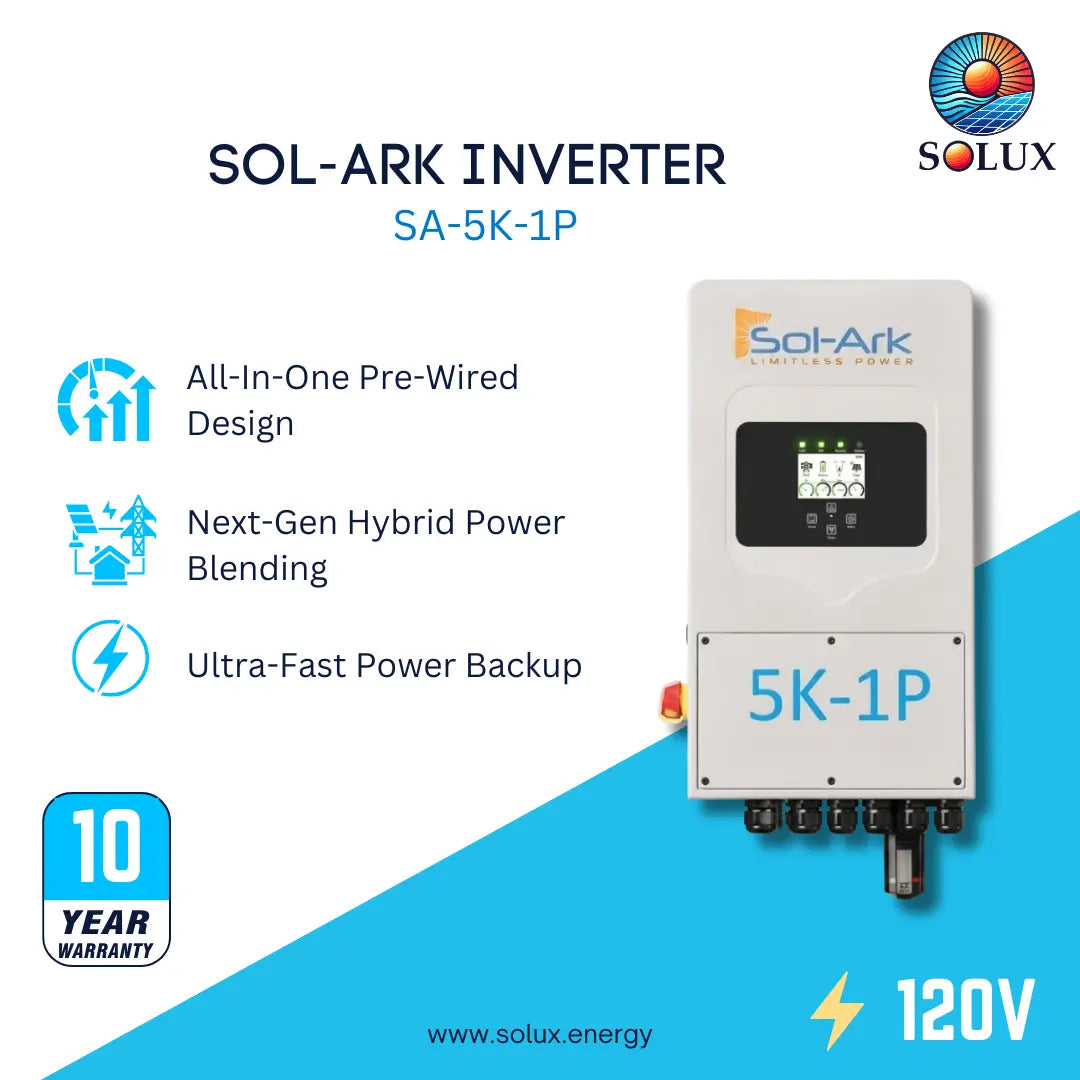

Sol-Ark 5kW Inverter 120VAC, 48VDC, Indoor/Outdoor NEMA-3R (SA-5K-1P )

Sol-Ark 5K-1P Pre-wired Hybrid Inverter System

Simple to install with touchscreen interface
Grid Tied Mode: Sell your power to reduce electric bill
Meter Zero Mode: Zero your electric bill without a smart meter
Time of Use: Use solar and batteries to minimize grid power usage
Programmable Smart Load Mode
DC and AC Coupling
Works with a wide range of battery chemistries - Lead acid to Lithium

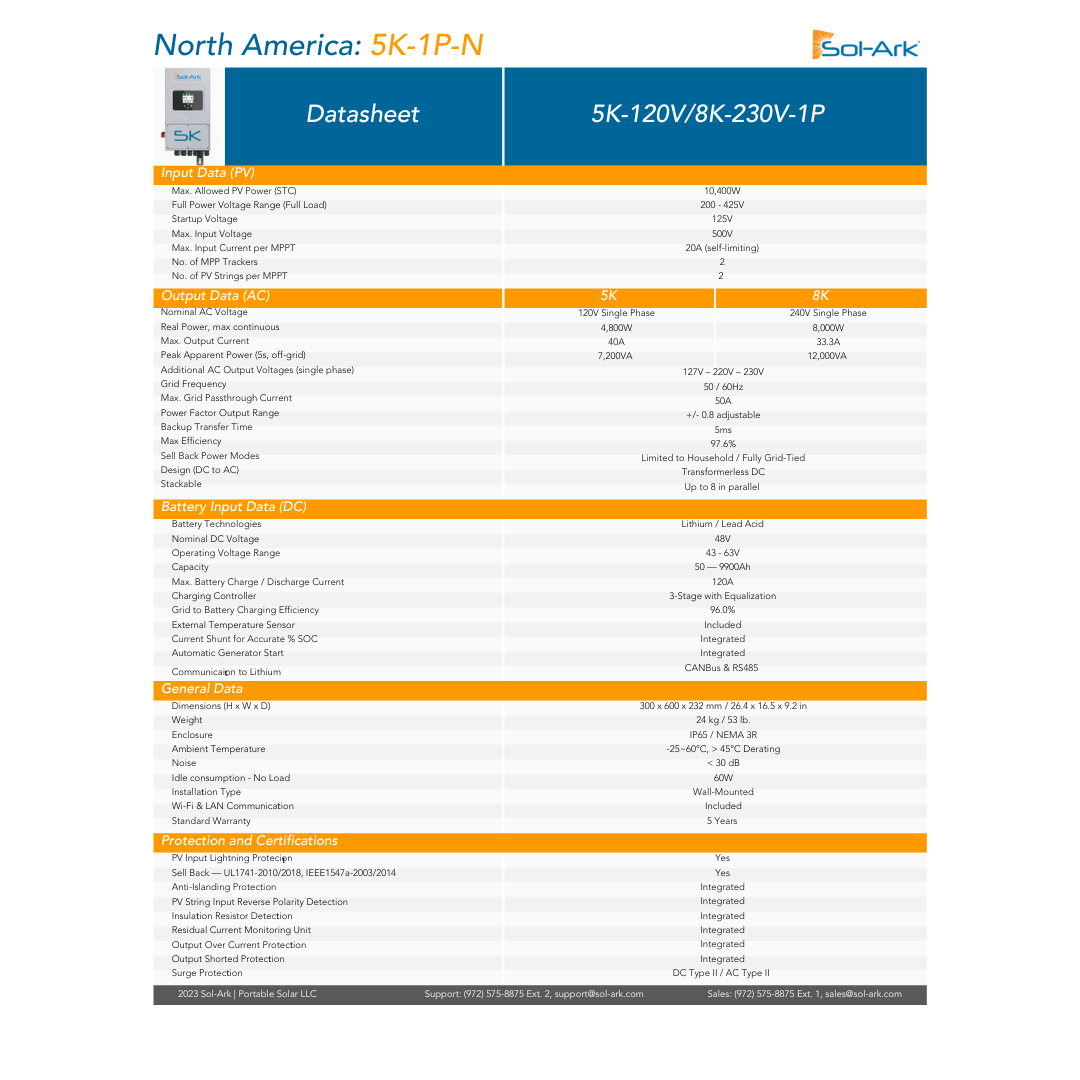

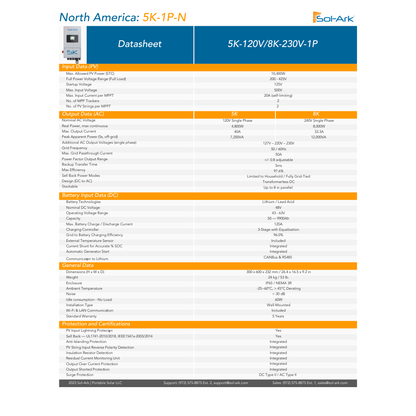

Technical Specifications:

• AC Voltage: 120V single phase
• AC frequency: 60/50 Hz
• Max allowed PV power: 10,400 Watts
• MPPT Voltage range: 125-425V
• PV input Voltage: 370V (100~500V)
• PV input current: 20A + 20A
• Rated AC output: 4,800 Watt
• Inverter efficiency: 97.6%
• Weight: 51 lbs
• Dimensions (H x W x D): 22.8" x 13.0" x 9.1"
