Description

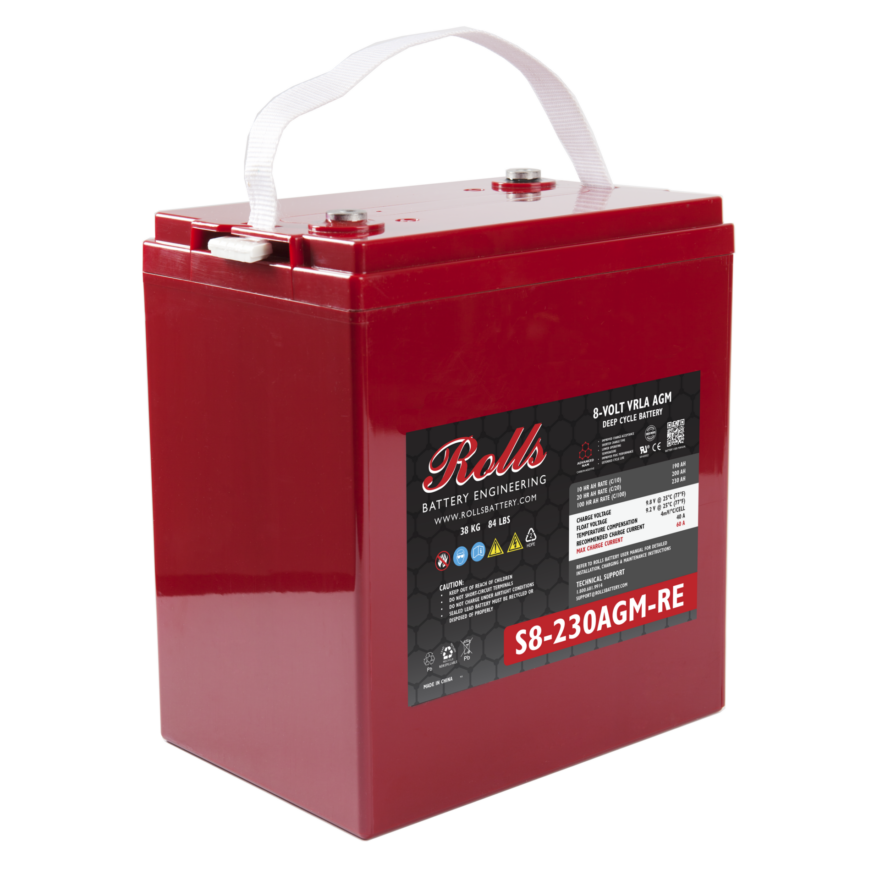

Rolls Surrette Battery S8-230AGM-RE
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 38 kg / 84 lbs
- Length: 260 mm / 10.24"
- Width: 182 mm / 7.17"
- Height Incl. Term. 300 mm: 11.81"
- Container: ABS
- Cover: ABS
- Handles: Nylon Strap
- Series: AGM-S
- Volts: 8
- Design: GC8T
- Cells: 4
- Terminal Type: F14(M8) and TP08 Adapter [+21mm]
- Included Hardware: M8 stainless bolts & washers & TP08 adapter
- Size & Thread: M8
- Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
- Recommended Charge Current: 40 A
- Maximum Charge Current: 60 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Internal Resistance: 3 mΩ
- Cold Crank Amps (CCA) 0°F / -18°C: 700
- Capacity AMP @ 20 Hour Rate: 200 Ah
-
Downloads

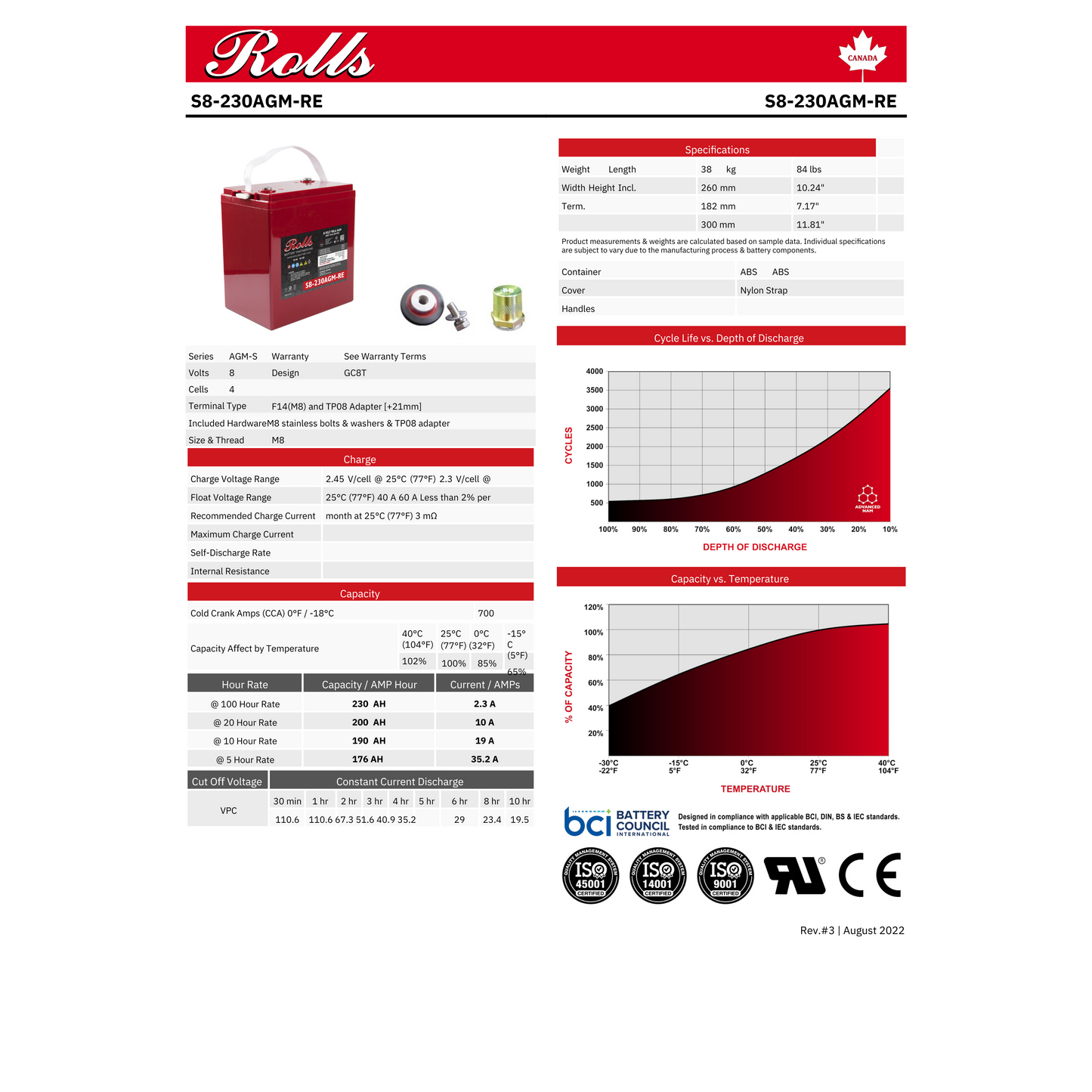

Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
See warranty terms.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
