Description

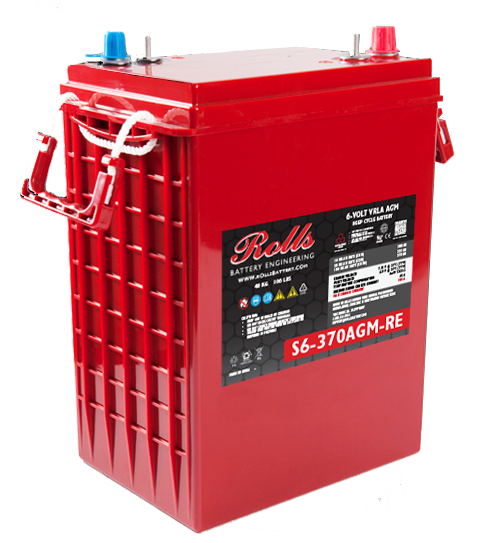

Rolls Surrette Battery S6-370AGM-RE
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 48 kg / 106 lbs
- Length: 295 mm / 11.61"
- Width: 180 mm / 7.09"
- Height Incl. Term.: 365 mm / 14.37"
- Container: ABS
- Cover: ABS
- Handles: Rope / Plastic Handle
- Series: AGM-S
- Volts: 6
- Design: J305
- Cells: 3
- Terminal Type: F22
- Included Hardware: M8 stainless bolts & washers
- Size & Thread: M8
- Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
- Recommended Charge Current: 65 A
- Maximum Charge Current: 100 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Internal Resistance: 1.6 mΩ
- Cold Crank Amps (CCA) 0°F / -18°C: 1300
- Marine Crank Amps (MCA) 32°F / 0°C: 1560
- Reserve Capacity (RC @ 25A): 751Minutes
- Reserve Capacity (RC @ 75A): 184 Minutes
- Capacity AMP @ 20 Hour Rate: 335 Ah
-
Downloads

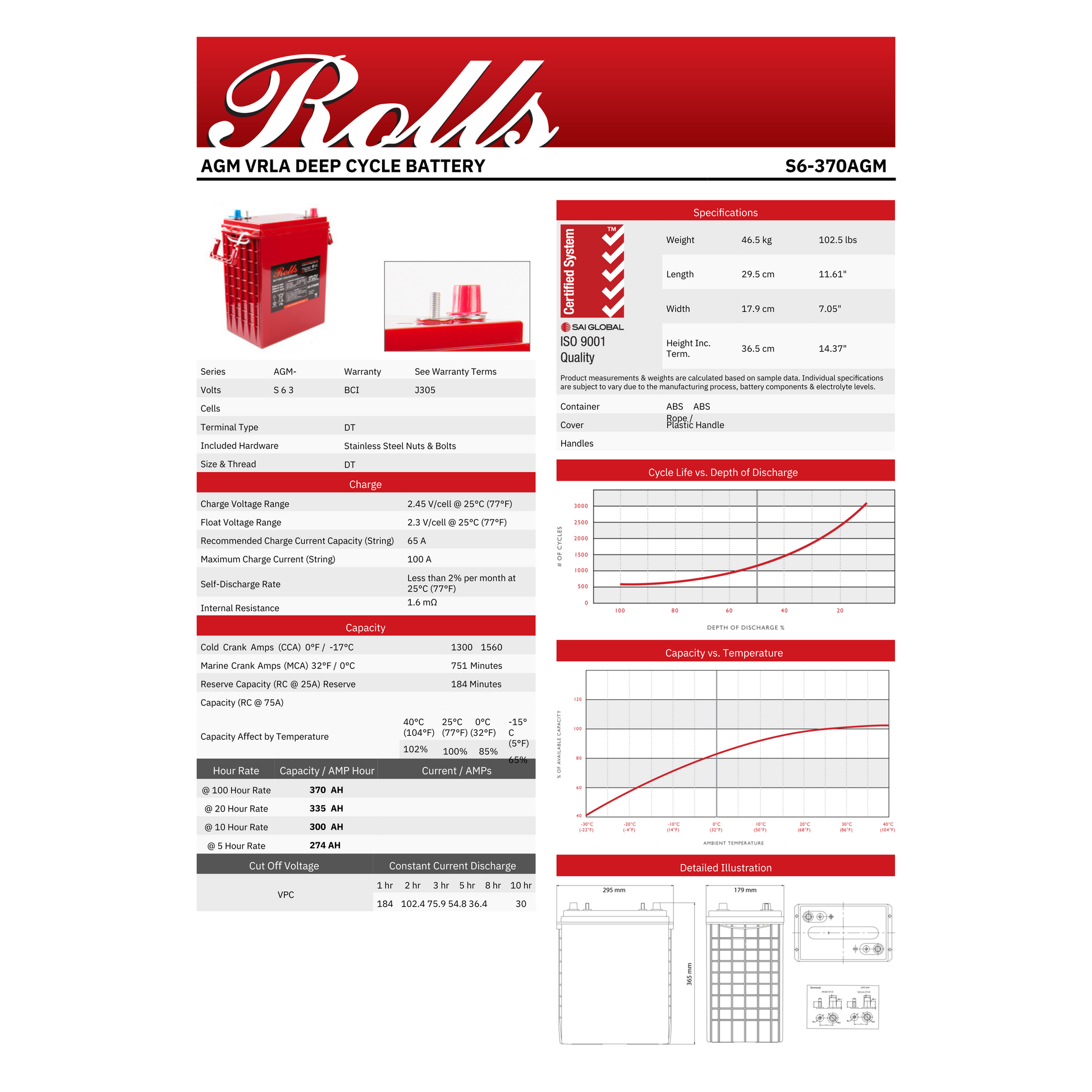

Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
5 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
