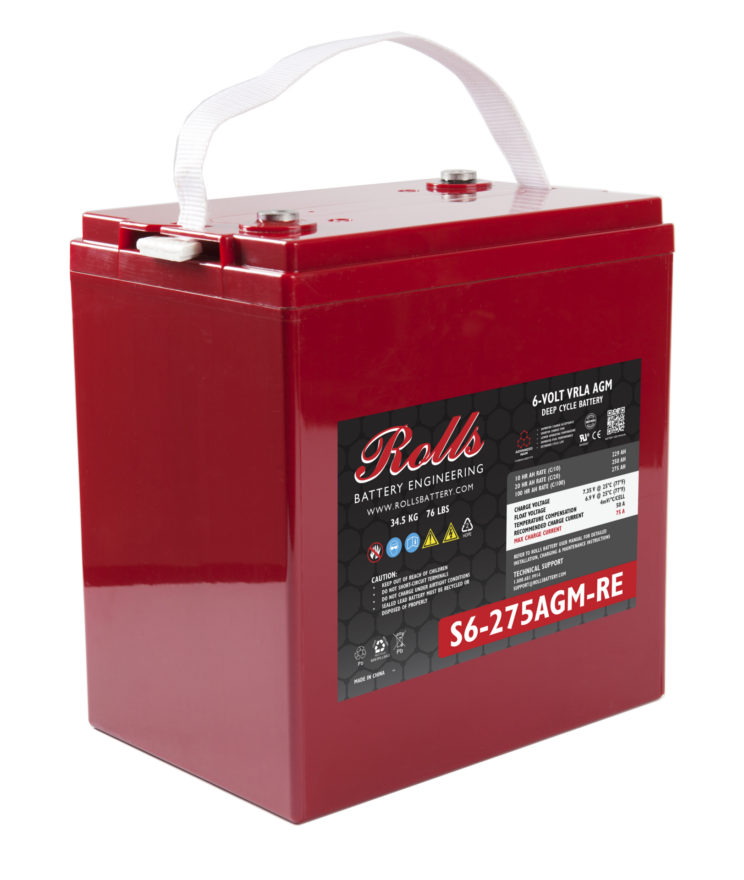

Rolls Surrette S6-275AGM 6VDC 250Ah AGM Deep Cycle Battery

Rolls Surrette Battery S6-275AGM-RE

The Rolls Surrette S6-275AGM-RE (also commonly identified as the S6-275AGM) is a premium, maintenance-free AGM battery specifically engineered for the high-cycle demands of renewable energy and off-grid solar systems. The "-RE" designation signifies its optimization for solar and wind discharge cycles, offering superior longevity compared to standard deep-cycle batteries.

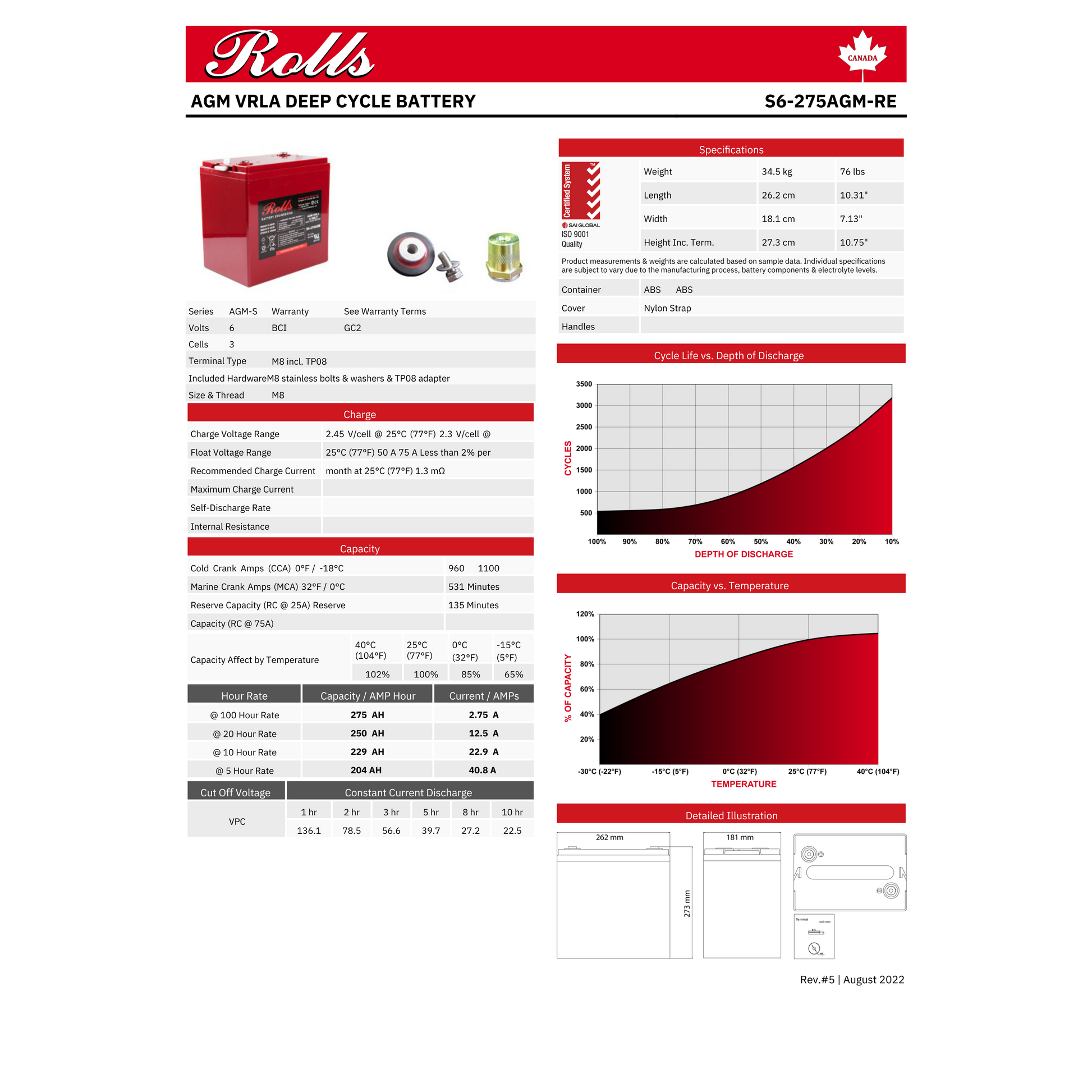

Technical Specifications:

• Weight: 34.5 kg / 76 lbs
• Length: 260 mm / 10.24"
• Width: 180 mm / 7.09"
• Height Incl. Term.: 268 mm / 10.55" (Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components)
• Container: ABS
• Cover: ABS
• Handles: Nylon Strap
• Series: AGM-S
• Volts: 6
• Design: GC2H
• Cells: 3
• Terminal Type: F14(M8) and TP08 Adapter [+21mm]
• Included Hardware: M8 stainless bolts & washers & TP08 adapter
• Size & Thread: M8
• Charge Voltage Range: 2.45 V/cell @ 25°C (77°F)
• Float Voltage Range: 2.3 V/cell @ 25°C (77°F)
• Recommended Charge Current: 50 A
• Maximum Charge Current: 75 A
• Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
• Internal Resistance: 1.3 mΩ
• Cold Crank Amps (CCA) 0°F / -18°C: 960
• Marine Crank Amps (MCA) 32°F / 0°C: 1100
• Reserve Capacity (RC @ 25A): 531 Minutes
• Reserve Capacity (RC @ 75A): 135 Minutes
• Capacity AMP @ 20 Hour Rate: 250 Ah
