SolarEdge Power Optimizer 500W/ 60V

SolarEdge Power Optimizer 500W/ 60V

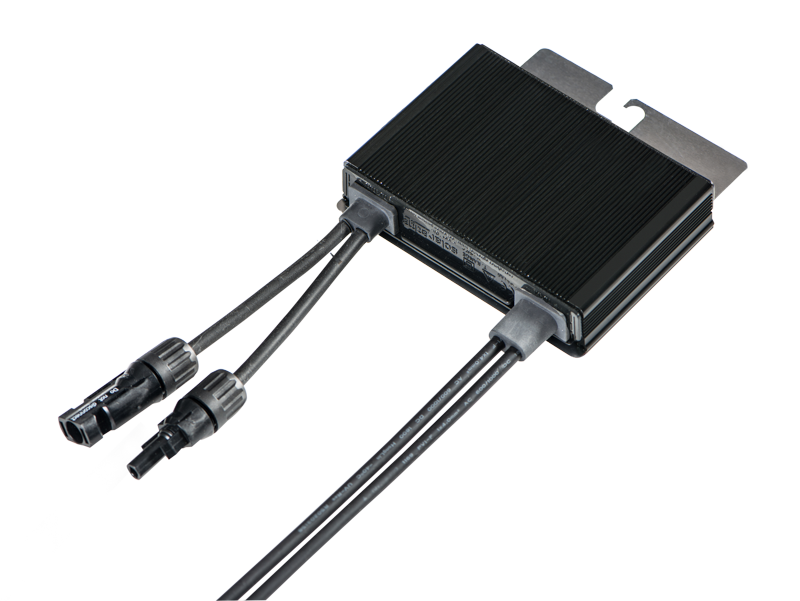

Boost your solar system’s efficiency and safety with the SolarEdge S500. This compact device attaches to each solar panel, turning it into a "smart module" that produces the maximum amount of energy possible, even if other panels are shaded or dirty.

Simple, fast installation and fully compatible with thousands of different inverter models. Upgrade your home with a reliable solar optimizer for efficient, dependable solar power.

• Maximum Energy Gain: Individual panel tracking ensures that shade on one panel doesn't slow down the rest of your system.
• Advanced Safety: Features Sense Connect technology, which monitors for connector overheating to prevent electrical issues before they start.
• Automatic Protection: Includes SafeDC™ to automatically drop high voltage to a safe level (1V) whenever the inverter is turned off.
• Real-Time Tracking: View the performance of every single panel through the mySolarEdge app

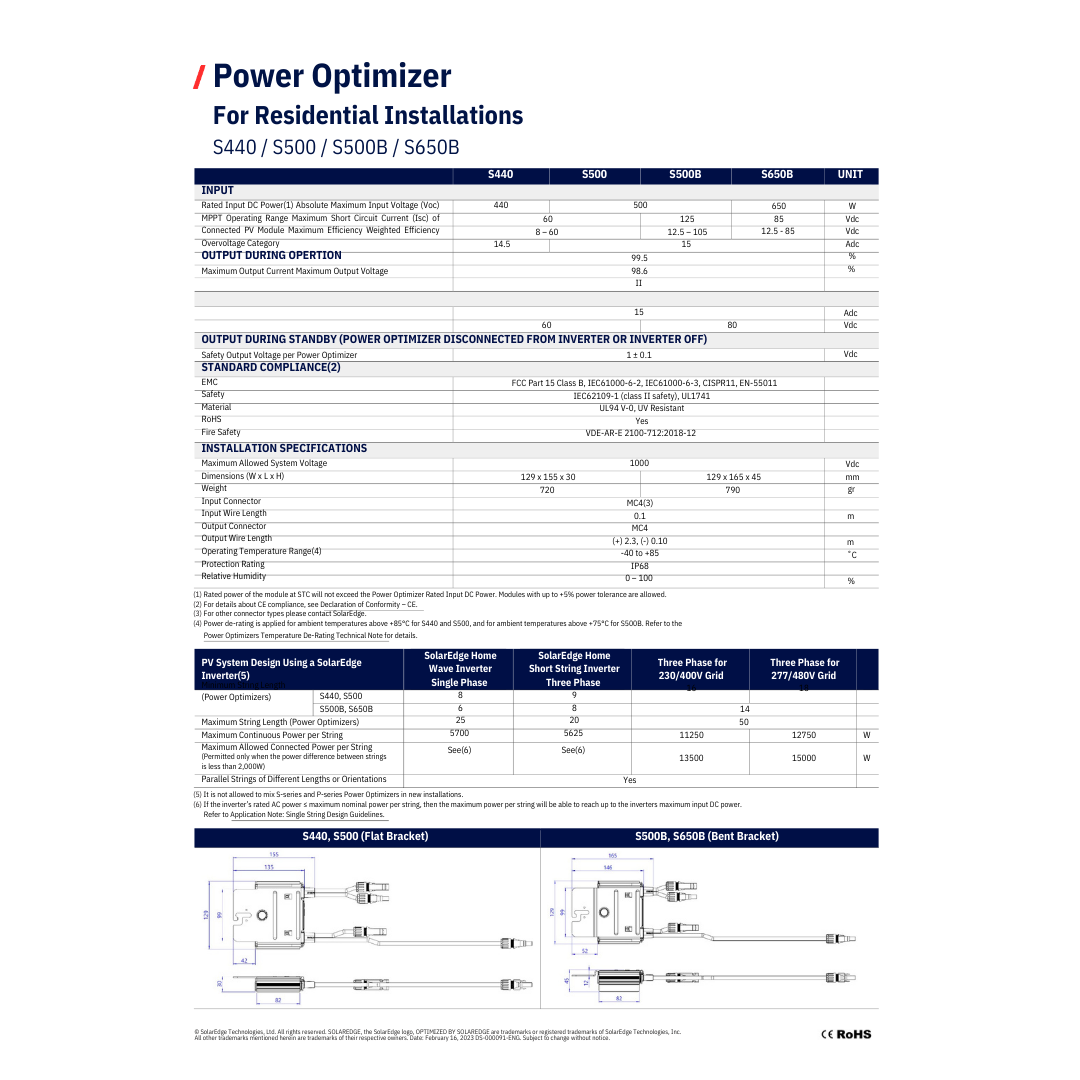

SolarEdge S500 Spec Sheet & Performance Data

For engineers and designers requiring the full SolarEdge optimizer spec sheet, here are the core electrical and mechanical metrics:

• Power Output: 500 Watts
• Manufacturer Warranty: 25 Years
• Shipping Weight: 1.75 lb
• Shipping Dimensions: 6 x 7 x 2 in
• Case Qty: 20
• Pallet Qty: 840
• Rated Input DC Power(1): 500W
• Absolute Maximum Input Voltage (Voc): 60Vdc
• MPPT Operating Range: 8 – 60VdcVdc
• Maximum Short Circuit Current (Isc) of Connected PV Module: 15 Adc
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.6%
• Maximum Output Current: 15 Adc
• liMaximum Output Voltage: 60 Vdc
• Dimensions (W x L x H) : 129 x 155 x 30 mm
• Weight: 1.75lbs
